Overview

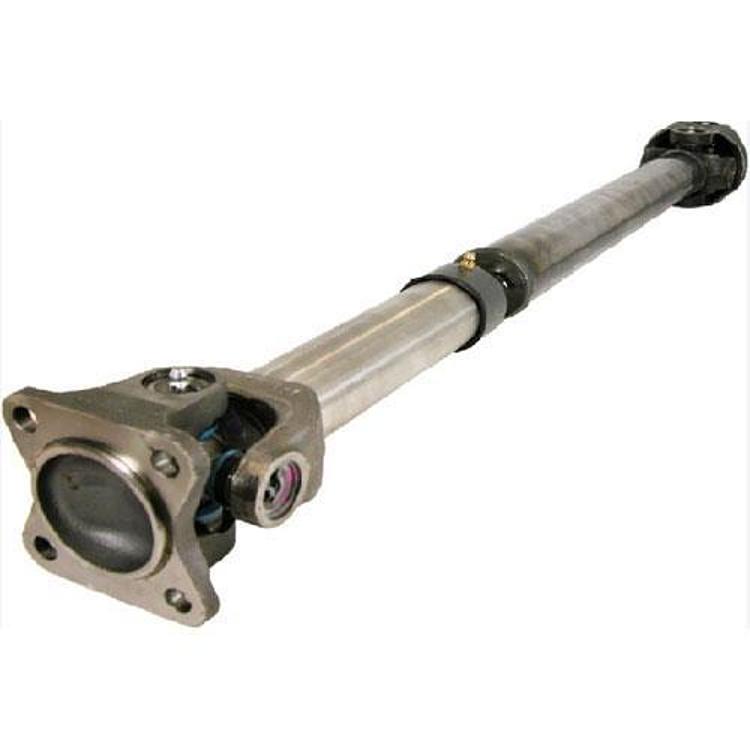

The Dana Spicer Performance Front Driveshaft with Flanged Yoke, part number 10020345, is a front driveshaft built for the Jeep Wrangler JK, with two- and four-door models listed. It bolts to the factory differential yoke and includes the transfer case flanged yoke the setup requires.
The tubes are 50 percent thicker than original equipment for added strength, and the small diameter design gives extra exhaust clearance.
Key features
- Tubes 50 percent thicker than factory for added strength
- Small diameter design for additional exhaust clearance
- Bolts to the factory differential yoke
- Required transfer case flanged yoke included
Front driveshaft installation tips
A front driveshaft sits between the transfer case and the front differential, so its angles change with suspension travel and steering. Before pulling the old shaft, check the transfer case output yoke for wear and the front pinion seal for leaks. Replacing a worn yoke at the same time prevents a new shaft from carrying an old fault.
Thicker tubing adds strength at the cost of added rotating weight, so balance and runout matter. Smaller diameter tubing helps with tire and exhaust clearance in tight spots. After installation, check the bolt torque at both ends and inspect the U-joints after the first few trail runs.
- Check transfer case output yoke wear
- Inspect the front pinion seal for leaks
- Re-torque yoke bolts after the first drive
- Confirm clearance at full steering lock
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 10020345 |
| UPC | 23913454630 |
| Position | Front |
| Tube wall | 50 percent thicker than factory |
| Tube diameter | Small diameter design |
| Yoke | Flanged, bolts to factory differential yoke |
| Body style | 2 and 4-door |
Vehicle fitment
It is a front driveshaft for the Jeep Wrangler JK (2007-2018), in two- and four-door models.
It is a universal fit part, so confirm your year, model and trim before ordering. Other Wrangler generations fall outside this shaft’s fit.
Installation notes
The shaft bolts to the factory differential yoke, and the required transfer case flanged yoke is supplied with it.
What’s included
The front driveshaft with flanged yoke and the required transfer case flanged yoke.
