G2 Double Cardan CV Style Rear Drive Shaft – 92-2052-7

G2 Axle and Gear

Shop Jeep Wrangler JK Drive Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Built for the Jeep Wrangler JK (2007-2018)
  • Double cardan CV style rear drive shaft, part number 92-2052-7
  • Heavy duty D.O.M. tubing with solid body 1350 U-joints, dynamically balanced
  • Recommended for stock to 6 inch lift, tires up to 37 inches

Description

Overview

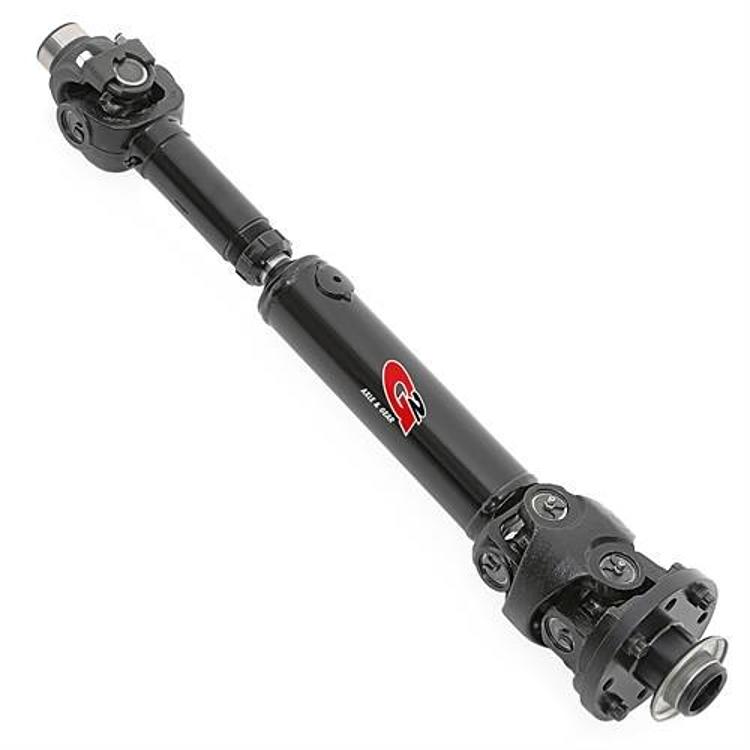

The G2 Axle and Gear 92-2052-7 is a heavy duty double cardan CV style rear drive shaft for the Jeep Wrangler JK. G2 Axle and Gear offers it as a replacement shaft for JK models with an automatic transmission, and recommends it for stock to 6 inch lift setups.

The shaft is built from heavy duty D.O.M. tubing and uses solid body U-joints in a 1350 size. Each unit is dynamically balanced to help eliminate vibration. Tire clearance is up to 37 inches.

Key features

  • Heavy duty D.O.M. tubing for strength

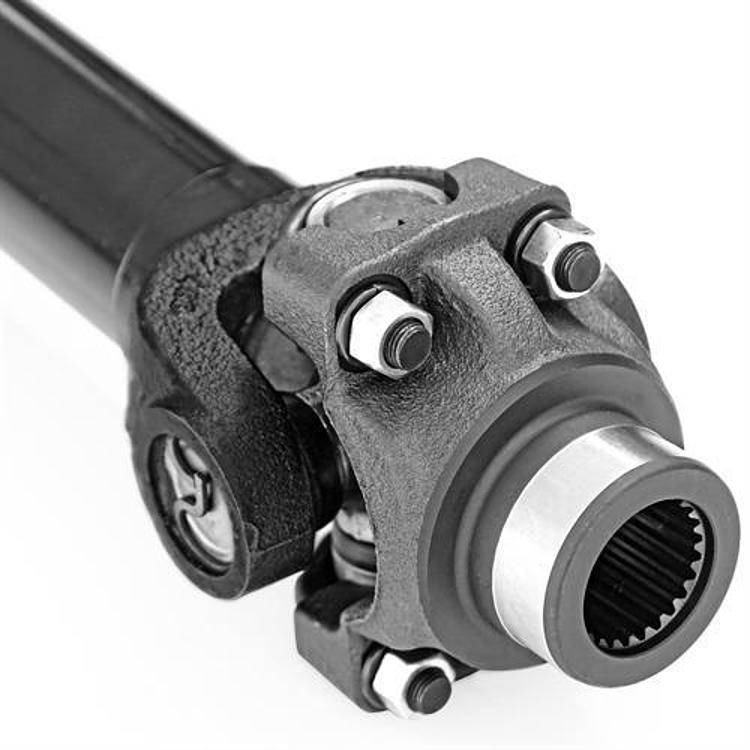

  • Solid body U-joints for durability
  • Double cardan CV style joints
  • Dynamically balanced, which G2 says eliminates vibration
  • Recommended for stock to 6 inch lift
  • Tire clearance noted up to 37 inches
  • Rear position for JK models

Planning a lift and tire setup

Lift height changes driveline angles, and larger tires add load and rotational weight to the drivetrain. Both can shift how the rear shaft works, so the lift and tire size should be settled before the shaft is measured and fitted. Replacing a shaft during a lift is common because the old one was set for stock geometry.

Related parts are often replaced at the same time. Lift springs, extended brake lines and a new pinion flange bolt set can all change the driveline, so review them together. Keep a record of the shaft length you installed in case future lifts require a different length.

  • Measure driveline angles after the lift is complete
  • Check transfer case output and rear pinion alignment
  • Inspect the rear U-joints when changing tire size

Specifications

Brand G2 Axle and Gear
Part number 92-2052-7
UPC 92205270005
Position Rear
Drive shaft type Double cardan CV
U-joint size 1350
Tubing Heavy duty D.O.M.
Balance Dynamically balanced
Lift height maximum 6 inches
Maximum tire size 37 inches
Transmission Automatic
Body 2-door models

Vehicle fitment

It fits the Jeep Wrangler JK from 2007 to 2018, in 2-door models with an automatic transmission.

The rear extended-length CV shaft is Universal Fit and needs no slip yoke eliminator. Check shaft length and transmission type against your vehicle before choosing this part.

It is not made for the Wrangler YJ, TJ or LJ, the JL generation, the Gladiator, or the Cherokee and Grand Cherokee. Check your year, model and trim against the fit before buying.

Installation notes

Lift height changes driveline angles, so measure the angles after fitting the shaft to a lifted Wrangler. The fitment chart flags which lengths need a slip yoke eliminator, so confirm that before installation.

What’s included

The shaft itself is the only item included. Verify it against your installation plan before starting.

SKU: G/292-2052-7 Category:

Specification

Shipping weight 35.00 lbs
Package dimensions 48.00 × 10.00 × 10.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G2 92-2052-7 fit a 2007-2018 Jeep Wrangler JK?

Yes. It is built for the Jeep Wrangler JK from 2007 to 2018, with 2-door models and automatic transmissions. Confirm both match your vehicle before installing.

What lift height does the 92-2052-7 suit?

It is recommended for stock to 6 inch lift, with a maximum lift height of 6 inches. Tires up to 37 inches are the stated limit, so larger tires or taller lifts fall outside that use.

What is the U-joint size and construction?

The U-joint size is 1350 and the shaft uses solid body U-joints. It is built from heavy duty D.O.M. tubing and is dynamically balanced.

Does the 92-2052-7 include a slip yoke eliminator?

No slip yoke eliminator is included with the shaft. Some rear shaft lengths need one while the extended-length CV shaft does not, so confirm the length for your vehicle before installing.

Do I need a new driveshaft when I add a lift?

Not always. Lift height changes the driveline angle, so measure the angles after the lift is installed. A shaft that worked at stock height may need replacing if the angles exceed what the joints tolerate or if vibration continues after the lift.
