G2 Double Cardan CV Style Rear Drive Shaft – 92-2052-4

G2 Axle and Gear

Shop Jeep Wrangler JK Drive Shafts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear Double Cardan CV drive shaft for four-door Jeep Wrangler JK models
  • Part number 92-2052-4, 1350 U-joint
  • Rated for stock to 6 inch lift and tires up to 37 inches
  • Heavy duty D.O.M. tubing with solid body U-joints

Description

Overview

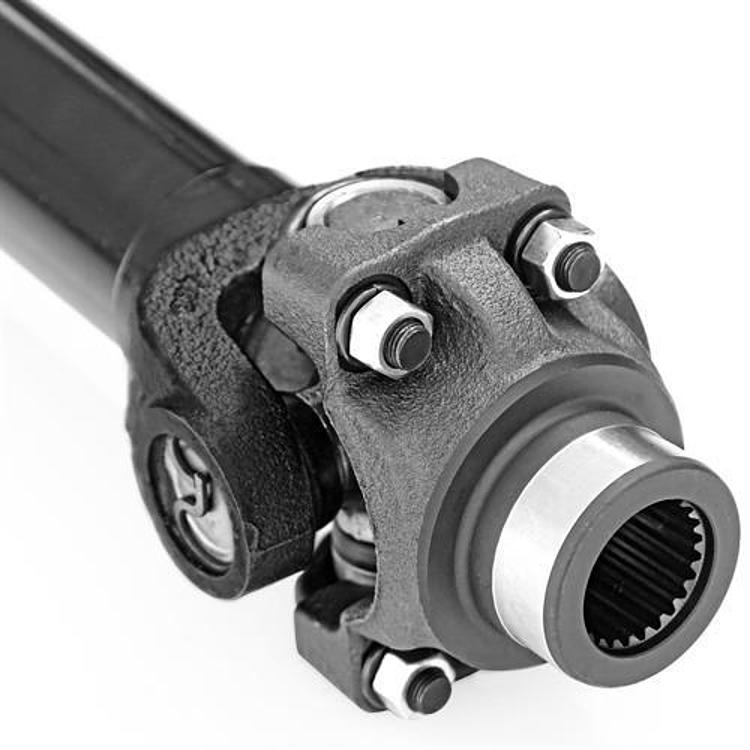

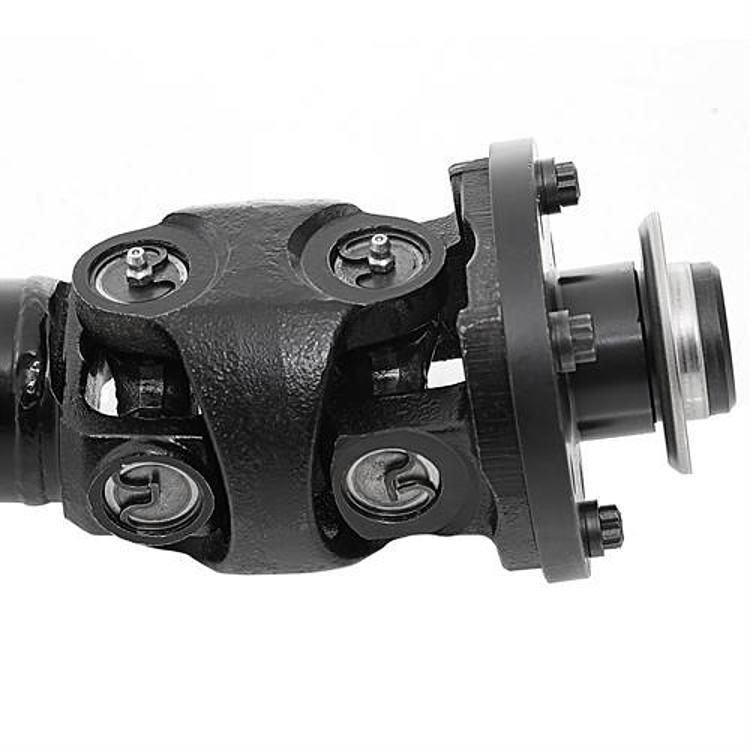

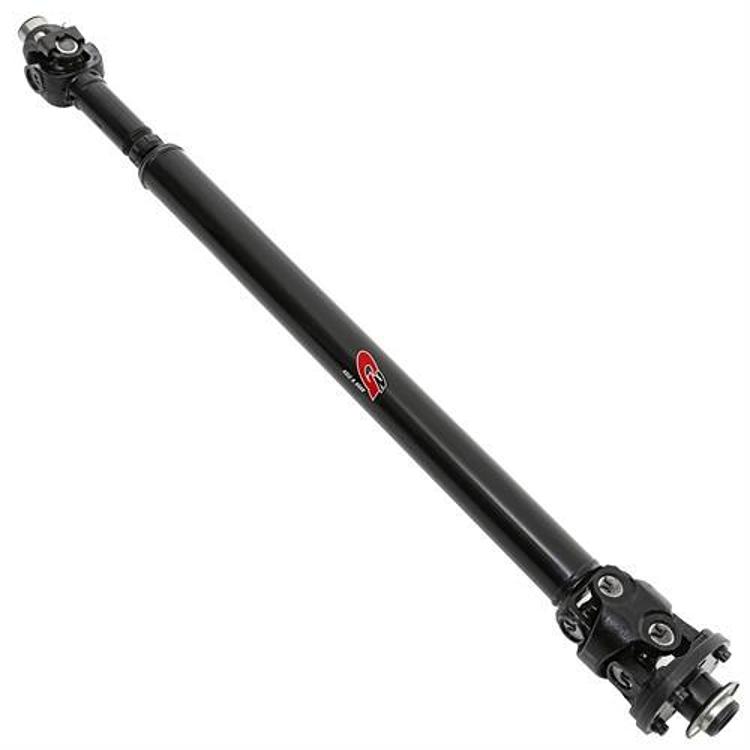

The G2 Axle and Gear Double Cardan CV Style Rear Drive Shaft, part number 92-2052-4, is a heavy duty replacement rear driveshaft for four-door Jeep Wrangler JK models with an automatic transmission. G2 Axle and Gear offers it as a rear replacement for the JK models with a stock to 6 inch lift.

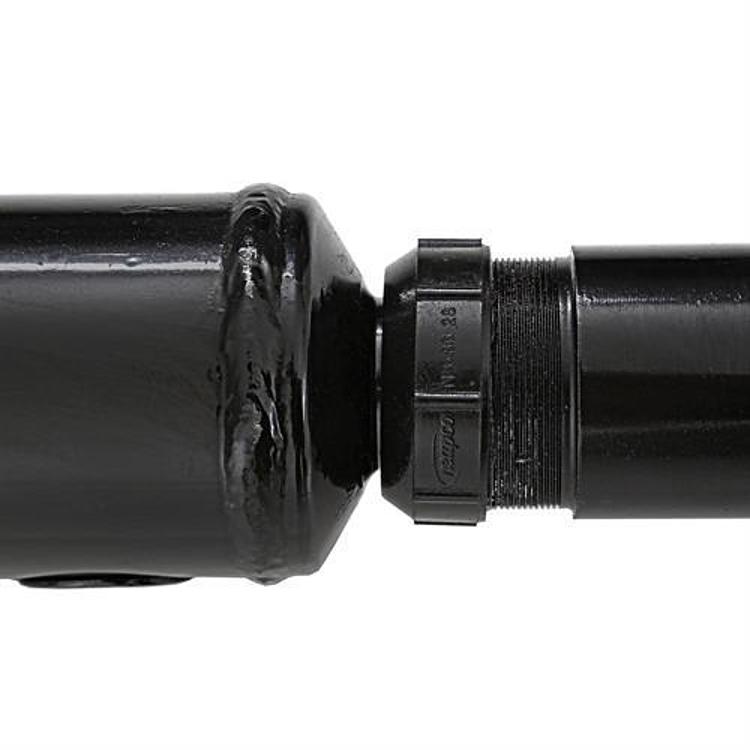

The shaft is built from heavy duty D.O.M. tubing, uses solid body U-joints for durability, and is dynamically balanced to reduce vibration. The rating covers stock height up to a 6 inch lift and tires up to 37 inches.

Key features

  • Heavy duty D.O.M. tubing for strength
  • Solid body U-joints for durability
  • Dynamically balanced to eliminate vibration
  • Double Cardan CV style driveshaft type
  • Rated for stock to 6 inch lift
  • Rated for tires up to 37 inches

Driveline wear and inspection

A driveshaft carries engine torque from the transmission and transfer case to the rear axle, and its joints must allow the driveline to flex through changing angles. Double cardan CV joints are used where angles change, which is common on a lifted Wrangler. Worn joints usually show up as a clunk when shifting between drive and reverse, vibration that rises with road speed, or grease leaking from the cap seals.

Because this shaft bolts to the rear axle pinion, check the pinion yoke and flange bolts at the same time. Loose hardware produces vibration that is easy to mistake for a bad shaft. After rock crawling or striking an obstacle, inspect the tube for dents, since even a small dent can upset balance.

  • Check each joint for play by hand with the vehicle safely supported
  • Re-check yoke and flange bolts after the first few trail runs
  • Note any vibration that changes with speed or throttle

Specifications

Brand G2 Axle and Gear
Part number 92-2052-4
UPC 92205240008
Position Rear
Driveshaft type Double Cardan CV
U-joint 1350
Tubing Heavy duty D.O.M.
Maximum lift height 6 inches
Tire size Up to 37 inches
Body style 4-door
Transmission Automatic

Vehicle fitment

This rear shaft fits four-door Jeep Wrangler JK models (2007-2018) with an automatic transmission.

Two-door JK models use a separate rear shaft in this line, part 92-2052-7. Other Wrangler generations, such as the TJ and JL, are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The fitment table marks this rear shaft as not requiring a slip yoke eliminator. After any lift, check driveline angles and vibration, since the rating covers up to a 6 inch lift.

What’s included

One rear Double Cardan CV drive shaft assembly. Compare the delivered parts with your installation plan before starting.

SKU: G/292-2052-4 Category:

Specification

Shipping weight 35.00 lbs
Package dimensions 48.00 × 10.00 × 10.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 92-2052-4 fit a two-door Jeep Wrangler JK?

No. The 92-2052-4 is for four-door models with an automatic transmission. The two-door rear shafts in this G2 line are 92-2052-3 and 92-2052-7, so check your body style before choosing.

What lift height and tire size is this rear shaft rated for?

It is rated for stock to 6 inch lift, with a maximum lift height of 6 inches, and for tires up to 37 inches. Compare those figures with your current lift and tire size before you install it.

Does this rear shaft need a slip yoke eliminator?

No. The fitment table marks this rear Double Cardan CV shaft as not requiring a slip yoke eliminator. Its U-joint is a 1350 size.

How can I tell if the rear driveshaft U-joints are worn?

Look for a clunk when shifting from drive to reverse, vibration that rises with road speed, or grease leaking from the cap seals. Check for play by hand at the yoke with the vehicle safely supported. Any of these signs calls for a closer inspection before the next trail trip.
