Overview

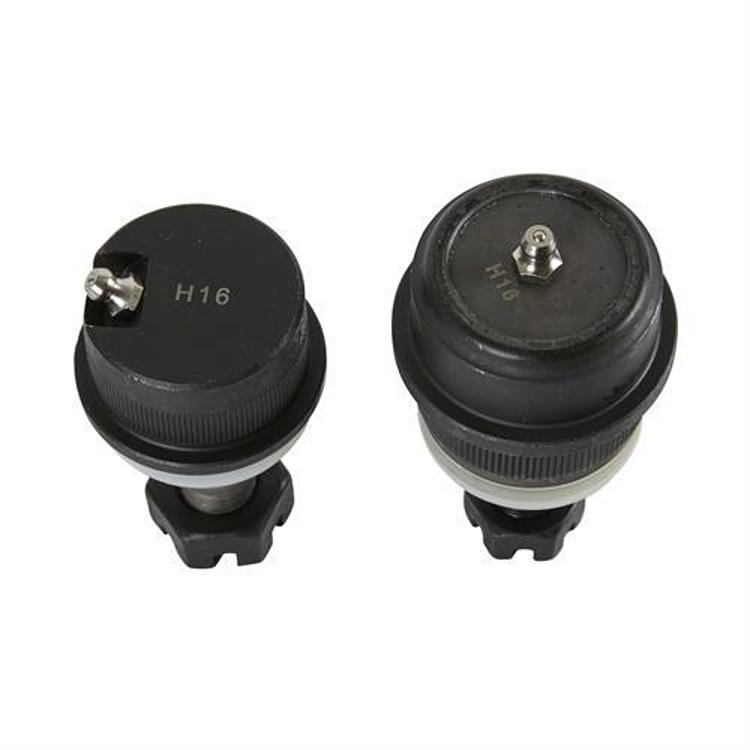

The G2 Dana 30/Dana 44 Ball Joint Pair, part 69-2051-2, is one upper and one lower heavy duty ball joint with hardware, for one side of the front end. It fits Dana 30 or Dana 44 Jeep JK and WJ models.
The joints are precision made, and G2 says they are stronger and more reliable than factory joints. They can be greased, which the manufacturer ties to longer life.
Key features
- One upper and one lower ball joint
- Hardware included
- One side per set
- Fully greasable
Choosing a replacement pair
A pair covers one side of the front end, so a full front end replacement needs two pairs. Joints on the same side tend to wear together, which is why the upper and lower are sold as a set. Before buying, confirm the axle is a Dana 30 or Dana 44 and that the joints match the knuckle and control arm design on your vehicle.
Good preparation saves time on the job. Have a press, a ball joint separator and a torque wrench ready, and check whether the upper joint is pressed or bolted. Inspect the knuckle bores for wear, since a damaged bore may need repair before a new joint seats properly.
- Confirm the axle type first
- Plan to replace both sides if both show wear
- Check bores for elongation or cracks
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 69-2051-2 |
| UPC | 631410129144 |
| Contents | One upper and one lower with hardware |
| Coverage | One side |
| Axle | Dana 30 or Dana 44 |
| Lubrication | Fully greasable |
Vehicle fitment
It fits the Jeep Wrangler JK, 2007 to 2018, and the Grand Cherokee WJ, 1999 to 2004, with Dana 30 or Dana 44 axles.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One upper and one lower ball joint with hardware, for one side.
Not included: the second side. Order a second pair for both sides.
