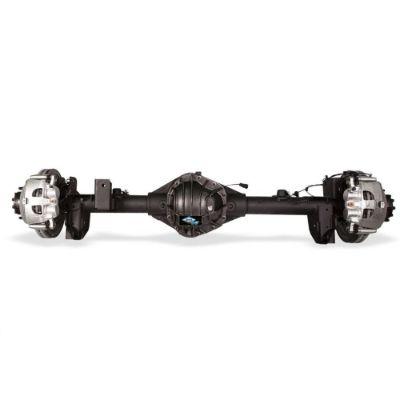

Dana Spicer Jeep JK Ultimate Dana 60 Rear Axle Assembly 4.10 Ratio – 10034270

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ultimate Dana 60 rear axle assembly with a 4.10 ratio for Jeep Wrangler JK
  • Factory electric locker and disc brake upgrade
  • Direct bolt-in with 35 spline axle shafts and 8 on 6.5 inch wheels
  • Fits 2007–2018 Jeep Wrangler JK, 2-door and 4-door.

Description

Overview

It is an Ultimate Dana 60 rear axle assembly with a 4.10 gear ratio, built for the Jeep Wrangler JK. It is a direct fit for the 2007–2018 Jeep Wrangler (JK) in 2-door and 4-door models, and it is the rear axle version of the Ultimate Dana 60 line.

It is built for off-road use and carries a disc brake upgrade and a factory electric locker. The axle shafts are 35 splines. It is a bolt-in replacement for the JK rear, and the rear gear and locker setup come with the axle.

The rear is built with an 8 on 6.5 inch wheel bolt pattern. Its 4.10 ratio is the numerically lower of the two Ultimate Dana 60 ratios offered for this JK rear, so pair the gearing with your tire size and driving style before choosing it.

Key features

  • Ultimate Dana 60 rear housing for the Jeep Wrangler JK
  • 4.10 gear ratio
  • Factory electric locker
  • Disc brake upgrade
  • 35 spline axle shafts
  • 8 on 6.5 inch wheel bolt pattern

Gearing and tire size

Axle gearing sets how fast the engine turns at a given road speed, and it interacts with tire diameter. Taller tires with a numerically lower ratio can lower engine speed on the highway, while a numerically higher ratio helps low-speed crawling. Plan the ratio around the tires you run and how you drive.

A locker and larger shafts put more load on the drivetrain, so check the gear oil regularly and listen for changes in noise. A change in tire size often affects speedometer accuracy, so recalibrate the speedometer after a change. Inspect the rear seals after deep water or mud.

  • Check gear oil level and condition at regular intervals
  • Watch for leaks at the cover and axle seals
  • Recheck speedometer calibration after tire size changes

Specifications

Brand Dana Spicer
Part number D/S10034270
Axle type Ultimate Dana 60 rear
Position Rear
Housing Jeep JK, Dana 60 (2007 onward)
Gear ratio 4.10
Axle spline 35 splines
Traction device Factory electric locker
Brakes Disc brake upgrade
Wheel bolt pattern 8 on 6.5 inches
Fitment type Direct fit

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler (JK), in 2-door and 4-door models. The housing is the JK-specific Dana 60, so it does not interchange with the front axle or with JL-generation rear axles.

Confirm fit for your vehicle’s year, model and trim before ordering, especially for the 2018–2022 Jeep Wrangler (JL), the Gladiator, and the older TJ, LJ and YJ models.

What’s included

The rear axle assembly with the factory electric locker, disc brake upgrade and 35 spline axle shafts.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the 10034270 a 4.10 gear ratio axle?

Yes. It is the 4.10 gear ratio version of the Ultimate Dana 60 rear for the Jeep Wrangler JK, and it is paired with 35 spline axle shafts and a factory electric locker.

Will this rear axle fit a 2009 Jeep Wrangler JK?

Yes. It fits the 2007–2018 Jeep Wrangler (JK), in 2-door and 4-door versions, so a 2009 JK falls within that range. The rear uses an 8 on 6.5 inch wheel pattern, so check your hubs before installing.

Does it include a disc brake upgrade?

Yes. The rear comes with a disc brake upgrade. The wheel bolt pattern is 8 on 6.5 inches, and the factory electric locker is the traction device on this model.

Can the rear gear oil be checked without special tools?

Yes, the fill plug is usually reachable with hand tools. Check that the oil is at the fill level and look for metal flakes or a burnt smell. Change the fluid as your service procedure calls for, especially after deep water or heavy off-road use.
