Dana Spicer Dana 44 Ultimate JK Front Axle Assembly 4.88 Ratio – 10032864

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ultimate Dana 44 front axle assembly with a 4.88 ratio for Jeep Wrangler JK
  • Direct bolt-in; reuse your stock wheel ends
  • Spicer nickel chromoly axle shafts and SPL 1350 u-joints
  • Spicer performance differential cover and 30 spline shafts
  • Fits 2007–2018 Jeep Wrangler JK, 2-door and 4-door

Description

Overview

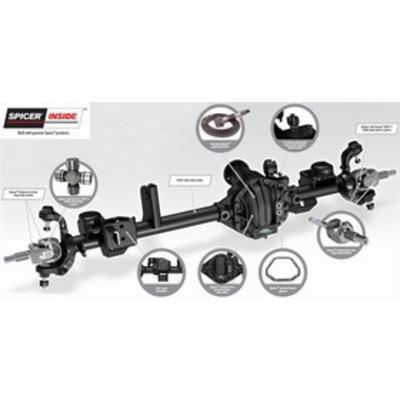

The Dana Spicer 10032864 is an Ultimate Dana 44 front axle assembly with a 4.88 gear ratio, built for the Jeep Wrangler JK. It is a direct fit for the 2007–2018 Jeep Wrangler (JK) in 2-door and 4-door models, and it bolts in as a complete front axle.

Dana Spicer presents this axle as an upgraded Dana 44 for owners who drive their JK hard off-road. Its upgrades include Spicer nickel chromoly steel axle shafts, a Spicer performance differential cover and SPL 1350 axle shaft universal joints, all of which the company says add on-trail durability and strength over the stock front axle.

The axle uses an open differential with 30 spline shafts. The brakes are reused from the vehicle, and the wheel bolt pattern is 5 on 5 inches. The axle requires the stock wheel ends to be reused, so the hubs and wheel ends from the original axle carry over.

Key features

  • Dana 44 front housing for the Jeep Wrangler JK
  • 4.88 gear ratio
  • Open differential
  • Spicer nickel chromoly steel axle shafts with 30 splines
  • Spicer performance differential cover
  • SPL 1350 axle shaft universal joints
  • 5 on 5 inch wheel bolt pattern, with reused stock brakes

Upgrading a JK front end

A front axle swap changes more than the housing. The gear ratio, tire diameter and speedometer calibration all work together, so a change to one can alter how the vehicle drives and reads speed. Owners who run larger tires often pair a new ratio with recalibration, and they check the steering linkage and driveline angles at the same time.

Because the hubs, brakes and wheel bearing hardware carry over from the original axle, inspect them for wear before installing the new housing. Check the wheel bolt pattern and the spline fit of the hubs carefully. Driveline angles and steering geometry can shift after a front axle swap, so plan an alignment check once the job is complete.

  • Inspect the reused hubs and wheel bearings
  • Recalibrate the speedometer after a tire change
  • Re-check driveline angles after the swap

Specifications

Brand Dana Spicer
Part number D/S10032864
Axle type Ultimate Dana 44 front
Position Front
Housing Jeep JK, Dana 44 (2007 onward)
Gear ratio 4.88
Axle spline 30 splines
Traction device Open differential
Wheel bolt pattern 5 on 5 inches
Brakes Reuse factory
Axle shafts Spicer nickel chromoly steel
U-joints SPL 1350
Differential cover Spicer performance
Fitment type Direct fit

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler (JK), in 2-door and 4-door versions. The fit runs 2007 to 2018, the last year of the JK body.

Its fit is the Wrangler JK only. The 2018–2022 Jeep Wrangler (JL) and the Gladiator use a different front axle, so the JK fit does not carry over to them.

Installation notes

Because the axle is a direct bolt-in, the stock wheel ends, brakes and wheel bearing hardware from the original front axle must be moved to this housing. Check the wheel bolt pattern and the 30 spline shafts against the hubs you plan to reuse.

What’s included

The assembly includes the Dana 44 front housing, Spicer nickel chromoly axle shafts, the Spicer performance differential cover and SPL 1350 axle shaft universal joints.

Not included: the stock wheel ends, which the axle requires you to reuse.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Dana Spicer 10032864 fit a 2012 Jeep Wrangler JK?

Yes. It is a direct fit for the 2007–2018 Jeep Wrangler (JK), in 2-door and 4-door versions, and 2012 falls inside that range. Match the body style to your vehicle before ordering.

Does the axle come with wheel ends?

No. It is a direct bolt-in axle that requires you to reuse your stock wheel ends, so the hubs and wheel ends from the original front axle carry over to the new housing.

What gear ratio and spline count does it use?

It uses a 4.88 gear ratio with 30 spline axle shafts and an open differential. The shafts are Spicer nickel chromoly steel, with SPL 1350 universal joints.

Does a gear ratio change need other parts?

Often, yes. A new ratio changes how the engine and tires work together, so tire size and speedometer calibration are worth checking. Some owners also review the steering and driveline parts that work with the new front axle.
