Overview

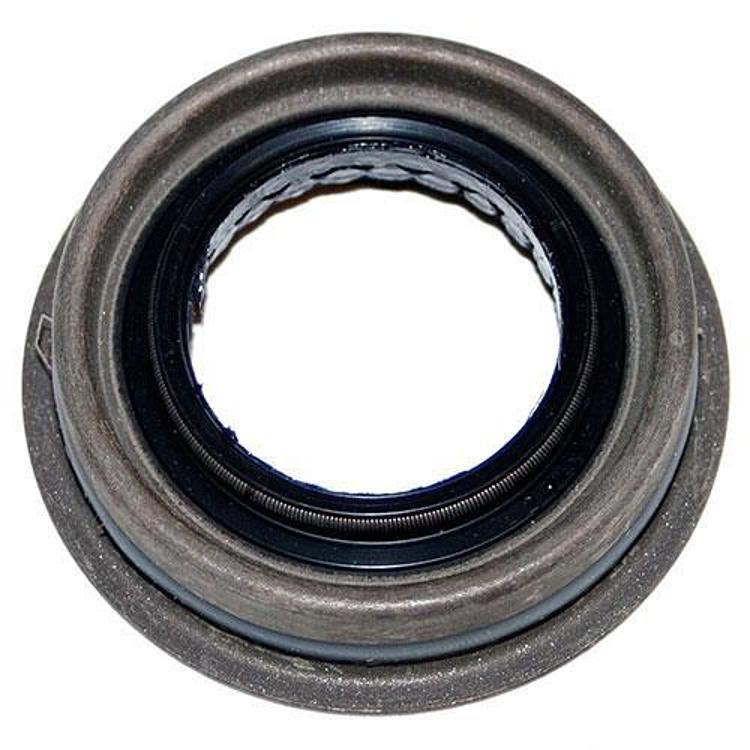

The Dana Spicer 46485 is a Dana 35 outer axle seal for the 1988 to 1989 Jeep Cherokee (XJ) with bill of material #605455.
Signs the seal needs replacing
An outer axle seal keeps gear oil inside the axle and keeps water and grit out of the wheel end. Most leaks show up as dark gear oil on the inside of the wheel, on the backing plate, or on the brake shoes and drum. Because the seal sits next to the brakes, oil contamination can reduce braking performance, so a leak should be addressed quickly.
When replacing an outer seal, inspect the bearing, hub and axle shaft surfaces for wear or grooves that could cause the new seal to leak. Clean the housing bore and remove any old sealant or burrs. Pack the bearing as the procedure calls for and check the lubricant level afterward.
- Oil on the inside of the wheel
- Brake parts coated with gear oil
- Grooves or wear on the axle shaft seal surface
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 46485 |
| UPC | 23913142773 |
| Part type | Outer axle seal |
| Axle | Dana 35 |
| Application note | Only for 1988-89 XJ with bill of material #605455 |
Vehicle fitment
It is for the 1988-89 XJ with bill of material #605455 only. Confirm that bill of material number on your vehicle before ordering.
Other Cherokee years and other Dana 35 applications are not covered by this seal. Check the bill of material number, and confirm the year, model and trim before ordering.
Installation notes
Axle seal work affects the wheel end and brakes, so professional installation is recommended. Keep brake surfaces free of oil and grease, use the correct torque specifications for your axle, and check for leaks after the first miles.
