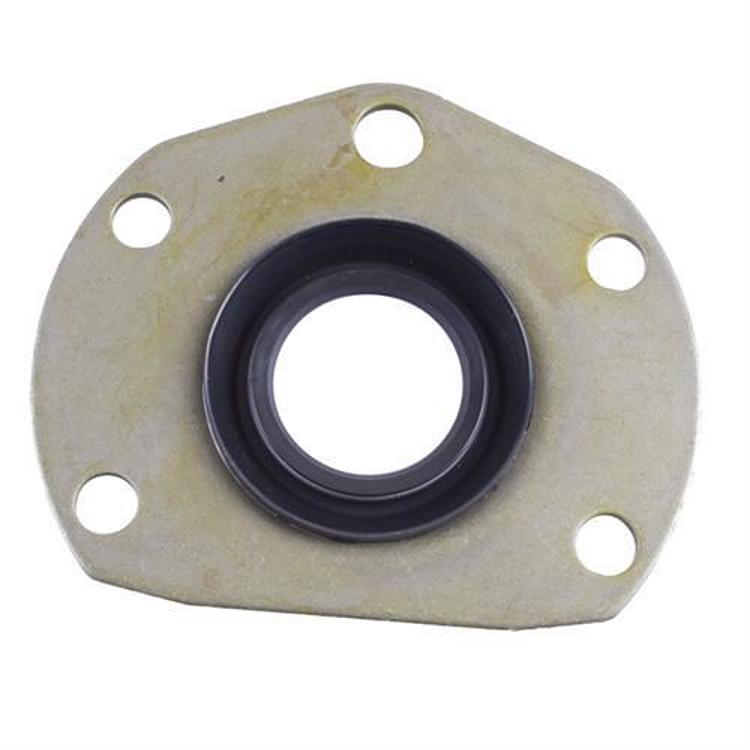

Crown Automotive Model 20 Outer Axle Shaft Seal – J4485691

Crown Automotive

$10.75Usually ships within 6 to 7 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Model 20 outer axle shaft seal, Crown Automotive J4485691
  • For a Model 20 rear axle
  • Fits CJ5, CJ7 and Scrambler models
  • Positioned at the rear outer end

Description

Overview

The Crown Automotive J4485691 is an outer axle shaft seal for a Model 20 rear axle. It fits the 1976-1983 Jeep CJ5, the 1976-1986 Jeep CJ7 and the 1981-1985 Jeep Scrambler.

It seals the wheel end of the axle tube, keeping rear differential oil off the brakes and out of the wheel. It is positioned at the rear outer location and is a direct fit for the Jeeps below.

Crown Automotive has built replacement parts for Jeep vehicles for over 50 years, including many discontinued items. Measure the old seal before ordering to confirm the match.

The Model 20 is the AMC-built rear axle used in CJ models of this era. Seals at the axle ends leak with age, which can contaminate brakes, so many owners replace both outer seals together when servicing the axle.

A Model 20 seal should not be used on a Dana 30 axle, which is found on the front of many Jeeps. Confirm the axle name on your vehicle before ordering.

Rear seals that leak oil can foul the brake shoes, which is why a seal is replaced as soon as the leak is noticed.

Key features

  • Outer axle shaft seal
  • For the Model 20 rear axle
  • Rear outer position
  • Direct fit replacement at the rear outer position.
  • Fits CJ5, CJ7 and Scrambler models

Why the outer seal matters

The outer axle seal is the last barrier between the axle tube and the wheel hub. When it fails, gear oil runs along the axle shaft and can reach the inside of the brake drum, where it soaks the shoes and cuts stopping power. Many owners notice the first sign as a damp spot on the inside of the wheel or a faint oily smell after a drive, and that is the time to act rather than wait for the leak to grow.

Because the seals on both ends of the axle age at similar rates, replacing one often makes sense alongside the other. Work with the axle shaft out, clean the seal bore, and check the shaft’s sealing surface for grooves, which would let a new seal leak from the start. A light coat of gear oil on the lip helps the seal seat cleanly during installation.

  • Inspect brake shoes for oil before reassembling
  • Clean the seal bore of old sealant and debris
  • Use a seal driver rather than a hammer to avoid damage
  • Refill and check the axle oil level after the repair

Specifications

Brand Crown Automotive
Part number J4485691
UPC 848399062380
Product type Outer axle shaft seal
Axle Model 20 rear axle
Position Rear outer
Fit type Direct fit

Vehicle fitment

The manufacturer fitment list for the Crown Automotive J4485691 includes: 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade); 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade); 1981–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR).

This seal fits the CJ5 from 1976 to 1983, the CJ7 and the Scrambler. Verify your vehicle’s year, model and trim against this fit before ordering.

Installation notes

Outer seals sit at the axle tube end, so the axle shaft must be removed to replace them. Check the shaft’s sealing surface for wear, since a groove there will let the new seal leak.

What’s included

  • One outer axle shaft seal, part number J4485691
SKU: CROJ4485691 Category:

Specification

Shipping weight 0.44 lbs
Package dimensions 5.00 × 1.00 × 0.40 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the Crown Automotive J4485691?

The Crown Automotive J4485691 is an outer axle shaft seal for a Model 20 rear axle. It is not a full axle seal set.

Which Jeeps does the J4485691 fit?

It fits the 1976-1983 Jeep CJ5, the 1976-1986 Jeep CJ7 and the 1981-1985 Jeep Scrambler. Check the year, model and trim against this fit first.

Is the J4485691 a rear axle part?

Yes. It is made for a Model 20 rear axle and sits in the rear outer position. It is not a front axle part.

Will the J4485691 fit a Wrangler YJ?

No. The Wrangler YJ is not among the covered vehicles, which are the CJ5, CJ7 and Scrambler. The YJ uses different axle parts.

How do I know if the outer axle seal is leaking?

Look for gear oil on the inside of the wheel, on the brake backing plate or along the axle shaft near the hub. A seal that is weeping should be replaced promptly, since oil on the brake linings reduces braking and is hard to clean off once it soaks in.

Should I replace both outer seals at once?

Often yes. Both outer seals age under the same conditions, and pulling the axle shafts for one seal makes the other easy to reach. Replacing both during the same job avoids another round of work if the second seal fails soon after.
