Overview

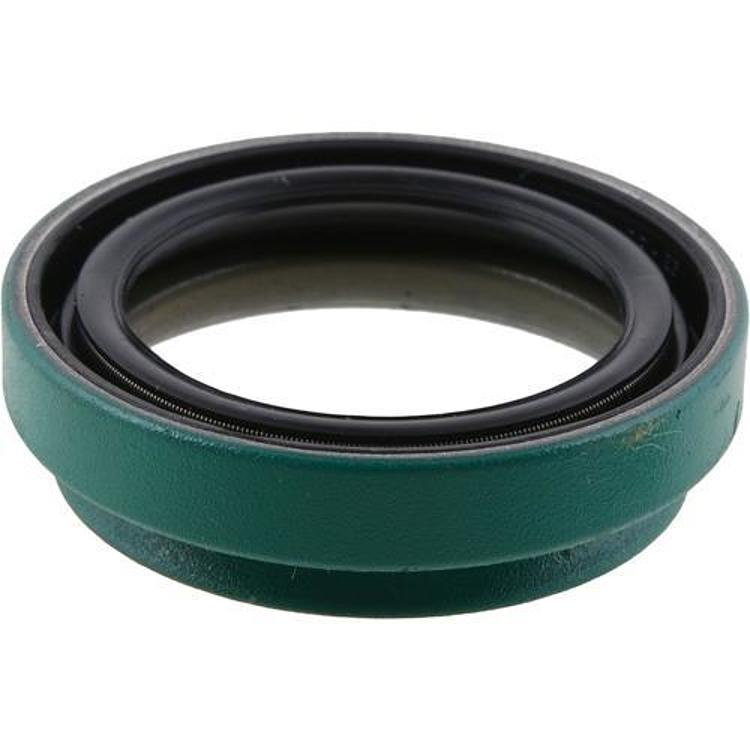

The Dana 44 axle tube seal, part number 48488, is made for the Dana 44 axle. It fits the 1987 to 1995 Jeep Wrangler YJ.
An axle tube seal keeps water, mud and debris out of the axle tube, where the axle shaft runs through the housing.
Why axle tube seals fail
The axle tube seal sits where the axle shaft passes into the housing, and its lip keeps water, mud and grit from getting past the bearing area. Off-road driving through water and deep mud puts the seal under pressure, and a worn lip lets contamination in and gear oil out. Once the seal fails, the bearing and axle shaft can wear quickly, so the seal is worth checking at the same time as the bearing.
When replacing the seal, remove the axle shaft or hub as the design requires, then clean the tube bore and check it for nicks that could damage the lip. Install the new seal square and seat it fully before reassembly. Refill the axle to the correct gear oil level, then look for seepage at the housing after a short drive. A seal that leaks after a few trips should be inspected again rather than left to run.
Keep an eye on the axle breather and the gear oil condition between services. Water in the oil or a milky look is an early sign that the seal and bearing need attention.
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 48488 |
| UPC | 23913144111 |
| Axle | Dana 44 |
| Type | Axle tube seal |
Vehicle fitment
It fits the 1987 to 1995 Jeep Wrangler YJ in the Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.
Only the YJ years are listed, so the TJ, LJ and JK are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One axle tube seal is included. Check the package contents against your installation before starting.
