California Supertrucks 2.0 Non Resevoir Shock – CSR-5524B

California Super Trucks

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • California Super Trucks 2.0 non-reservoir shock, part number CSR-5524B
  • Designed for 8-10 inch lifts
  • Bushing mounts instead of Heim joints
  • All required hardware included

Description

Overview

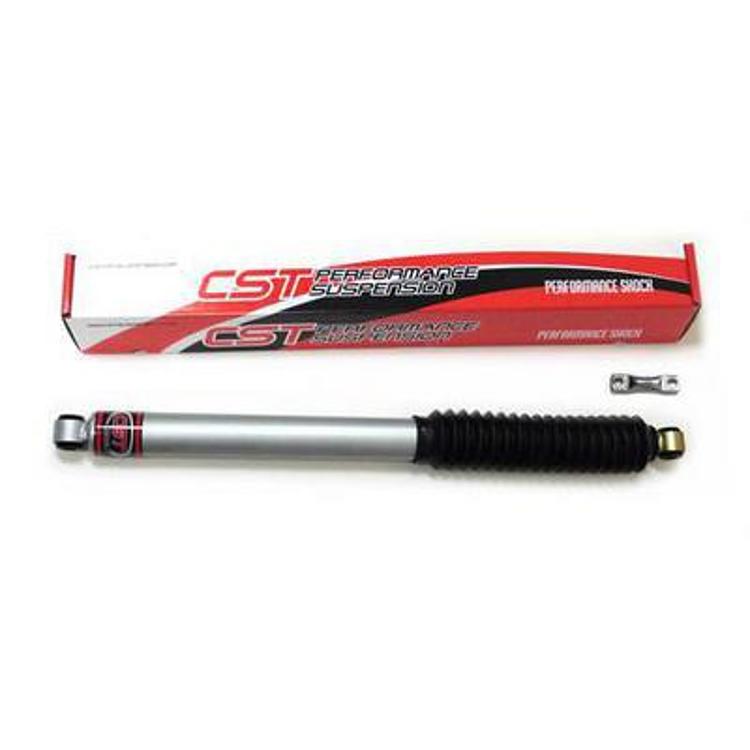

The California Super Trucks 2.0 Non Reservoir Shock, part number CSR-5524B, is a non-reservoir gas charged shock for 8-10 inch lifts. It is built in the USA, and California Super Trucks also makes street-series, dirt-series and pro-series shocks for lifted trucks.

The shock uses bushings instead of Heim joints and comes with the required hardware, so Heim joints do not need to be pressed out during installation.

Key features

  • Non-reservoir design
  • Gas charged construction
  • Designed for 8-10 inch lifts
  • Bushing mounts instead of Heim joints
  • All required hardware included

Heim joints versus bushings

Heim joints are spherical bearings that let the shock pivot freely at the mount, but they wear and can bind if the joint is worn or misaligned. Bushing mounts use a rubber or polymer sleeve, which is quieter on the street and needs less maintenance. Choosing bushings often means a trade-off in articulation, so consider how much flex your trail driving needs.

On a lifted truck, mount wear usually shows up as clunking over bumps or uneven tire wear. Check that the upper and lower mounts line up without forcing the shock into place, since binding shortens shock life. Replace worn bushings in pairs so both sides wear evenly, and inspect the body for leaks while you are under the truck.

  • Inspect bushings for cracks and flattening
  • Check mounts for play and bent brackets
  • Tighten hardware to specification after the first drive

Specifications

Brand California Super Trucks
Part number CSR-5524B
UPC 700007502781
Series 2.0 Non Reservoir
Reservoir None
Lift range 8-10 inch
Mounting Bushings, not Heim joints
Type Hydraulic / gas charged
Included hardware All required hardware

Vehicle fitment

Confirm the year, make and model against your truck before ordering, and compare your lift height and mounting points.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because this shock needs no pressing out of Heim joints, the mounting step differs from Heim-equipped shocks. Check that the included hardware matches your mounts before installing.

What’s included

All required hardware is included.

SKU: CSTCSR-5524B Category:

Specification

Shipping weight 8.00 lbs
Package dimensions 32.00 × 4.00 × 4.00 in
brands

Questions & Answers

Is part CSR-5524B a reservoir shock?

No. The product title and copy identify the California Super Trucks 2.0 Non Reservoir Shock as a non-reservoir design with gas charged construction. The listed UPC is 700007502781.

Does it come with mounting hardware?

Yes. The shock comes with all required hardware and uses bushings instead of Heim joints. Check that the included hardware matches your mounts before installing.

What lift height is it made for?

It is made for an 8-10 inch lift. Compare your lift height and mounting points before choosing it, since the truck year, model and trim should be confirmed first.

Will it fit my truck?

Confirm the year, make, model and trim against your truck before ordering, since this shock is made for 8-10 inch lifts. Compare your lift height and mounting points with the shock's requirements.

Should bushings be replaced before a shock?

Inspect them first. Cracked or flattened bushings can cause clunks and uneven wear, and replacing them is often cheaper than replacing a shock that is still working. If the shock body is leaking or the damping feels weak, replace the shock as well.
