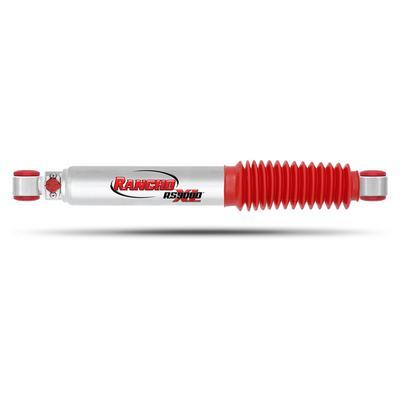

Rancho RS9000XL Series Shock Absorber – RS999070

Rancho

$125.12In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:10 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rancho RS9000XL rear shock for the 2020 Jeep Gladiator with a 2-inch lift
  • Nine-position manual tuning with an adjustment knob
  • 2.75-inch (70 mm) tri-tube body and 18 mm nitro-carburized rod
  • Part number RANRS999070

Description

Overview

The Rancho RS999070 is a rear RS9000XL shock for the 2020 Jeep Gladiator, sold individually and designed for a 2-inch lift.

The RS9000XL is Rancho’s nine-position adjustable series. This shock has a 2.75-inch (70 mm) tri-tube body and an 18 mm nitro-carburized rod, and its damping can be changed with a nine-position adjustment knob. The adjustable damping helps control the extra unsprung mass of larger tire and wheel combinations.

Some sizes vary by application. The series is engineered and manufactured in the U.S. The lower mount is a loop bushing and sleeve mount with a 14 mm sleeve inside diameter, and the upper mount uses a 14 mm sleeve inside diameter with a 39.69 mm sleeve length.

Key features

  • Rear shock for a 2-inch lift
  • Nine-position tuning with adjustment knob
  • Gas pressurized body
  • Graphite-filled, Fluon banded piston
  • 1-1/4-inch sintered iron piston
  • Rebound bumper and low-friction, self-lubricating seal
  • Liquid metallic finish, protective boot and double-welded loops

Matching a rear shock to lift

Rear shocks do most of their work when the axle is compressed over bumps and when it rebounds after a drop. On a lifted Gladiator, the longer suspension travel and the heavier wheel and tire packages change how the shock behaves, so the damping setting matters more than it does on a stock truck. A nine-position adjuster gives room to match firmness to a light trail rig or a heavier setup used for towing or rock crawling. Start in a middle setting and adjust in small steps, noting how the rear end settles on washboard and pavement.

Shocks wear out gradually. Look for fluid leaking past the seal, a boot that is torn or cracked, bushings that have gone loose, and a rear end that bounces longer than usual after a bump. Because the sleeve mounts sit at both ends, inspect the bushings and sleeves whenever the shock comes off. Replacing rear shocks in pairs keeps the damping even from side to side.

Specifications

Brand Rancho
Part number RANRS999070
Series RS9000XL
Position Rear
Lift 2 inch
Body 2.75-inch (70 mm) tri-tube
Rod 18 mm nitro-carburized
Compressed length 19.76 inches
Extended length 28.22 inches
Travel 8.46 inches
Lower mount Loop bushing and sleeve, 14 mm sleeve ID by 1-9/16-inch sleeve length
Upper mount Loop bushing and sleeve, 14 mm sleeve ID by 39.69 mm sleeve length

Vehicle fitment

It fits the 2020 Jeep Gladiator in the Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S versions.

The list does not include the Wrangler JL or Gladiator model years other than 2020. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the sleeve sizes at each mount against the old shock before installing, since some sizes vary by application. Lower and upper mount sizes are separate, so measure both before ordering.

What’s included

The shock is sold individually. It includes a protective boot, double-welded loops and a liquid metallic finish.

Fitment

VehicleYearsTrims
Jeep Gladiator2020Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RS999070 fit a 2019 Jeep Gladiator?

No. It fits the 2020 Jeep Gladiator only, so 2019 Gladiator models fall outside its fit. Confirm fit for your vehicle's year, model and trim before ordering.

Is the RS999070 a front or a rear shock?

It is a rear shock designed for a 2-inch lift on the 2020 Jeep Gladiator. Its position is rear, so it does not replace a front unit. Confirm the position against the shock you are replacing before ordering.

What sleeve size do the mounts use?

Both mounts are loop bushing and sleeve mounts with a 14 mm sleeve inside diameter. The lower sleeve is 1-9/16 inch long and the upper sleeve is 39.69 mm long.

How often should rear shocks be inspected on a lifted Gladiator?

Inspect them at every tire rotation or oil change, and after rough off-road trips. Look for leaks on the body, a torn boot, worn mount bushings, or rear bounce that lingers after a bump. Confirm that the mounts are tight and the sleeves are seated before returning to the trail.
