Overview

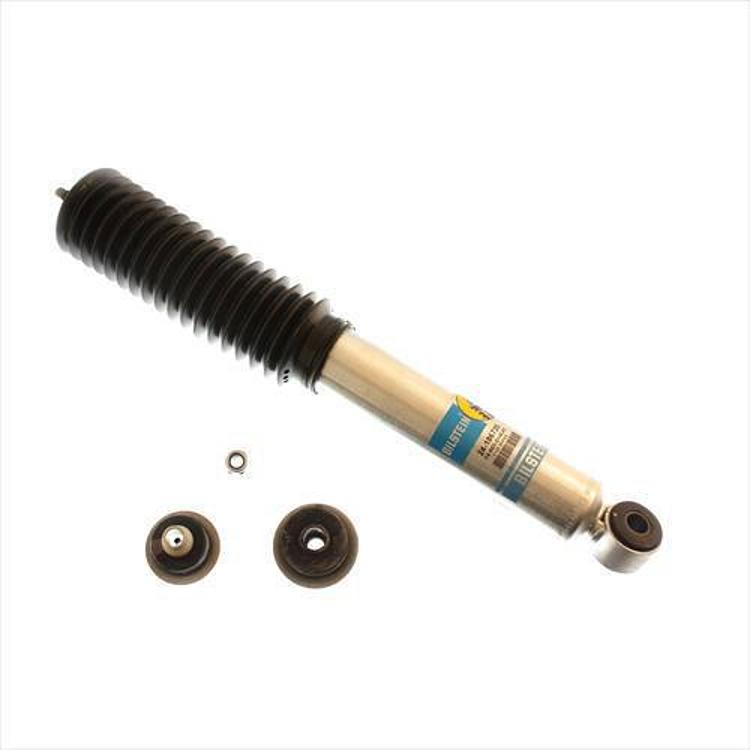

The Bilstein 24-186735 is a front 5100 Series monotube gas charged shock absorber with a 4.46 in. travel length and a w/0 – 2.5 in. lift rating. Confirm fit for your vehicle’s year, model and trim before ordering.
The 5100 Series suits lifted trucks, Jeeps and prerunners. The single tube gas pressure body is designed for consistent damping over long use, and the non-coilover body is built for the stock OEM mounting configuration of specific lift kits.
Key features
- Monotube gas pressure construction
- Self-adjusting deflecting disc valving
- High-flow piston that reduces harshness.
- Independent rebound and compression tuning
- Boot included
Front shock setup and steering
Front shocks help keep the tires in contact with the ground during braking, steering and off-camber driving. They also shape the steering feel a driver notices on washboard roads and rocky trails. Front shocks are usually replaced in pairs so both sides react the same way when the front end loads up.
Check the front end before buying. Worn ball joints, tie rod ends and control arm bushings make a new shock feel vague. Before disassembly, support the front safely and note how the old shock’s stem or eye mount sits so the new one goes back the same way.
- Check ball joints and tie rod ends
- Inspect control arm bushings
- Match the stem upper mount to the old unit
- Confirm suspension height before ordering
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-186735 |
| UPC | 651860651040 |
| Series | 5100 Series |
| Position | Front |
| Collapsed length | 11.3 in. |
| Extended length | 15.76 in. |
| Travel length | 4.46 in. |
| Lower mount | Eye, 14.1mm |
| Upper mount | Stem |
| Shaft diameter | 11mm |
| Body design | 46mm ID smooth body, non-coilover |
| Internal design | Monotube |
| Gas charged | Yes |
| Reservoir | No |
| Finish | Zinc plated |
| Boot | Included |
| Lift height rating | w/0 – 2.5 in. lift |
| Fitment type | Direct fit |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Lifted trucks, Jeeps and prerunners are the intended applications.
Confirm fit for your vehicle’s year, model and trim before ordering, and check the package contents against your installation before starting.
Installation notes
The rated lift is w/0 – 2.5 in. lift, so confirm your suspension height falls in that range. Support the front end on stands before removing the shock, and never work under a vehicle held only by a jack.
What’s included
One Bilstein 5100 Series front shock absorber with its boot.
