Bilstein 5160 Series Reservoir Shock Absorber – 25-187809

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front 5160 Series reservoir shock, part number 25-187809
  • Travel 11.95 in; collapsed 16.44 in; extended 28.39 in
  • Bar mount lower, stem upper, 14mm shaft
  • Lift range 5 – 6 in; Direct Fit label
  • Confirm fit for your vehicle before ordering.

Description

Overview

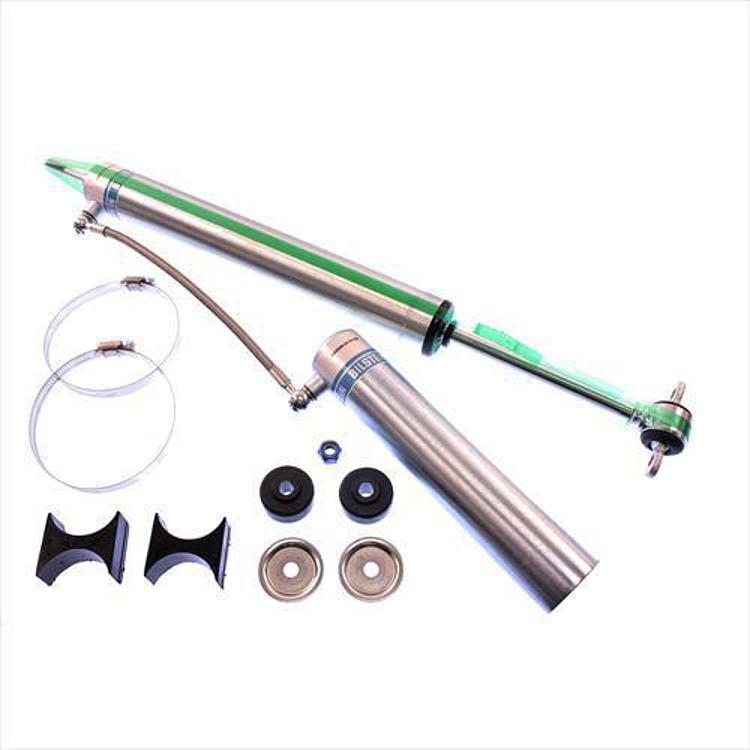

The Bilstein 25-187809 is a front 5160 Series reservoir shock absorber with a lower bar mount and an upper stem mount. Bilstein designed it to install in the stock shock mounting location on pickups and SUVs without cutting or welding, but no vehicles are attached to this part here.

Remote reservoir capacity, digressive valving and a mono tube body are the core design points. The shock measures 16.44 in collapsed, 28.39 in extended and 11.95 in of travel, with a 14mm shaft and a 46mm inside diameter smooth body.

Key features

  • Remote reservoir adds shock oil volume for heat management.
  • Digressive valving produces full damping capability right away.
  • Floating dividing piston sits inside the reservoir for longer wheel travel.
  • Mono tube body with a 46mm ID smooth, non-coilover design.
  • Zinc plated finish with Bilstein’s Triple-C Technology.
  • Upper mount and reservoir mount hardware included.

Choosing a lift height

A shock’s length and travel decide how well it suits a given lift. Raising a truck changes the angle and extension of the front shock, so the lift height you run should match the shock’s extended length and travel range. Measure the stock shock’s collapsed and extended lengths before buying, and compare them with the new unit.

A remote reservoir gives the oil more room to cool, which helps on long descents and repeated trail runs. The reservoir has to sit clear of frame members, steering parts and tires, so plan its routing before final tightening. Recheck clearance after the first few drives, since suspension compression can shift the reservoir slightly.

  • Measure the stock shock before ordering
  • Check reservoir clearance at full steering lock
  • Recheck mount torque after the first road test

Specifications

Brand Bilstein
Part number 25-187809
UPC 651860654584
Series 5160 Series
Position Front
Fitment type Direct Fit
Collapsed length 16.44 in
Extended length 28.39 in
Travel length 11.95 in
Lower mount Bar mount
Upper mount Stem
Shaft diameter 14mm
Reservoir Yes
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Finish Zinc plated
Boot included No
Lift height 5 – 6 in lift
Hydraulic / gas charged Gas charged
Mounting parts included Upper Mount and Reservoir Mount

Vehicle fitment

No vehicles are attached to this part here, so the fit is not confirmed. The shock carries a Direct Fit label and a 5 – 6 in. lift range, but neither names a make, model or year.

Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The stem upper mount and bar lower mount set the geometry, and the included upper mount and reservoir mount hardware determine where the reservoir sits. Position the reservoir away from the frame and moving parts, and check the gap after the first road test.

What’s included

Upper mount kit, reservoir mount kit and detailed instructions.

Not included: Boot.

SKU: BIL25-187809 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 6.10 × 6.10 in
brands

Questions & Answers

Which vehicles does the Bilstein 25-187809 fit?

No vehicles are named for this part, so confirm fit for your year, make, model and trim. Compare the 16.44 in collapsed and 28.39 in extended lengths with your current shock before ordering.

Is this shock a front or rear position?

It is a front shock. Part number 25-187809 belongs to the Bilstein 5160 Series, with a lower bar mount, an upper stem mount and a reservoir. The lift range is 5 - 6 in.

Does the Bilstein 25-187809 come with a boot?

No. The boot is not included. The mounting parts are the upper mount and reservoir mount, and detailed instructions come with the reservoir mounting kit.

What maintenance does a reservoir shock need?

Inspect the reservoir hose, mounting clamps and body at each tire rotation or oil change. Look for oil seepage, rubbing against the frame and loose fasteners. Reservoir shocks are sealed units, so a leak or body damage usually means replacement rather than service.
