Bilstein 5165 Series Reservoir Shock Absorber – 25-177503

Bilstein

Shop Bilstein Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Monotube reservoir shock for custom lifted trucks and SUVs
  • Remote reservoir adds oil capacity and heat dissipation
  • Digressive valving and a floating dividing piston in the reservoir
  • Reservoir mounting kit and detailed instructions included

Description

Overview

The Bilstein 5165 Series reservoir shock absorber, part number 25-177503, is a gas charged monotube shock with a remote reservoir, made for custom lifted trucks and SUVs. It is a universal fit design, and the mounting and length must be matched to your vehicle before installation.

The remote reservoir holds extra shock oil, which Bilstein says improves heat dissipation and damping sensitivity. The floating dividing piston sits in the reservoir, which allows more shaft movement. The digressive valving gives full damping as soon as the shock starts to move.

Key features

  • Monotube design
  • Remote reservoir with extra oil capacity
  • Digressive valving
  • Floating dividing piston in the reservoir for more shaft movement
  • Triple-C Technology finish
  • Reservoir mounting kit included

Reservoir mounting and clearance

A remote reservoir shock places the oil reservoir away from the shock body, so the hose and reservoir need a clear path through full suspension travel. Check where the reservoir sits against the tire, the exhaust, the brake lines and any moving steering parts before tightening anything. Reservoir position also affects how heat is handled during hard use, so it should be planned rather than left to chance.

Hoses and brackets can rub when the suspension articulates, especially on lifted trucks where the geometry changes. After the first few drives, look for chafing on the hose, loose clamps and wear where the reservoir touches the frame. Re-check the bracket bolts after the first trail runs and keep the hose away from sharp edges.

  • Plan the reservoir position before drilling or bolting
  • Check hose routing through full compression and rebound
  • Inspect clamps and brackets after rough use

Specifications

Brand Bilstein
Part number 25-177503
UPC 651860663104
Shock series 5165 Series
Body type Monotube with remote reservoir
Charge Gas charged
Valving Digressive
Finish Triple-C Technology
Fitment Universal fit

Vehicle fitment

The shock is designed for custom lifted trucks and SUVs in universal fit. Match the mounting points and length to your vehicle before installing it.

Installation notes

The shock includes a reservoir mounting kit and detailed instructions. Follow those instructions for the reservoir position, since the reservoir is mounted separately from the shock body.

What’s included

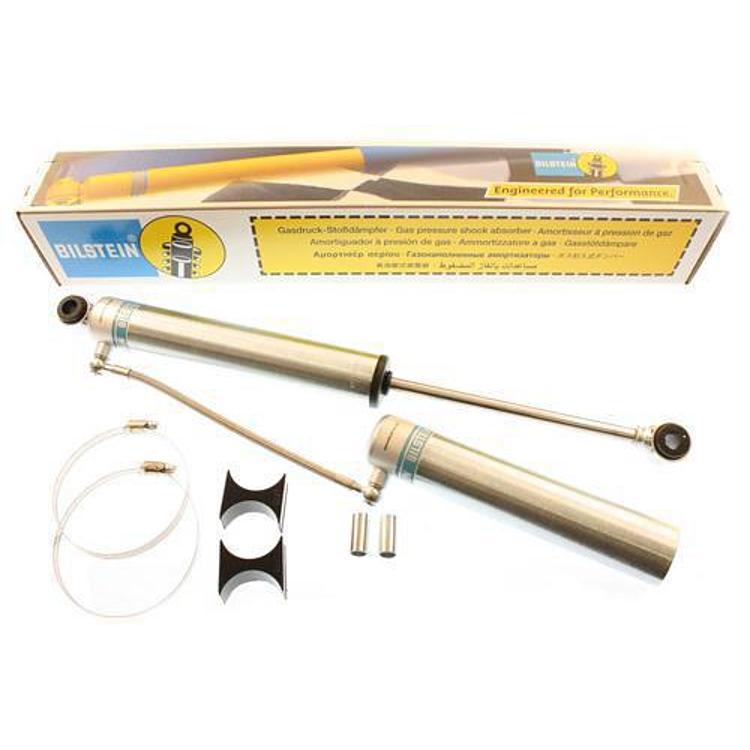

One 5165 Series reservoir shock absorber, with the reservoir mounting kit and detailed instructions.

SKU: BIL25-177503 Category:

Specification

Shipping weight 7.18 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Questions & Answers

Will the Bilstein 25-177503 fit my truck?

It is a universal fit design for custom lifted trucks and SUVs, without a specific year, make or model. Check the mounting points and shock length against your vehicle before installing it.

Does the 25-177503 include a reservoir mount?

Yes. It comes with a reservoir mounting kit and detailed instructions, which cover the reservoir position on the vehicle. The reservoir mount is part of the package.

What is the 5165 Series?

It is Bilstein's reservoir shock line, a monotube design with a remote reservoir that adds oil capacity and gives more shaft movement. The 25-177503 is a gas charged member of that series.

How should I route the reservoir hose?

Route it so it stays clear of the tire, exhaust, brake lines and moving suspension parts through full travel. Use the mounting kit's brackets, leave a little slack without letting the hose sag, and check for chafing after the first drive.
