Overview

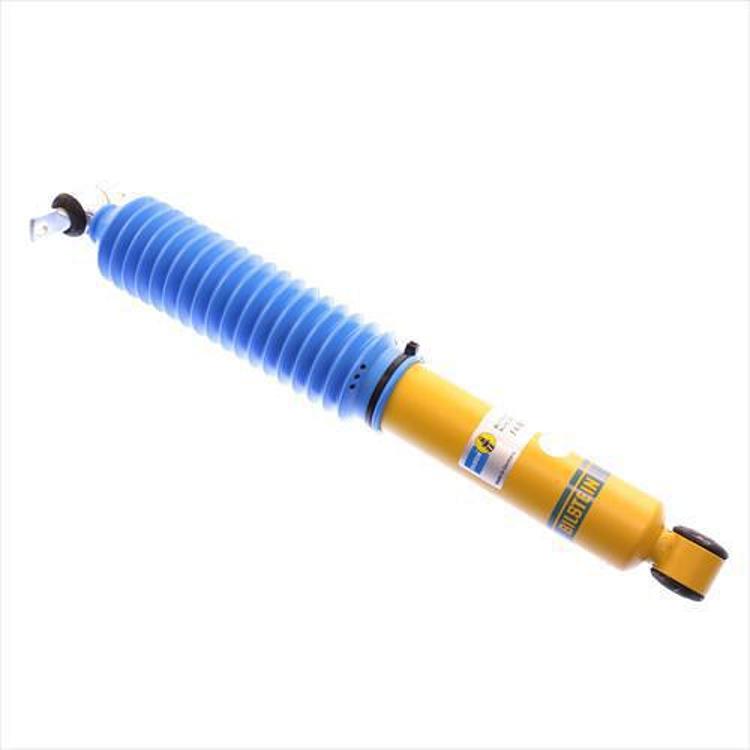

The Bilstein 24-024433 is a heavy-duty 46mm monotube shock absorber for the rear of a vehicle, part of the 4600 Series. It is gas charged, has a yellow finish and includes a boot. It is a direct-fit design, and the vehicles it suits should be matched before purchase.
The gas-charged monotube design moves heat from the oil through the shock body, where it can dissipate. A dividing piston lets the oil expand as it warms, which helps prevent foaming and loss of viscosity, so damping holds up as temperatures climb. The tube is made by a special extrusion process aimed at tight peak-to-valley tolerance and even wall thickness. The piston head can be tuned separately for compression and rebound damping. The design uses fewer parts than many twin-tube and road-sensing shocks.
This is a fit for owners replacing a rear shock who want a 46mm heavy-duty body, a yellow finish and a boot in the same unit. Check the position and your vehicle’s specifications before choosing it.
Key features
- Heavy-duty 46mm monotube body
- Gas-charged design with a dividing piston that lets the oil expand as heat builds
- Extruded tube made for tight peak-to-valley tolerance and consistent wall thickness
- Piston head with separately tuned compression and rebound damping
- Boot included, rear mounting position
Rear shock basics
A rear shock absorber controls how the axle and body move after a bump or a load change. Its damping decides how quickly the spring settles, which affects tire contact on rough pavement and stability when braking hard. Because the oil inside works harder as it heats, a shock that runs cool and holds its gas charge keeps damping steady across a long drive.
When choosing a rear shock, the body size, finish and whether boots are included all matter for the way the shock will wear. Mounting eyes and bushings should be inspected at the same time, since a worn bushing can change the angle of the shock and shorten its life. If the shock is replaced on one side, consider the other side as well so the rear end responds the same way on both sides. Rear shock swaps are usually simple, but they go best with a helper and a supported axle.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-024433 |
| UPC | 651860607931 |
| Shock series | 4600 Series |
| Body size | 46mm monotube |
| Charge | Gas charged |
| Position | Rear |
| Finish | Yellow |
| Boot included | Yes |
| Lift height | w/0 in. Lift/Drop |
| Fitment | Direct Fit |
| Old part numbers | BILF4-BE5-2443-H0, BILF4-BE5-2443-H1 |
| Sold as | Each |
Vehicle fitment
Match the shock to your vehicle’s year, make, model and trim before ordering. It is a rear suspension shock and suits rear applications only.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One shock absorber with a boot, sold as each. Check the package contents against your installation for any mounting hardware needed.
