Overview

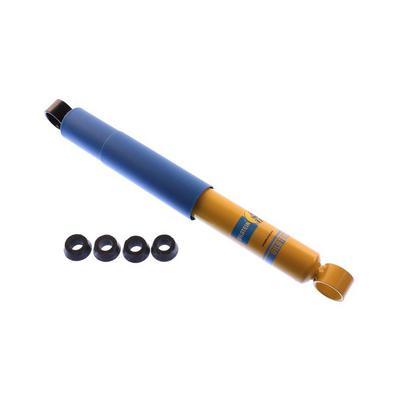

The Bilstein 4600 Series rear left shock, part number BIL24-184960, is a gas charged monotube shock with a 2 inch body diameter, boots included and a yellow finish. It is a direct fit for the 1995 to 2004 Toyota Tacoma in Base, Limited, Pre Runner and SR5 trim.
This shock is made for the rear left position, so it is one side of a rear pair. Replacing both rear sides means fitting one shock per side, so plan for a pair.
The monotube design has no external reservoir. Bilstein says heat passes from the oil to the outer surface of the body, which lets the shock cool more efficiently as it works.
A dividing piston lets the oil expand as it warms, which prevents foaming and loss of viscosity. The shock keeps its damping as temperature rises, and its piston head can be tuned separately for compression and rebound. The tube is made by an extrusion process that holds tight tolerances.
The rear left position and the included boots are the physical details of this shock.
Key features
- Rear left position
- Gas charged monotube design
- 2 inch body diameter
- Boots included
- No external reservoir
- Yellow finish
- Dividing piston and separate compression and rebound tuning
Rear pair replacement
Rear shocks on a pickup handle the bed load and the rebound after bumps, so both sides should control the rear axle evenly. When one side fails, the rear end can lean, sway or feel unsettled on uneven pavement. Matching both sides helps keep the truck tracking straight and the tires wearing evenly.
Before fitting, check the boot and the rod on the shock already in place, and inspect the upper and lower mounts. A new shock on one side should be matched with its partner in terms of damping feel. Make sure the rear springs and bump stops are in good condition, since they change what the shock must absorb.
- Check both rear springs for sag
- Inspect mounting bushings and bolts
- Confirm boots are seated on both sides
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL24-184960 |
| Shock series | 4600 Series |
| Position | Rear left |
| Shock type | Monotube, gas charged |
| Body diameter | 2 inch |
| Reservoir | None |
| Boots | Included |
| Finish | Yellow |
| Fitment | Direct fit |
Vehicle fitment
It fits 1995–2004 Toyota Tacoma models in Base, Limited, Pre Runner and SR5 trim.
The list does not include the Tacoma from 2005 onward, the T100, or the 4Runner. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Fit this shock in the rear left position, and check the length and mounts against the rear springs before installing. Make sure the boot is in place and undamaged.
What’s included
The product is one rear left monotube shock with boots, under part number BIL24-184960.
