Overview
The Bilstein 25-176124 is a 5165 Series reservoir shock absorber with a remote reservoir, a 46mm ID smooth body and 9.39 in of travel. It is designed as a universal fit for custom lifted trucks and SUVs, and no specific vehicle is named.
The reservoir is a separate chamber connected to the shock, which increases oil capacity for heat dissipation and damping sensitivity. The floating dividing piston sits in the reservoir and allows more shaft movement and wheel travel. The digressive valving system produces full damping right away.
Key features
- Remote reservoir that increases shock oil capacity.
- Floating dividing piston in the reservoir for more shaft movement and wheel travel.
- Digressive valving system that produces full damping right away.
- Triple-C Technology finish, which Bilstein says provides easy care.
- Includes reservoir mounting kit and detailed instructions.
- Includes 1/2 in sleeves.
- Mono tube gas pressure design.
Choosing a reservoir shock
A reservoir shock moves the oil reserve off the body, which gives the damper more room to cool and keeps it working consistently on long descents and rough trails. The trade-off is packaging: the reservoir has to clear the frame, the body and the tire, so route the hose and reservoir before drilling any mount.
Custom builds set their own mounting points, so measure collapsed and extended length at full suspension travel before ordering. Check that the eyes match your brackets and that the shaft will not bottom out at full compression or hit the upper mount at full extension. Reservoir shocks are often installed alongside a steering stabilizer and new bushings during a lift.
- Measure shock length at full droop and full bump
- Confirm reservoir clearance from frame and tires
- Use hose clamps and brackets suited to the reservoir
- Replace worn bushings during installation
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-176124 |
| UPC | 651860661155 |
| Shock series | 5165 Series |
| Collapsed length | 14.21 in |
| Extended length | 23.6 in |
| Travel length | 9.39 in |
| Compression setting | 575 |
| Rebound setting | 1600 |
| Lower mount | 5/8 in eye |
| Upper mount | 5/8 in eye |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | Yes |
| Finish | Zinc plated |
| Mounting parts | 1/2 in sleeves and reservoir mounting kit |
| Charge | Gas charged |
Vehicle fitment
No vehicle is named for this shock. It is a universal fit design for custom lifted trucks and SUVs, and it is a sized shock with specific collapsed and extended lengths. Check those lengths against your mounting points before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The reservoir mounting kit comes with detailed instructions, so follow those for the reservoir mount. Reservoir shocks change the mounting layout, so plan for an alignment check and driveline review after a lift.
What’s included

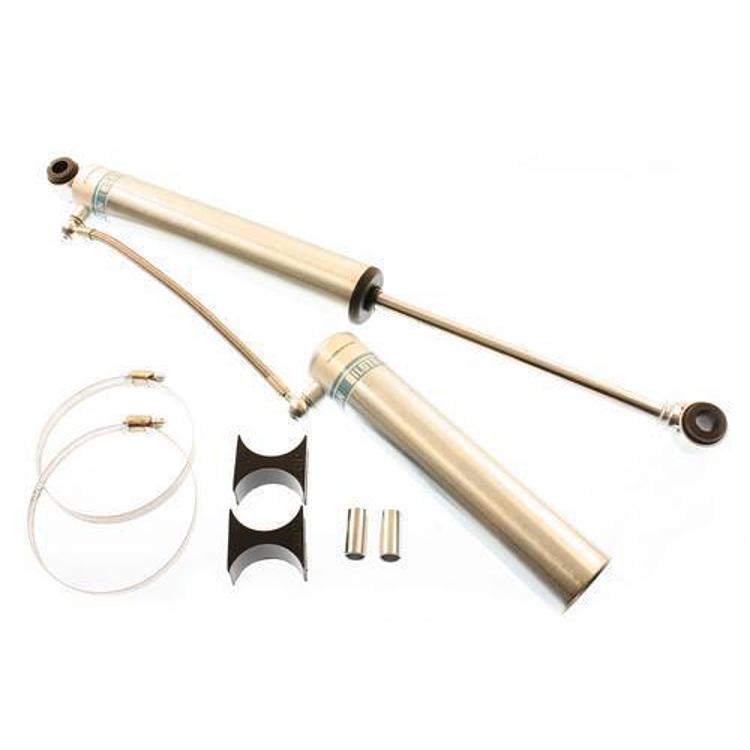

The package includes the shock absorber, the reservoir mounting kit, 1/2 in sleeves and detailed instructions.
Not included: the boot.
