Bilstein 5160 Series Reservoir Shock Absorber – 25-187632

Bilstein

Shop Jeep Wrangler JK Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

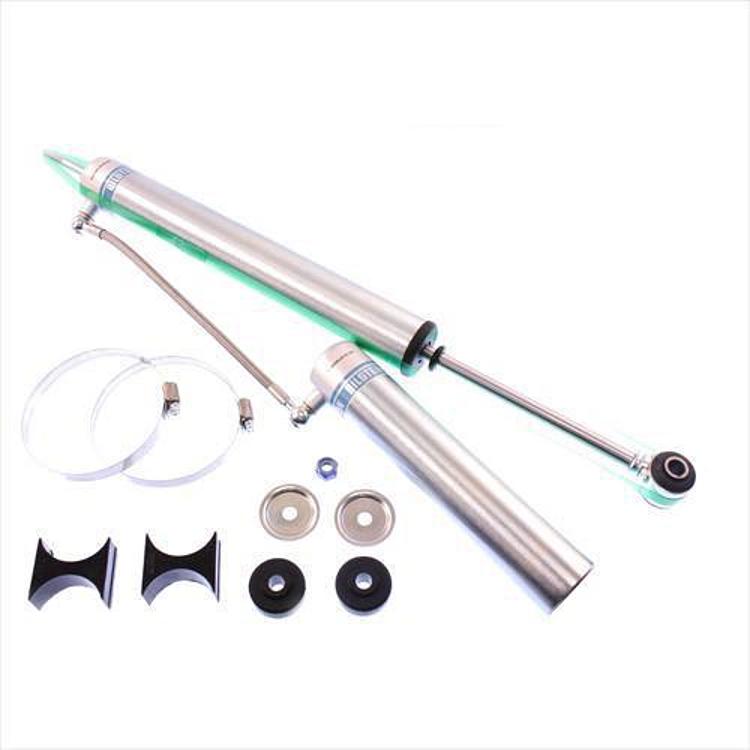

  • Bilstein 5160 Series front reservoir shock absorber, part number 25-187632
  • Bilstein lists fitment for 2007–2018 Jeep Wrangler (JK)
  • Lift range 3.5 to 5 in., collapsed 15.91 in., extended 27.46 in.
  • Upper mount kit and reservoir mount kit included

Description

Overview

The Bilstein 5160 Series front reservoir shock absorber, part number 25-187632, is a gas-charged mono tube shock built for the 2007–2018 Jeep Wrangler (JK). Bilstein lists fitment across the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, including the Unlimited versions of those trims.

Built as a reservoir shock, it moves the damping oil into a remote tank for more capacity and better heat dissipation. It installs in the stock shock location without cutting or welding. The lift range is 3.5 to 5 in., so match it to your suspension height. The Triple-C Technology zinc plated finish is easy to care for.

Key features

  • Remote reservoir for greater shock oil capacity and heat dissipation
  • Digressive valving that delivers full damping capability at once
  • Floating dividing piston in the reservoir for increased wheel travel
  • Reservoir mounting configuration set for each application
  • Upper stem mount with a 12.1mm lower eye
  • Zinc plated Triple-C Technology finish

Wrangler JK front suspension upkeep

On a Wrangler JK, the front shocks work with the track bar, steering components and lift parts, so a new reservoir shock is best judged as part of the whole front end. Off-road trips with heavy throttle and long descents put the most heat into the damper, and a remote reservoir gives that heat more room to leave the oil. On pavement the difference shows up as steadier control over washboard sections and highway ripple.

Before installing, check the upper stem mount, the lower eye and the reservoir bracket for play or cracks. Keep the hose clear of the steering linkage and exhaust heat. Front shocks take steering and braking loads, so a loose or worn part at either end can change how the new unit behaves.

  • Re-check hardware after the first few trail runs
  • Keep the reservoir hose away from heat sources
  • Inspect bump stops and track bar bushings

Specifications

Brand Bilstein
Part number 25-187632
UPC 651860655246
Shock series 5160 Series
Position Front
Collapsed length 15.91 in.
Extended length 27.46 in.
Travel length 11.55 in.
Lower mount Eye 12.1mm
Upper mount Stem
Shaft diameter 14mm
Body design 46mm ID smooth body (non-coilover)
Internal design Mono tube
Reservoir Yes
Finish Zinc plated
Hydraulic / gas charged Gas charged
Lift range 3.5 to 5 in.
Boot included No
Included Upper mount kit and reservoir mount kit
Sold as Each

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler (JK) in the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, plus the Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S and Unlimited X trims.

Wrangler TJ, LJ and JL models are different generations and are not covered, and JK model years outside 2007–2018 are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This is a front reservoir design, and the mounting configuration is set for each vehicle application. Use the upper mount kit and reservoir mount kit supplied with the shock, and follow the instructions that come with them.

What’s included

One Bilstein 5160 Series front reservoir shock with an upper mount kit and a reservoir mount kit.

Not included: a protective boot. This front shock comes without one.

SKU: BIL25-187632 Category:

Specification

Shipping weight 4.62 lbs
Package dimensions 26.80 × 4.20 × 4.20 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201875th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 25-187632 fit my Jeep Wrangler JK?

Yes, if your Wrangler is a 2007–2018 JK in one of these trims. It fits the 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, including Unlimited versions. Confirm your year and trim before you choose it.

Is this a front or rear shock, and what lift height does it cover?

It is a front position shock with a 3.5 to 5 in. lift range, a 14mm shaft diameter and 11.55 in. of travel. Confirm fit for your vehicle's year, model and trim before ordering.

Does the kit include a boot?

No. The kit includes an upper mount kit and a reservoir mount kit, and the boot is not part of it, so plan for a separate boot if your install needs one.

Can a reservoir shock be used alongside a lift on a JK?

Yes, when the lift range matches the shock. Check the lift setting, reservoir clearance and steering components against the new shock before installing it, since a mismatch can strain the mounts.
