Overview

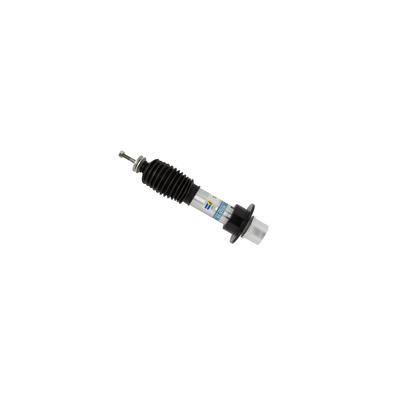

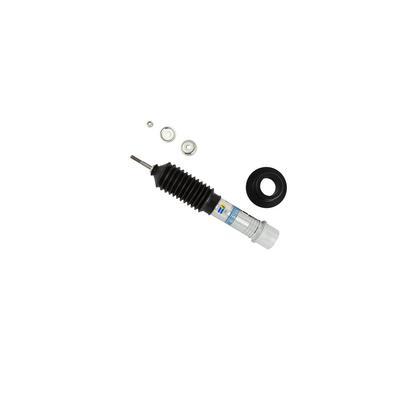

The Bilstein 5100 Ride Height Adjustable 24-282642 is a front shock absorber for the 2002–2007 Jeep Liberty (KJ) and the 2008–2012 Liberty (KK). It is built for trucks and SUVs with a front OE coilover-style suspension and is sold as a single shock.
The body has several snap-ring grooves, so the spring seat can sit in different positions. That gives roughly 1 to 2.5 inches of front lift with OE springs, depending on application. The 46mm body is a monotube gas-pressure design, and the digressive piston pairs with a self-adjusting disc valve to keep damping steady as the load changes and to restore the original ride feel.
Key features
- Snap-ring grooves in the body allow the spring seat to be set for front lift
- Front lift range of 1 to 2.5 in with OE springs
- 46mm monotube gas-pressure construction
- Digressive piston with a self-adjusting deflective disc valve
- Zinc-plated snap-ring grooved body
- Stem top mount and OEM bottom mount
Front lift and spring seat setup
Lift on a coilover-style front end comes from where the spring seat sits, not from a change in the spring rate. Moving the seat up the grooves gives a higher ride height, but it also changes how much spring preload the shock carries at full extension. Pick the groove that gives the stance you want, then measure the wheel gap on both sides to confirm the seat is level.
Lift changes geometry, so expect to adjust front alignment and check steering stops and brake lines after the change. Tires with a different overall diameter also change the lift you see. The coil spring is sourced separately, so match it to the lift and the vehicle’s weight before installing.
- Set both seats to the same groove
- Check the wheel gap on each side
- Inspect brake lines and CV angles after lifting
- Recheck alignment after the first drive
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-282642 |
| Shock series | 5100 Series (ride height adjustable) |
| Position | Front |
| Shock type | Monotube, gas-pressure |
| Body diameter | 46mm (4.0 in) |
| Front lift height | 1 to 2.5 in |
| Extended length | 13.99 in |
| Collapsed length | 10.11 in |
| Top mount | Stem |
| Bottom mount | OEM |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2002–2007 Jeep Liberty (KJ) and the 2008–2012 Jeep Liberty (KK), covering the Liberty from the early KJ years through the KK model years.
The Jeep Cherokee, the Grand Cherokee and the Wrangler are not on this list, and Liberty years before 2002 or after 2012 are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One front shock absorber.
Not included: The coil spring, which must be sourced separately.
Installation notes
The lift comes from moving the spring seat along the snap-ring grooves, so set the seat to the height you need and check the front alignment and ride height after installation.
