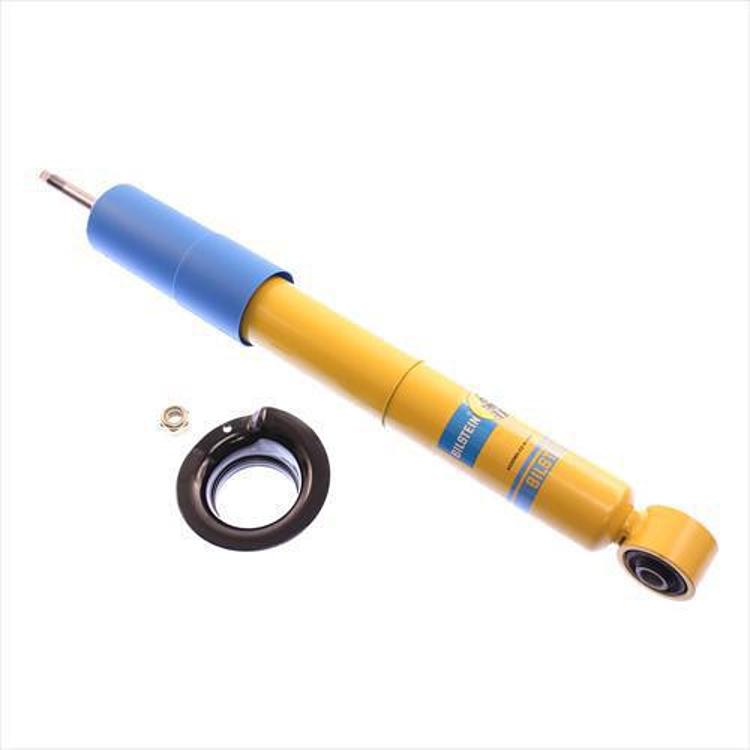

Bilstein 46mm Monotube Shock Absorber – 24-188234

Bilstein

$91.11In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 20, 2026 9:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bilstein 46mm monotube front shock absorber, part 24-188234
  • Fits the 1996–2002 Toyota 4Runner Base, Limited and SR5 trims
  • Gas-charged design with 0 in. lift/drop and yellow finish
  • Old part number F4-BE5-2482-H2

Description

Overview

The Bilstein 46mm Monotube Shock Absorber 24-188234 is a heavy-duty front shock for the 1996–2002 Toyota 4Runner in Base, Limited and SR5 trims. It is a direct-fit front shock, and the former part number F4-BE5-2482-H2 is also carried for reference.

Gas-charged monotube design that moves heat from the oil through the outer shock body, keeping damping steady as temperatures rise. A dividing piston lets the oil expand as it heats and reduces foaming. Piston head compression and rebound damping can be tuned independently, and the tube is made by a special extrusion process with tight tolerance and consistent wall thickness.

Key features

  • Heavy-duty 46mm monotube body
  • Gas-charged design that Bilstein says moves heat from the oil through the shock body
  • Dividing piston that lets the oil expand as temperatures rise
  • Piston head with independently tunable compression and rebound damping
  • Tube made by a special extrusion process for tight tolerance and consistent wall thickness
  • Yellow finish
  • Former part number F4-BE5-2482-H2

Heat control on 4Runner shocks

Shock damping changes as oil heats, and a 4Runner that sees steep grades, dusty trails or repeated bumps will push its shocks harder than a daily commute. A gas-charged monotube design helps by giving the oil room to expand, so the damping stays closer to its setting over time. Keeping the shock cool, and not stacking heavy loads on a worn shock, helps it perform as intended.

Front shocks on these trucks work with the coil springs, upper mounts and bushings, so a new shock will only feel right when those parts are sound. Check the steering linkage and tie rod ends at the same time, since they affect how loads move through the front end.

  • Watch for oil spotting on the shock body
  • Check upper mount bolts after the first few trail outings
  • Inspect the bushings for cracking or play
  • Replace shocks in pairs for matched handling

Specifications

Brand Bilstein
Product line Bilstein 4600 Series
Part number 24-188234
UPC 651860638850
Old part number F4-BE5-2482-H2
Body size 46mm
Type Monotube
Charge Gas charged
Position Front
Finish Yellow
Lift/Drop 0 in.
Fitment Direct fit

Vehicle fitment

It fits the 1996–2002 Toyota 4Runner in Base, Limited and SR5 trims.

Other Toyota 4Runner years and other Toyota models are not covered by this list, and only the trims named above are shown. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Other Toyota 4Runner years and Toyota models are outside this fit. Confirm your vehicle’s year, model and trim before ordering.

Not included: Check the package for mounting hardware and brackets before starting the installation.

SKU: BIL24-188234 Category:

Specification

Shipping weight 5.10 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1996–2002Base, Limited, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which vehicles does the Bilstein 24-188234 fit?

The 1996–2002 Toyota 4Runner fits in the Base, Limited and SR5 trims. Other 4Runner years and models are outside that fit, so confirm your vehicle's year, model and trim before ordering.

Is 24-188234 the same as the old part number F4-BE5-2482-H2?

F4-BE5-2482-H2 is the former part number for this Bilstein shock. Compare the former and current shock dimensions before choosing it, since the two numbers may not describe identical shocks.

What does the 46mm mean for this shock?

The 46mm figure is the body size of this monotube shock. Compare stroke, length and mounting dimensions with your original shock before choosing it, since those measurements decide whether the fit suits your truck.

Does this shock have a reservoir?

This shock is a gas-charged monotube design, which keeps the oil from foaming as it heats. Confirm the reservoir arrangement against your original shock before installing, since the shock's construction determines how it mounts.

Does replacing a front shock change the alignment?

It can. Shocks affect how the wheel moves, so a new shock may change ride height slightly. Check alignment after installation, especially if the front springs or bushings were also replaced.
