Overview

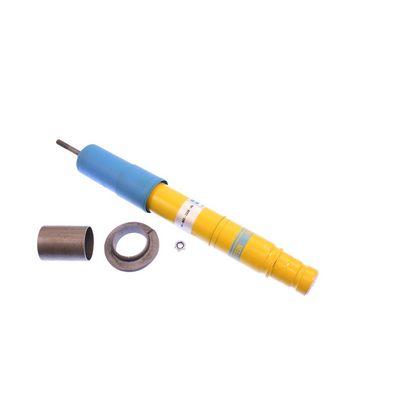

The Bilstein 4600 Series front shock, part number BIL24-023382, is a gas charged monotube shock with a 2 inch body diameter and boots included, finished in yellow. It is a direct fit for the 1997 to 2001 Honda CR-V in EX, LX and SE trim.
The shock has no external reservoir. In Bilstein’s monotube gas pressure design, the heat from the oil moves to the outer surface of the body and is released there, so the shock runs more efficiently over time.
A dividing piston in the tube lets the oil expand as heat builds, so foaming and thinning are held back and the full damping remains as temperatures rise. The piston head can be tuned separately for compression and rebound, which Bilstein says gives a good balance of comfort and performance.
The tube is seamless and made by a special extrusion process with tight tolerances and consistent wall thickness. The design uses relatively few parts compared with twin tube or road sensing shocks, which adds to its durability.
Key features
- Front position
- Gas charged monotube design
- 2 inch body diameter
- Boots included
- No external reservoir
- Yellow finish
- Dividing piston and separate compression and rebound tuning
Front suspension wear checks
The front shocks on a compact crossover handle most of the work during braking and cornering, and they keep the tires in contact with the road over broken pavement. A gas charged monotube design manages heat by moving it through the body, which helps the damping stay consistent during longer drives. Wear often appears as a floating feel, nose dive or uneven tire wear.
Front shocks are normally replaced as a pair. When fitting, check the length and mounting points against the springs, and make sure the boots are seated so dirt does not reach the rod seal. Replacing the shocks together keeps front ride height and damping balanced. Inspect the springs and bushings during the same job.
- Check spring height before fitting
- Inspect the upper and lower mounts
- Look for oil on the outer body
- Recheck fasteners after the first short drive
Specifications
| Brand | Bilstein |
|---|---|
| Part number | BIL24-023382 |
| Shock series | 4600 Series |
| Position | Front |
| Shock type | Monotube, gas charged |
| Body diameter | 2 inch |
| Reservoir | None |
| Boots | Included |
| Finish | Yellow |
| Fitment | Direct fit |
Vehicle fitment
It fits 1997 to 2001 Honda CR-V models in the EX, LX and SE trims.
The list does not include CR-V models from 2002 onward or any other Honda model. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front shocks are normally replaced as a pair. Check the length and mounting points against the springs before installing, and check the boots once the shock is in place.
What’s included
The product is one front monotube shock with boots, under part number BIL24-023382.
