Bilstein 5100 Series Shock Absorber – 24-186810

Bilstein

$103.81In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 2:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Shock for the 2004-2006 Jeep Wrangler LJ and 1997-2006 Wrangler TJ
  • 46mm smooth body monotube, gas pressure design
  • Collapsed 13.06 inches, extended 21.18 inches, travel 8.12 inches
  • Boot included; zinc plated

Description

Overview

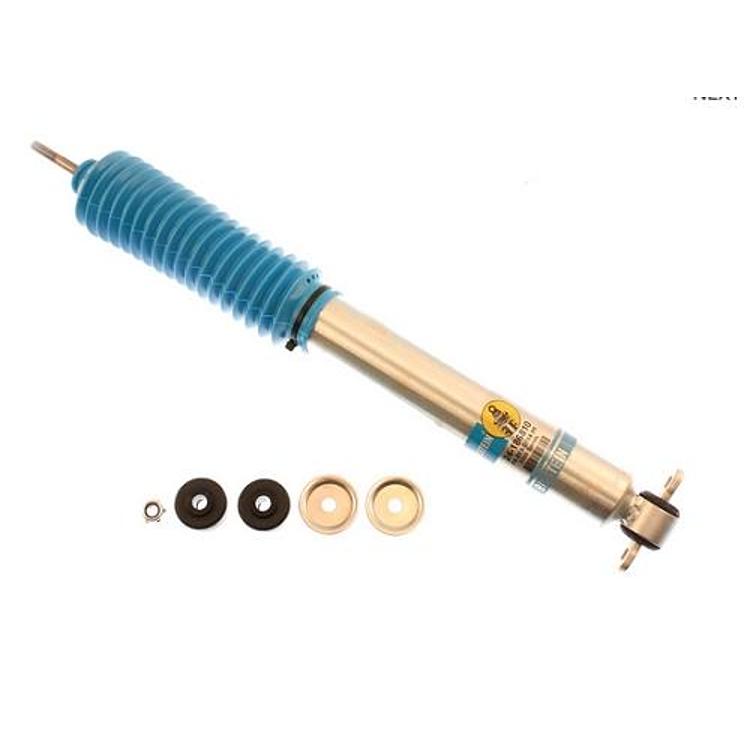

The Bilstein 5100 Series shock absorber, part number 24-186810, is a monotube gas-pressure shock with a 46mm smooth body for the 2004-2006 Jeep Wrangler (LJ) and 1997-2006 Jeep Wrangler (TJ). It suits lifted Jeeps and prerunners.

The 5100 Series uses a single tube, high gas pressure design aimed at steady damping and long service life. Self-adjusting deflecting disc valving, a high-flow piston, independent rebound and compression tuning, and a larger working piston area are built in. The shock is non-coilover, has no reservoir and includes a boot. Collapsed length is 13.06 inches, extended length is 21.18 inches and travel is 8.12 inches.

Key features

  • Monotube, high gas pressure construction
  • 46mm ID smooth body, non-coilover
  • Collapsed length 13.06 inches, extended length 21.18 inches, travel 8.12 inches
  • Bar pin lower mount and stem upper mount
  • 14mm shaft diameter
  • Zinc plated finish; boot included; no reservoir
  • Independent rebound and compression tuning.

Before you buy

Shock position matters on a Wrangler, so confirm whether the part is for the front or rear before buying. Front and rear shocks often differ in length and mount style, and a wrong choice can bind at full droop or limit steering. If the Jeep has been raised, measure the existing shock’s collapsed and extended lengths and compare them with the new unit before ordering.

Replace shocks in pairs on the same axle to keep the ride even. Look for oil on the body, a loose or clunking feel over bumps, or uneven tire wear as signs the old unit is worn. Inspect the bar pin bushings and the stem mount at the same time, since worn rubber can make a good shock feel faulty.

Specifications

Brand Bilstein
Part number 24-186810
UPC 651860579955
Shock series 5100 Series
Internal design Monotube, gas charged
Body design 46mm ID smooth body (non-coilover)
Collapsed length 13.06 inches
Extended length 21.18 inches
Travel length 8.12 inches
Lower mount Bar pin
Upper mount Stem
Shaft diameter 14mm
Reservoir No
Finish Zinc plated
Boot included Yes
Fit type Direct fit

Vehicle fitment

It fits the 2004-2006 Jeep Wrangler (LJ) in the Unlimited and Unlimited Rubicon trims, and the 1997-2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. Confirm whether this part number is a front or rear shock before ordering.

The fit covers Wrangler LJ and TJ models only, so confirm your vehicle’s year, model and trim before ordering.

Installation notes

Suspension components affect steering, braking and handling, so professional installation is recommended. Support the vehicle on jack stands rated for its weight, never on a jack alone. Tighten every fastener to torque values suited to its size, using the hardware called for in the fitting steps. Re-check all fasteners after the first few miles of driving. Have the alignment checked after any suspension work, and confirm brake line, cable and driveshaft clearance through the full range of travel. Check local regulations on vehicle height and lift limits.

What’s included

It includes one shock absorber with a boot. Confirm the mounting hardware you need is on hand before starting.

SKU: BIL24-186810 Category:

Specification

Shipping weight 5.08 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeeps does the Bilstein 24-186810 fit?

The 24-186810 fits the 2004-2006 Jeep Wrangler (LJ) and 1997-2006 Jeep Wrangler (TJ). Trims covered include Unlimited, Rubicon, Sahara and Sport, along with the other trims named above.

What are the lengths of the 24-186810 shock?

The collapsed length is 13.06 inches and the extended length is 21.18 inches. That gives a listed travel length of 8.12 inches.

Does the Bilstein 24-186810 include a boot?

Yes. The shock includes a boot. It has a 46mm smooth body, a 14mm shaft, a zinc plated finish and no reservoir.

What mounts does the 24-186810 use?

The shock has a bar pin lower mount and a stem upper mount. It is designed for lift kits that use the stock OEM mounting configuration.

How do I tell if a shock needs replacing?

Look for fluid leaking down the body, a bouncy or nose-diving ride, uneven tire wear or noise over bumps. Compare the old unit's length and mounts before ordering, and inspect the bushings at the same time.
