Bilstein 46mm Monotube Shock Absorber – 24-014694

Bilstein

$85.77In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 20, 2026 4:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear heavy duty 46mm monotube gas charged shock absorber
  • Fits 1990–1995 Toyota 4Runner (SR5)
  • Part number 24-014694, UPC 651860652214
  • Yellow finish, 0 in. lift/drop, direct fit

Description

Overview

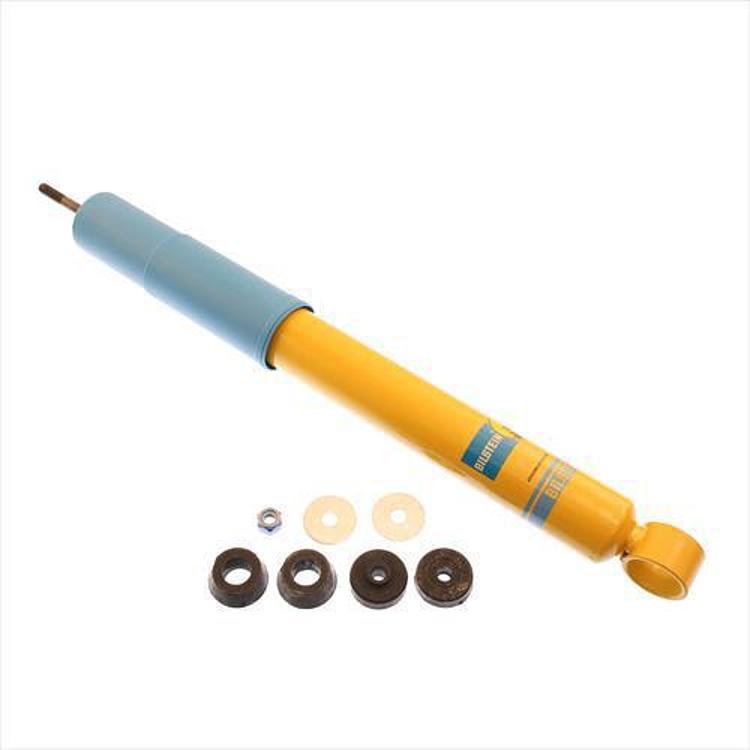

The Bilstein 24-014694 is a heavy duty 46mm monotube gas charged shock absorber for the rear of the 1990–1995 Toyota 4Runner (SR5). It belongs to Bilstein’s 4600 Series and is a direct fit replacement with no lift or drop (0 in. lift/drop).

Bilstein builds this shock around a single tube that carries heat from the damping oil out to the shock body. A dividing piston lets the oil expand as it warms, which limits foaming and viscosity loss so damping holds steady as temperatures climb. It suits a 4Runner owner replacing worn rear shocks with a yellow, heavy duty part that keeps the original mounting positions.

Key features

  • Heavy duty 46mm monotube body with gas charged damping
  • Dividing piston allows the oil to expand as heat builds, which Bilstein says prevents aeration and viscosity loss
  • Seamless tube made by an extrusion method that Bilstein says holds a tight peak-to-valley tolerance
  • Piston head lets compression and rebound damping be tuned separately
  • Digressive piston design with fewer parts than conventional twin tube shocks
  • Rear position, direct fit, yellow finish

Choosing a heavy duty rear shock

Heavy duty shocks are built for loads and rough use, and a rear unit controls the body’s motion over bumps and under braking. A monotube design keeps the damping oil cool and steady, which matters on long descents or repeated trail runs. When choosing a replacement, match the mount type and lengths to the original shock, since good damping does not correct a mismatch.

Rear shocks should be replaced in pairs so both sides damp the same way. Check the rear springs and bump stops when the shocks are swapped, since worn springs change how the shock works. Keep the body away from heat, and retighten the mounting hardware after the first few drives.

  • Match mount type and length to the original
  • Replace rear shocks in pairs
  • Inspect rear springs and bump stops
  • Retighten mounts after the first few drives

Specifications

Brand Bilstein
Part number 24-014694
UPC 651860652214
Shock series 4600 Series
Size and type 46mm monotube
Gas charge Gas charged
Position Rear
Fitment type Direct fit
Lift height 0 in. lift/drop
Finish Yellow
Old part numbers BILF4-B46-1469-H0, BILF4-B46-1469-H1

Vehicle fitment

The fitment is 1990–1995 Toyota 4Runner (SR5) for this rear shock. It is a direct fit replacement, so it swaps in for the original rear shock without modification.

The list does not cover other 4Runner model years or other Toyota models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Keep a gas charged shock away from heat and do not cut or open the body. Compare the upper and lower mounting points with the shock being replaced before fitting the new unit.

What’s included

One Bilstein 46mm monotube shock absorber, part number 24-014694. No other pieces are named for this part.

SKU: BIL24-014694 Category:

Specification

Shipping weight 4.47 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1990–1995SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-014694 fit a 1990–1995 Toyota 4Runner?

Yes. The 1990–1995 Toyota 4Runner (SR5) is the fitment for this rear shock absorber, and it is a direct fit replacement. Check your year, model and trim before ordering.

What is the Bilstein 24-014694?

It is a heavy duty 46mm monotube gas charged shock absorber from the 4600 Series. It is a rear position unit with a yellow finish and no lift or drop.

What are the old part numbers for this shock?

Two earlier part numbers are recorded for this shock: BILF4-B46-1469-H0 and BILF4-B46-1469-H1. Use them to match older catalogs or markings, and use 24-014694 for the current part.

How can I tell a rear shock is worn?

Watch for oil residue on the tube, a bouncy rear end after bumps, or cupping on the rear tires. Push down on the rear bumper and release; a shock that keeps bouncing needs replacing. Check the bushings at the same time.
