Overview

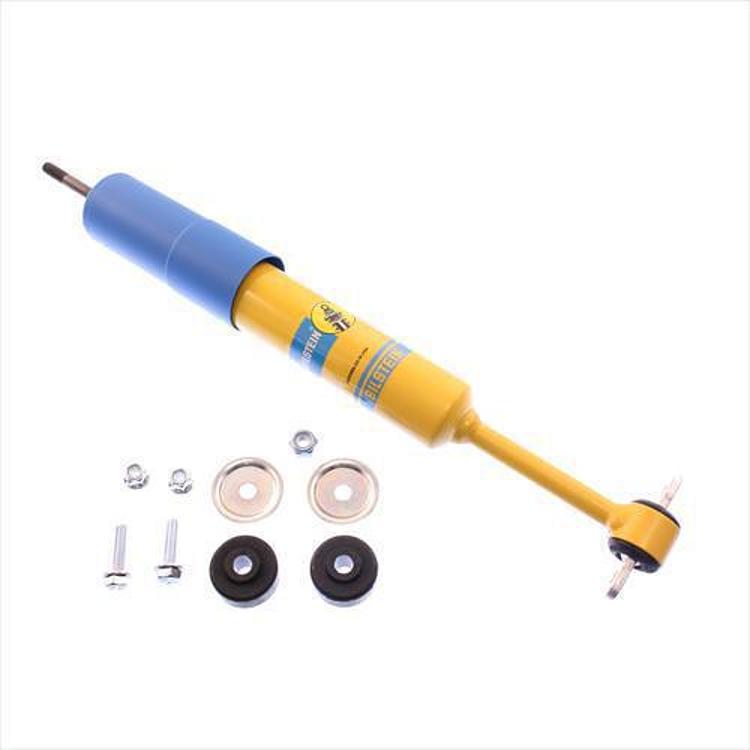

The Bilstein 46mm Monotube Shock Absorber, part number 24-021319, is a front gas-charged monotube shock for the 1995–2005 Ford Explorer, the 1995–2001 Ford Explorer Sport (Base) and the 1997–2001 Mercury Mountaineer (Base). The name gives a 46mm monotube size, and it has a yellow finish, a front position and a lift height of w/0 – 3 in. Lift.
Gas-charged monotube construction carries heat from the oil through the shock body, where it dissipates. A dividing piston allows the oil to expand as it warms, which keeps foaming and thinning from reducing damping. Two older part numbers, BILF4-B46-2131-H1 and BILF4-B46-2131-H2, are also shown, which helps match this shock to older catalog references.
Key features
- Gas-charged monotube design that moves heat from the oil to the outer shock body
- Dividing piston that accommodates oil expansion as temperatures rise
- Seamless tube formed with a special extrusion method for tight tolerances and even wall thickness
- Piston head with independently tuned compression and rebound damping
- Fewer parts than most twin tube and road sensing shocks, Bilstein says
- Two older part numbers cross-referenced: BILF4-B46-2131-H1 and BILF4-B46-2131-H2
Choosing a front shock
A front shock damps the suspension as the wheel moves up and down, which influences how the truck tracks over washboard roads and how it responds to braking. Because the front end steers, a worn shock can make the wheel feel light or cause the tire to cup. Look at the old unit for leaking fluid, a loose mount or a bushing that has cracked before deciding what else needs attention.
Front shocks are usually replaced on both sides together so that damping matches left and right. Pairing a new shock with worn ball joints or tie rod ends can hide the fault instead of fixing it, so inspect those parts too. Once installed, check the lug nuts and the mounting hardware after the first few drives.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-021319 |
| UPC | 651860604930 |
| Series | 4600 Series |
| Body size | 46mm |
| Type | Monotube |
| Position | Front |
| Hydraulic / gas charged | Gas charged |
| Finish | Yellow |
| Lift height | w/0 – 3 in. Lift |
| Fitment type | Direct Fit |
| Old part numbers | BILF4-B46-2131-H1, BILF4-B46-2131-H2 |
Vehicle fitment
It fits the 1995–2005 Ford Explorer in Eddie Bauer, Limited, NBX, Postal, XL, XL Fleet, XLS, XLS Sport, XLT and XLT Sport trims, the 1995–2001 Ford Explorer Sport in Base trim, and the 1997–2001 Mercury Mountaineer in Base trim.
The Explorer Sport Trac and model years after 2005 are not in this fitment set. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the upper and lower mounts on your old front shock with this unit before removal. Front shocks affect steering and alignment, so have the front end checked after installation.
What’s included
One front shock absorber with a yellow finish.
Not included: mounting hardware and other front suspension parts. Check your existing hardware before installing.
