Overview
The Bilstein 25-229745 is a rear 5160 Series stock mount remote reservoir shock absorber, sold as a direct-fit shock for 2007–2018 Jeep Wrangler (JK) models. Bilstein builds the 5160 Series for each specific vehicle application, so owners can add a reservoir shock without the fabrication that high performance reservoir shocks usually require.
The monotube body uses a 46mm digressive piston with self-adjusting deflective disc valving. The remote reservoir adds cooling capacity and increased shock travel compared with a shock that has no reservoir.
Key features
- Stock mount remote reservoir design built for direct fit on the listed Wrangler JK applications
- Monotube body with a 46mm digressive piston
- Self-adjusting deflective disc valving
- Remote reservoir adds cooling capacity and increased shock travel
- Gas charged construction
- Zinc plated finish
Reservoir shock maintenance
A remote reservoir separates the gas and oil storage from the shock body, which helps the shock keep its damping steady when it runs hot. On a Wrangler that sees trail use, the reservoir is especially useful during long climbs or repeated high-speed bumps where heat builds up quickly.
Reservoir shocks have more parts to look after than a standard shock. Check the hose or line connection, the reservoir mount and the body for oil seepage after each run. A small amount of dried dirt around a fitting is normal, but fresh wetness usually means a seal needs attention.
- Tighten reservoir mount bolts after the first few drives
- Keep the reservoir clear of rocks and mud that could strike it
- Inspect the upper and lower bushings for wear at every service
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-229745 |
| UPC | 651860716800 |
| Shock series | 5160 Series |
| Position | Rear |
| Fitment type | Direct fit |
| Lift height | 0 in. lift/drop |
| Charge | Gas charged |
| Body | Monotube |
| Piston | 46mm digressive |
| Valving | Self-adjusting deflective disc |
| Collapsed length | 16.12 in (409.5 mm) |
| Extended length | 27.42 in (696.5 mm) |
| Finish | Zinc plated |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK), including Unlimited versions of the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, along with the base Wrangler trims.
This fitment does not cover earlier Wrangler generations such as the TJ or LJ, or the newer JL generation. Confirm your vehicle’s year, model and trim before ordering.

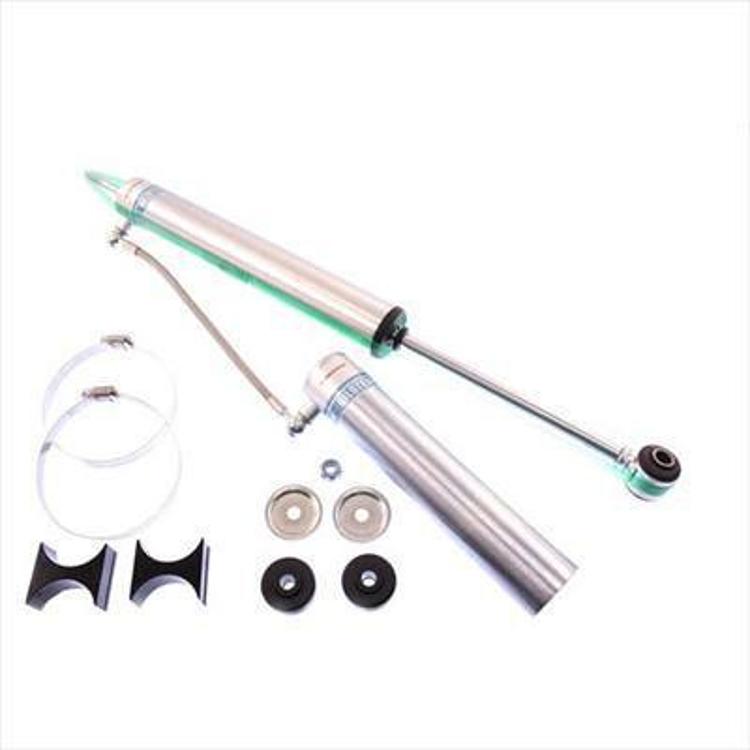

What’s included
Look over the package contents before beginning the install.
Not included: Check the reservoir line and mounting hardware your installation requires before fitting.
