Overview
The Bilstein 25-177480 is a 5165 Series reservoir shock absorber designed for custom lifted trucks and SUVs, with no year, make or model tied to it. It measures 12.8 in. collapsed, 21.16 in. extended and 8.36 in. of travel, so compare those figures with your lifted vehicle’s mounting points before ordering.
The 5165 Series pairs a mono tube body with a remote reservoir that adds shock oil capacity for heat dissipation and damping sensitivity. Digressive valving delivers full damping right away, and the floating dividing piston in the reservoir allows more wheel travel and shaft movement. The shaft is 14mm, and the body is a 46mm ID smooth body, non-coilover.
Key features
- Remote reservoir with a floating dividing piston
- Digressive valving for immediate full damping
- Upper mount kit, 1/2″ sleeves and reservoir mounting kit included
- Triple-C Technology zinc plated finish
- Gas charged mono tube design
- Compression rating 2400 and rebound rating 3665.
Choosing a remote reservoir shock
A remote reservoir shock separates the gas and oil storage from the main body, which gives the piston more room to work. On lifted trucks that separation helps the shock hold steady damping during repeated rough sections and long highway runs. Reservoir shocks are usually replaced in pairs, and the reservoir should sit where it clears tires, brackets and the frame at full compression.
Before choosing, measure your existing mounts and think about how much the suspension has been raised, since a taller lift changes how much stroke the shock needs. Keep the reservoir hoses and mounting clamps free of rubbing contact during the first drives.
- Check reservoir clearance at full compression
- Replace both sides together for matched damping
- Inspect mounting sleeves after the first trail runs
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 25-177480 |
| UPC | 651860665061 |
| Series | 5165 Series |
| Collapsed length | 12.8 in. |
| Extended length | 21.16 in. |
| Travel length | 8.36 in. |
| Compression | 2400 |
| Rebound | 3665 |
| Lower mount | 5/8″ eye |
| Upper mount | Stem |
| Shaft diameter | 14mm |
| Body design | 46mm ID smooth body (non-coilover) |
| Internal design | Mono tube |
| Reservoir | Yes |
| Charge | Gas charged |
| Finish | Zinc plated |
| Boot included | No |
| Mounting parts included | Upper mount kit, 1/2″ sleeves and reservoir mounting kit |
Vehicle fitment
No vehicle is tied to this part number. It is intended for custom lifted trucks and SUVs in general, so confirm mount locations and dimensions on your own vehicle. Compare the collapsed and extended lengths with your lift height before ordering.
Universal fit does not guarantee a match for every lifted truck or SUV. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This shock has a 5/8″ eye at the lower mount and a stem at the top. The upper mount kit, 1/2″ sleeves and reservoir mounting kit come with it, so use those parts for the mounting. Measure your existing mounts against the listed collapsed and extended lengths before removing the old shock. Gas charged shocks are pressurized, so wear eye protection and never heat or puncture the body.
What’s included

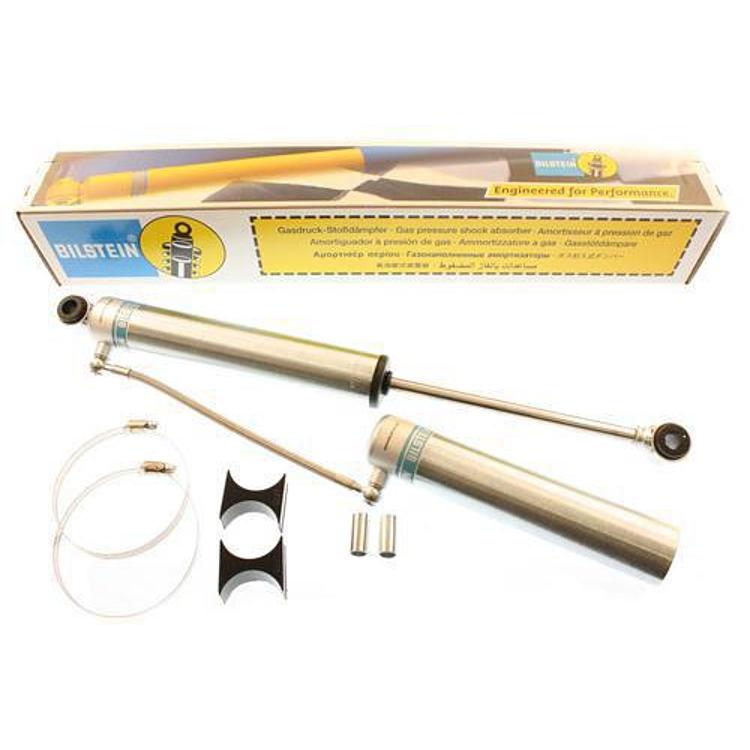

Bilstein 5165 Series reservoir shock absorber, upper mount kit, 1/2″ sleeves, reservoir mounting kit, and detailed instructions.
Not included: A boot.
