Overview

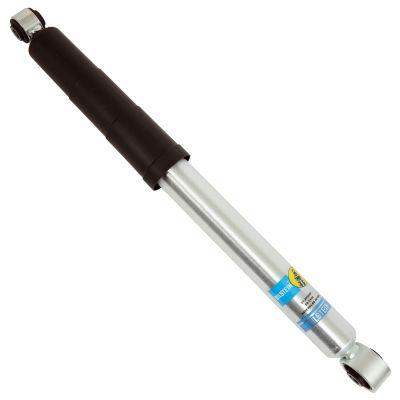

The Bilstein 5100 Series 24-293082 is a rear shock absorber for the 2007–2013 Chevrolet Silverado 1500 and the 2007–2013 GMC Sierra 1500. It is a direct-fit upgrade for a rear lift of up to 1 inch.
The shock has a 46mm zinc-plated smooth body and a monotube design. Its collapsed length is 16.53 inches and its extended length is 25.39 inches. The piston is digressive, and each shock is tuned for its application so the damping suits a lifted pickup.
Key features
- Rear lifted height up to 1 in
- Zinc-plated 46mm smooth body
- Monotube design with a digressive piston
- Collapsed length 16.53 in and extended length 25.39 in
Damping on a lifted pickup
Rear shocks do more work on a lifted pickup than on a stock truck. Raising the rear changes the angle of the springs and the length the damper must cover, so the shock sees different loads on washboard roads, during braking and when the bed is loaded. A damper matched to the lift keeps the rear tires in contact with the ground and limits the bounce that can make a half-ton feel loose at highway speed.
When choosing a rear shock for a lifted Silverado or Sierra, compare the collapsed and extended lengths with the unit you are removing before ordering. Rear lift kits often come with new springs or spacers, and a shock that is too short can bottom out or strain its mounts. Worn bushings, leaking fluid and a rear end that keeps bouncing after bumps are common signs the old unit needs replacing. Shocks are normally replaced in pairs so both sides damp the same way.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-293082 |
| Shock series | 5100 Series |
| Position | Rear |
| Rear lifted height | Up to 1 in |
| Collapsed length | 16.53 in |
| Extended length | 25.39 in |
| Finish | Zinc plated |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007 through 2013 Chevrolet Silverado 1500 and the 2007 through 2013 GMC Sierra 1500, in the same model years for both trucks.
Silverado and Sierra 1500 models from 2014 onward, the 2500 and 3500 trucks, and the Silverado Classic are not on this list. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear shock absorber.
