Overview

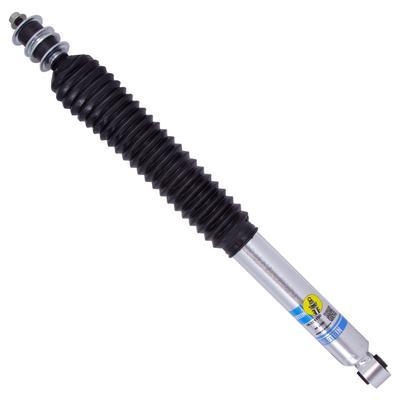

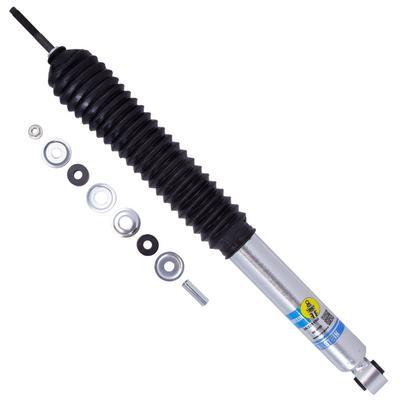

The Bilstein 5100 Series shock absorber, part number 24-321150, is a rear monotube shock for the 2007-2021 Toyota Tundra, intended for trucks with up to 1 inch of lift. It is a direct-fit option for lifted trucks and SUVs.
The gas-charged monotube design is built for steady damping that holds up under repeated use without fade. The velocity-sensitive, digressive piston responds to changing road conditions, and each 5100 shock is tuned for its specific application. It suits leveled or mildly lifted Tundras that need a replacement rear shock with a 46mm zinc-plated body.
Key features
- Rear shock for the 2007-2021 Toyota Tundra, for up to 1 inch of lift
- Monotube design with gas charging, which Bilstein says gives consistent fade-free performance
- 46mm zinc-plated smooth body
- Velocity-sensitive, digressive piston described by Bilstein as reacting to changing road conditions
- Stem top mount and eyelet bottom mount
- Tuned by Bilstein for the specific application
- Sold individually
Choosing shocks for a lifted Tundra
A shock absorber controls how quickly the suspension compresses and rebounds, which shapes ride comfort, body control and tire contact on rough ground. On a lifted truck the suspension geometry changes, so the shock’s travel and mounting angle matter more than they did at stock height. A shock that works well on a leveled Tundra may feel firmer or looser once the ride height is raised.
Rear shocks are often replaced alongside the fronts so the truck rides evenly at both ends. Worn bushings, springs and control arms also affect how a shock performs, so inspecting them during the same job saves a second teardown. Look for fluid streaks on the shock body, a bouncing ride after bumps, or uneven tire wear as signs the old unit has lost its damping.
- Check both rear shocks for leaks at the same time
- Inspect eyelet and stem bushings for cracks
- Confirm brake line and wiring clearance through full suspension travel
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-321150 |
| Shock series | 5100 Series |
| Shock type | Monotube, gas charged |
| Position | Rear |
| Body diameter | 46mm |
| Body finish | Zinc plated, smooth body |
| Top mount | Stem top |
| Bottom mount | Eyelet |
| Collapsed length | 15.33″ |
| Extended length | 24.80″ |
| Lift height | Up to 1 inch |
| Sold as | Individually |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2007-2021 Toyota Tundra in the 1794 Edition, Base, Limited, Nightshade, Platinum, SR, SR5 and Trail trims.
That does not cover other Tundra generations outside 2007-2021 or the front position. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A rear shock affects ride and handling, so have a qualified shop fit it if you are unsure. Raise the truck on jack stands rated for its weight before removing the old shock. Use the hardware the instructions call for and torque the mounting bolts to the listed values. Check the mounting bolts again after a short drive. Look over the brake lines and wiring near the shock for clearance as the axle moves through its travel. Check local rules before changing the vehicle’s ride height.
What’s included
One rear shock absorber is included, sold individually. Check the package contents against your installation before starting.
