Artec Dana 30/44 Truss Upper Control Arm Brackets with Daystar Bushings – TJ3005

Artec Industries

$65.95Currently unavailable
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 20, 2026 4:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec Industries TJ3005 truss upper control arm brackets for Dana 30 and Dana 44 axles
  • Two pieces included, cut from 1/4 inch mild steel
  • Passenger side upper control arm mount with reinforcement around the bushing sleeve
  • Requires a weld-in sleeve and bushing; factory style bushings do not fit

Description

Overview

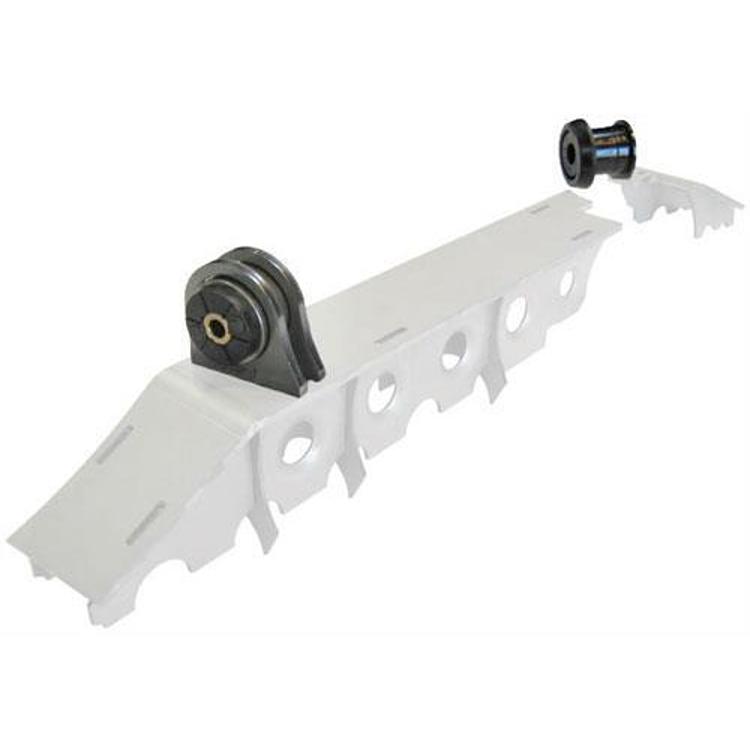

The Artec Industries TJ3005 is a pair of truss upper control arm brackets for Dana 30 and Dana 44 axles, with two pieces included. Used with an Artec Dana 30 Truss or Rubicon 44 Truss, the bracket gives an accurate location for the passenger side upper control arm mount and replaces the stock upper control arm bracket.

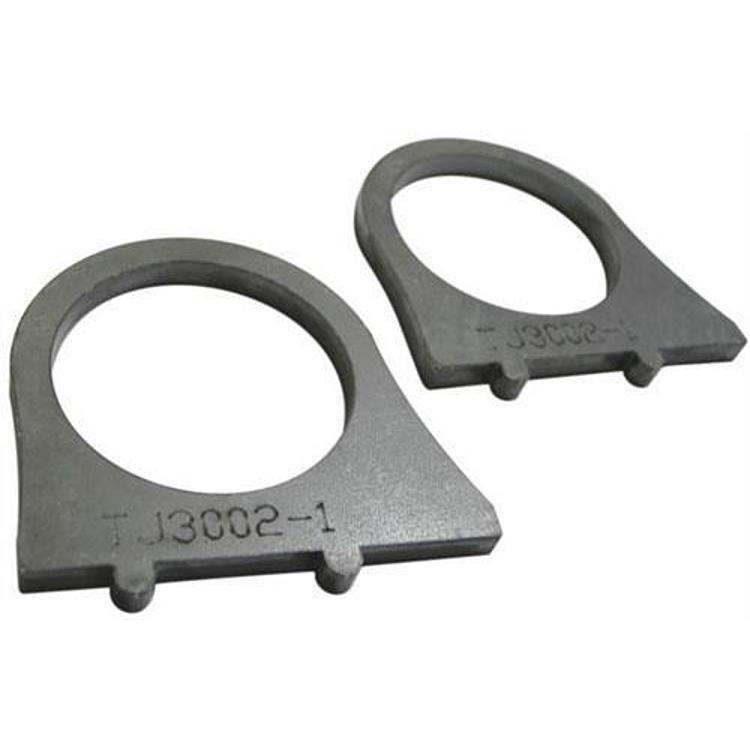

The bracket is cut from 1/4 inch mild steel with precision CNC work and has laser etched part numbers to make installation easier. The structure wraps around the bushing sleeve for greater rigidity and reinforces an area that is prone to flex and abuse. Daystar Bushings or Currie Johnny Joints complete the mount.

Key features

  • Designed for stock upper control arm bracket replacement when using a truss.
  • Structure wraps around the bushing sleeve for greater rigidity.
  • Precision CNC cut from 1/4 inch mild steel.
  • Laser etched part numbers for easy installation.
  • Reinforces an area prone to flex and abuse.
  • Designed using CAD files.

Weld-in sleeve considerations

A truss upper control arm mount carries the forces from the axle and the arm, so the bracket and sleeve work as one structure. Reinforcing the bracket around the bushing sleeve helps resist flex, but the weld area still needs careful preparation and a clean fit to the axle tube.

Welding a sleeve in place requires good fit-up, consistent heat and time for the weld to cool before loading the arm. Check that the bracket sits square and that the arm clears the track bar and steering components through its full travel. A small misalignment at this stage shows up later as bushing wear.

After off-road use, inspect the welds, the bracket edges and the bushing sleeve for cracks, play or movement. Replace worn bushings during routine service, and keep the upper control arm and mounting bolts tight. Taking these steps helps the truss setup stay predictable on the trail.

  • Check weld quality after the parts cool
  • Confirm clearance with the track bar
  • Inspect bushings during routine service

Specifications

Brand Artec Industries
Part number TJ3005
UPC 816791024251
Axles Dana 30 and Dana 44
Material 1/4 inch mild steel
Quantity 2 pieces
Side Passenger side

Vehicle fitment

No vehicle, model year or chassis code is attached to this bracket. It is tied to Dana 30 and Dana 44 axles and to Artec truss parts, so confirm your axle and truss setup match before installing.

Confirm your vehicle’s year, model and trim before ordering. Factory style bushings do not fit this mount.

Installation notes

This bracket needs a weld-in sleeve and bushing, which are not included. Have an experienced welder weld the sleeve and bracket in place.

What’s included

Two bracket pieces are included.

Not included: the weld-in sleeve and bushing, plus the Daystar Bushings or Currie Johnny Joints needed to complete the mount.

SKU: A/ITJ3005 Category:

Specification

Shipping weight 3.00 lbs
Package dimensions 5.00 × 5.00 × 5.00 in
brands

Questions & Answers

What is the Artec TJ3005?

The TJ3005 is a set of two Artec Industries truss upper control arm brackets for Dana 30 and Dana 44 axles. They are cut from 1/4 inch mild steel and are meant for the passenger side upper control arm mount when running a truss.

Will the TJ3005 fit my Jeep?

No vehicle, model year or chassis code is named. The bracket is tied to Dana 30 and 44 axles and to Artec truss parts. Confirm that your axle and truss setup match before installing, because no vehicle fitment list is provided.

Do factory bushings work with this bracket?

No. Factory style bushings do not fit this mount. Use Daystar Bushings or Currie Johnny Joints with a weld-in sleeve and bushing to complete it.

Should the upper control arm mounts be checked after off-road use?

Yes. Inspect the welds, the bracket edges and the bushing sleeve after hard runs, since the mount takes load from the axle. Look for cracks, play or movement, and address them before the next trip.
