Overview

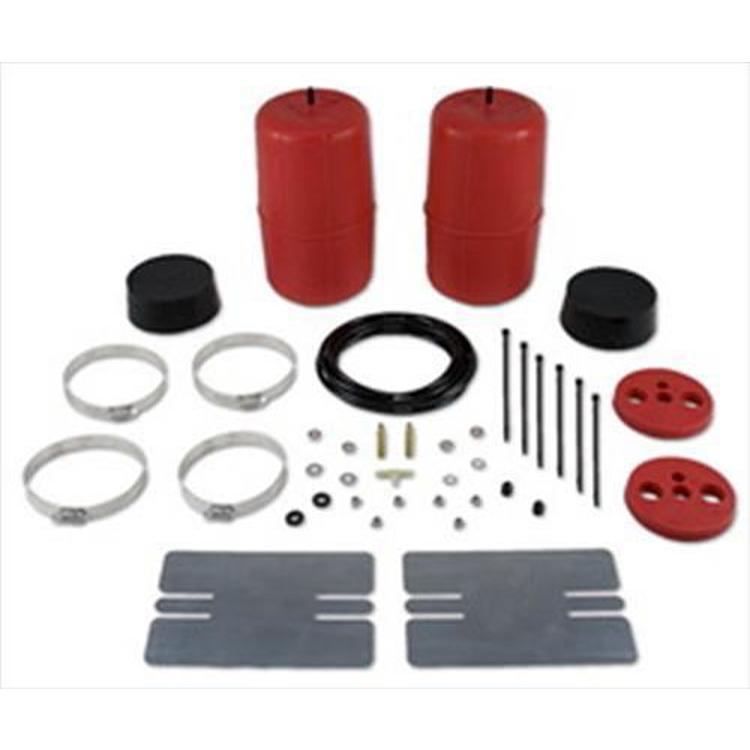

The AirLift Air Lift 1000 rear coil spring, part number 60747, is an add-on helper spring for the 1990–2000 Mitsubishi Montero (Base, LS, RS, SP, SR) and the 1990, 1999–2004 Mitsubishi Montero Sport (ES, LS, Limited, XLS, XS). It is made for coil spring suspensions that need extra support under load.
The spring is made for coil suspensions and is designed to reduce bottoming out. Because it is air adjustable, owners can set the ride for towing, hauling or light loads, with stability as the goal.
Key features
- Helper spring that adds support on the rear coil suspension
- Designed to reduce bottoming out
- Air adjustable for a tuned ride height and feel
- Direct fit with rear position
- No drilling needed
- Installation is listed at 1 hour or less
Choosing pressure for towing and hauling
Helper springs are most useful when a rear coil suspension carries more than it was designed for at rest. Under a load, the coil can bottom out over bumps, and a helper adds a second line of support. Tow vehicles often need a firmer setting for a trailer tongue than for an empty cargo area, so adjustment matters.
Setting the right pressure takes some trial. Start with a light setting, drive a short route, and check whether the rear still bottoms out or feels bouncy. Then adjust in small steps. Keep an eye on the hoses and valve for leaks, and make sure the vehicle is level when you measure ride height.
- Test the ride with a typical load before a long trip
- Recheck valve and hose connections after temperature changes
- Note how the rear reacts to bumps before and after adjusting
Specifications
| Brand | AirLift |
|---|---|
| Part number | 60747 |
| UPC | 729199607479 |
| Product line | Air Lift 1000 |
| Position | Rear |
| Application | Rear coil spring suspension |
| System type | Air bag |
| Fitment type | Direct fit |
| Drilling | No drill |
| Installation time | 1 hour or less |
Vehicle fitment
Fitment covers the 1990–2000 Mitsubishi Montero in Base, LS, RS, SP and SR trims, and the 1990 and 1999–2004 Mitsubishi Montero Sport in ES, LS, Limited, XLS and XS trims.
Montero Sport years from 1991 through 1998 and from 2005 onward are not in this list, and Montero years after 2000 are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
No drilling is needed, and the installation time is listed at 1 hour or less. Air adjustment depends on a working air supply, so check the air fittings and lines before you start. Support the rear of the vehicle on stands while working near the spring.
What’s included
Check the package contents against your installation plan before starting work, including any accessories.
