Overview
The AirLift LoadLifter 5000 Ultimate Plus upgrade kit, part number 52301, updates existing LoadLifter 5000 series air spring kits to the Ultimate Plus level. It adds stainless steel air lines and fittings, so the current springs can stay in place. The stainless steel lines and fittings are designed for longer service life.
Key features
- Stainless steel air line and fittings
- Roll plates and air spring hardware included
- Compatible with LoadLifter 5000 series air spring kits
- Designed to upgrade an existing system without a full replacement
Upgrading an existing air system
Upgrading lines and fittings is a common way to refresh an air suspension without replacing the springs. Air lines are exposed to road debris, heat and moisture, and the fittings are where most leaks begin. Stainless steel tends to hold up well in road salt and moisture, which is useful for lines under the vehicle.
Before disconnecting any existing line, release the air pressure and mark each line’s position. Compare the new fittings with the old ones so the thread type and tube size match. Mixing fitting types can cause leaks at the joints, so keep the connections consistent throughout the system.
Once the upgrade is complete, pressurize the system and check each joint with soapy water. Recheck the air spring hardware after the first few drives, since new fittings can settle as the lines take shape. Keep notes on which parts you installed in case you need to service the system later.
- Release air pressure before disconnecting
- Mark line positions before removal
- Leak-test every joint after assembly
Specifications
| Brand | AirLift |
|---|---|
| Part number | 52301 |
| UPC | 729199523014 |
| Type of system | Air bag |
| Front or rear application | Universal |
| Compatibility | LoadLifter 5000 series air spring kits |
| Air lines and fittings | Stainless steel |
Vehicle fitment
It is built to upgrade existing LoadLifter 5000 series systems, so match it to your current kit before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Relieve air pressure from the existing system before disconnecting any line or fitting.
What’s included

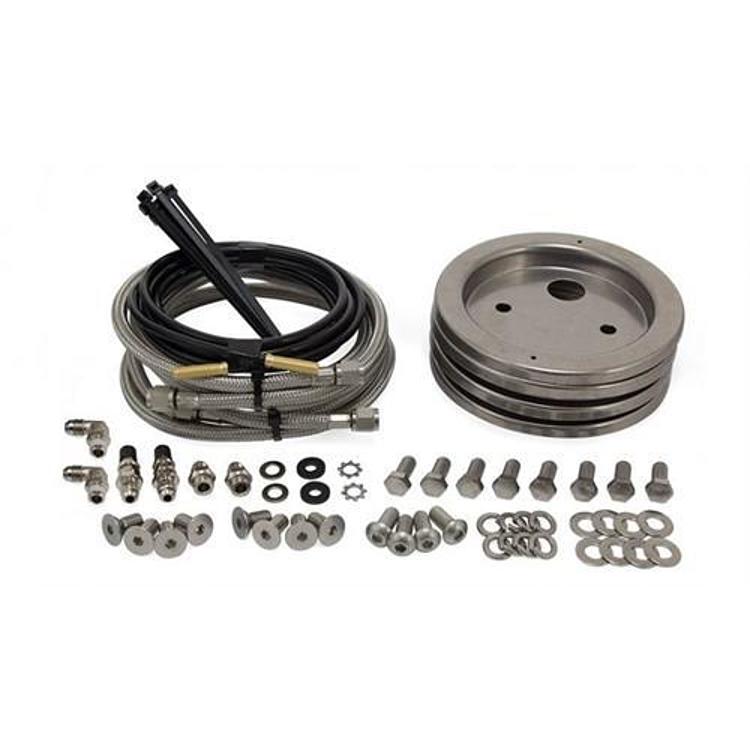

The kit includes a stainless steel air line, roll plates, fittings and air spring hardware.
Not included: the existing LoadLifter 5000 series air springs, since this kit is built to upgrade them.
