Suspension Block and U-Bolt Kit
Showing 73–84 of 153 resultsSorted by popularity
-
Suspension Block and U-Bolt Kit
Pro Comp 1 Inch Rear Lift Block with U-Bolt Kit – 64151
- Pro Comp Suspension 1 inch rear lift block and U-bolt kit, part number 64151
- Tapered cast iron blocks with U-bolts, flat washers and hi-nuts
- Confirm fit for your vehicle’s year, model and trim before ordering.
SKU: EXP64151 -
Suspension Block and U-Bolt Kit
Pro Comp 1 Inch Rear Lift Block with U-Bolt Kit – 63201
- Pro Comp Suspension 1 inch rear block kit with U-bolts, part number 63201
- Two cast iron riser blocks with four U-bolts
- Includes eight heavy duty flat washers and eight hi-nuts
- Confirm the lift height before ordering.
SKU: EXP63201 -
Suspension Block and U-Bolt Kit
Pro Comp 2 Inch Rear Lift Block with U-Bolt Kit – 63152
- Pro Comp Suspension 2 inch rear lift block kit with U-bolts, part number 63152
- Two rear lift blocks, four U-bolts, eight thick flat washers and eight U-bolt nuts
- Confirm fit for your vehicle’s year, model and trim before ordering.
SKU: EXP63152 -
Suspension Block and U-Bolt Kit

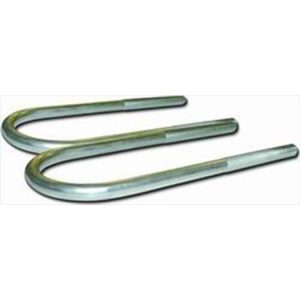

Pro Comp U-Bolt Kit – 62347
- Pro Comp Suspension U-bolt kit, part number 62347, for leaf spring packs
- Low-alloy high strength steel with zinc plated round U-bolts
- Includes new hi-nuts and extra-thick washers
- Confirm fit for your vehicle’s year, model and trim before ordering.
SKU: EXP62347 -
-
-
-
Suspension Block and U-Bolt Kit
Pro Comp U-Bolt Kit – 62247
- Pro Comp Suspension U-bolt kit, part number 62247, for leaf spring packs
- Low-alloy high strength steel; round style zinc plated, square style unplated
- Rated equivalent to a Grade 5 bolt.
- Compare the U-bolt length with your spring pack before buying.
SKU: EXP62247 -
Suspension Block and U-Bolt Kit
Pro Comp 4 Inch Rear Lift Block with U-Bolt Kit – 62246
- Pro Comp Suspension 4 inch rear lift block kit with U-bolts, part number 62246
- Two rear lift blocks, four U-bolts, eight thick flat washers and eight U-bolt nuts
- Match this kit to your rear springs before buying.
SKU: EXP62246 -
-
-
How a lift block works
On a leaf-spring rear suspension, the axle sits on the spring pack and is clamped there with U-bolts. A lift block is a solid spacer placed between the axle perch and the spring. Making the stack taller raises the body relative to the axle. It is a simple, relatively low-cost way to level a truck or add a few inches of rear lift, with no change to spring rate or ride quality.
Choosing a height
Blocks are sold by lift height, such as 2 inch or 5.5 inch. Match the rear lift to the front so the vehicle sits level. Taller blocks make the axle more likely to wrap under hard acceleration and may change driveline angles, which can cause vibration. Many taller kits are paired with other components, as noted in product descriptions.
- Small blocks level a truck that sits nose-high after a front lift or torsion bar adjustment.
- Taller blocks usually come with a carrier bearing spacer, brake line or e-brake extensions on some applications.
- Check whether the kit includes shocks or whether you need longer ones.
What should be in the kit
- Two blocks, cast or fabricated, sometimes with a pin to locate the spring.
- Four U-bolts sized to the axle tube and long enough for the added height.
- Washers, nuts and any plates or spacers named in the listing.
Never reuse stretched or old U-bolts with a taller block. Use the longer ones supplied and the proper nuts.
Drivetrain and brake considerations
Raising the axle tilts the pinion up. Driveshaft angle changes can cause vibration, and shims may be needed to correct pinion angle. Brake hoses and parking brake cables may also need extending. Confirm every item against the product notes.
Installation and safety
Support the frame on stands, and use a jack under the axle. Torque U-bolts evenly in a cross pattern to the manufacturer's specification, and recheck after the first few hundred miles. Because blocks affect handling and axle control, professional installation and an alignment check are recommended. Confirm fitment for your exact year, make, model, axle width and spring size.
Common pairings and mistakes
Blocks are often combined with longer shocks, extended brake lines and sometimes a transfer case drop or pinion shims on four-wheel-drive trucks. A lift block also leaves the leaf springs in the same position, so sagging springs will still sag. If the springs are tired, a new set or add-a-leaf may do more for ride height than a taller block.
- Measure ride height from the center of the wheel to the fender lip before and after, so you know the actual lift.
- Do not stack blocks or use mismatched pairs. Left and right blocks should match in height and taper.
- Use a tapered block where the axle needs a specific pinion angle, since some blocks are tapered and some are flat.
- A center pin must seat in the spring pack. Missing pins let the axle shift.
U-bolts stretch when tightened, so retorque after the first drive and again at a regular service interval. Look for rust on the threads and cracks around the axle perch.
Block lifts are best for moderate heights. For larger lifts, many owners choose a leaf spring or full suspension kit that is designed for the added travel.
Related guides
- Leveling Kit vs Lift Kit: What 3 Inches Really Gets You
- Traction Bars vs Ladder Bars: Stopping Axle Wrap
Traction bars vs ladder bars: what axle wrap is, how each design stops it, Pro Comp, Fabtech and Tuff Country fitment, alternatives and install…
Popular Suspension Block and U-Bolt Kit brands
- Pro Comp Suspension (78)
- Fabtech (16)
- ReadyLift (16)
- California Super Trucks (10)
- Skyjacker (6)
- Tuff Country (6)
- Revtek (6)
- Rough Country (5)
- Rubicon Express (4)
- Rancho (3)
- Daystar (1)
- Icon Suspension (1)
Suspension Block and U-Bolt Kit FAQ
Do lift blocks make a truck ride rougher?
Not usually, since springs are unchanged, but a taller block can increase axle wrap and sway. Ride quality depends on the springs and shocks. Many owners add longer shocks and sometimes traction bars to keep the suspension under control.
Can I use lift blocks on any truck?
No. They are for leaf-spring rear axles, and sizing depends on axle tube diameter, spring width and perch design. Coil-spring and independent suspensions use different lift methods. Confirm fitment for your exact vehicle before choosing a block.
Do I need new U-bolts with lift blocks?
Yes. A taller stack needs longer U-bolts to clamp properly. Most kits include them, along with washers and nuts. Do not reuse the old, shorter bolts, and tighten the new ones to the specified torque.
Will a lift block change my driveshaft angle?
It can, because raising the axle changes the pinion angle. Larger lifts may require shims or an adjusted driveshaft. Check for vibration after installing and have the angles corrected if needed.
