Axle U-Bolt

What U-bolts do

On a leaf spring suspension, U-bolts clamp the axle to the spring pack. They carry the clamping force that keeps the axle from shifting, and they resist the twisting force from acceleration and braking. Because a loose or broken U-bolt can let the axle move out of place, they are a critical safety part. Lift kits often require longer U-bolts, since the added thickness of blocks or a lift component changes the length needed.

How U-bolts are specified

• Thread diameter: common sizes include 1/2, 9/16, and 5/8 inch, and the listing may show these as shortened fractions in part numbers.
• Inside width: the distance between the legs must fit the axle tube or spring plate.
• Length: the length from the bend to the threaded ends has to clear the spring pack, plate, and blocks.

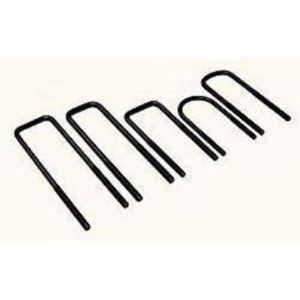

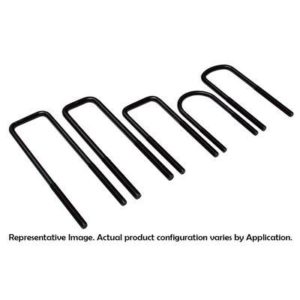

• Round or square: the profile may be round or square-bend, and must suit the axle perch and plate.
• Sold as single: many are listed as one piece, so you will normally need four per axle.

Choosing the correct size

Measure the existing U-bolts and compare the dimensions rather than depending only on vehicle fitment. After a lift, measure with the new blocks or the new spring perch height. A bolt that is too short may not allow full thread engagement, while one that is far too long can hang below the axle and catch on rocks. The width must match the axle tube and plate, since a U-bolt that is too wide will not clamp evenly. Also look at the material grade and finish, since grade 8 style hardware and plated or coated finishes resist stretching and corrosion.

Installation notes

Replace U-bolts in sets and avoid reusing old ones when you can, because they can stretch with age. Use new nuts and washers, and tighten in a crossing pattern to the manufacturer's torque specifications, in steps. Recheck torque after the first drive and again after a short period, because spring packs settle. Support the vehicle on stands properly, and do not work under a vehicle held only by a jack. Because axle alignment affects handling and tire wear, make sure the axle is square and the pinion angle is set correctly.

Because this is a safety-critical suspension part, professional installation is advisable if you are unsure. Always confirm fitment for your exact year, make, and model and the lift kit used, with the manufacturer's specifications.

Measuring and inspecting

Use a tape or calipers to measure the thread diameter and the inside width between the legs, and measure the length from the inside of the bend to the end of the threads. For spring perch or plate fit, check whether your axle has a flat or a round perch, since a round U-bolt may need a different plate. Inspect the existing hardware for rust pitting and thread damage, and look at the spring center bolt and the plate for cracking. Keep the plates flat and replace any that are bent. If you find the springs are sagging or the axle has moved, the cause may be loose U-bolts, so check the alignment before driving. Use thread locker if the instructions advise it.
