Weigh Safe Hitches 10 Inch Drop 2 Inch Shank Adjustable Ball Mount With Scale (Polished) – WS10-2

Weigh Safe Hitches

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Weigh Safe WS10-2 adjustable ball mount with built-in scale for tongue weight
  • 2 inch shank, universal fit per the manufacturer
  • Adjusts from 11 inch rise to 10 inch drop in 2 inch increments
  • Includes 2 inch and 2-5/16 inch stainless steel balls
  • 10,000 lbs max GTW with 2-5/16 inch ball; 1500 lbs max tongue weight
  • V5 and J684 certified

Description

Overview

The Weigh Safe WS10-2 is a 2-inch shank adjustable ball mount with a built-in scale that reads tongue weight. It is designed for trailers that hitch to a standard receiver, and it is a universal fit, so no single make, model or year applies. It adjusts from an 11-inch rise to a 10-inch drop in 2-inch increments.

The scale responds to pressure on the ball, so the reading reflects the load your tow vehicle actually carries. The forged aluminum body is lightweight, and the mount comes with both a 2-inch and a 2-5/16-inch stainless steel ball. Weigh Safe, LLC is a family-owned company based in Utah and part of Leap Innovations.

Key features

  • Built-in scale measures tongue weight
  • Adjusts from 11 inch rise to 10 inch drop in 2 inch increments
  • Lightweight forged aluminum body
  • Includes 2 inch and 2-5/16 inch stainless steel balls
  • 10,000 lbs max GTW with the 2-5/16 inch ball and 8000 lbs GTW with the 2 inch ball
  • 1500 lbs max tongue weight
  • V5 and J684 certified

Weight ratings explained

Ratings on a ball mount cover several numbers that are easy to mix up. Gross trailer weight is the total weight of the loaded trailer. Tongue weight is the downward force the trailer places on the ball. The mount, the ball and the receiver each have their own limits, and the lowest of them sets the real ceiling for a tow.

Match the ball to the coupler on the trailer before towing. Using the smaller ball with a trailer rated for the larger one can lead to a poor connection or wear. Keep the load within the rating for the setup in use, and recheck the trailer’s own ratings when you change trailers.

Look at the mount after heavy use. Check the shank for play in the receiver, inspect the ball for wear, and confirm the height setting is still secure before you travel.

  • Match the ball size to the trailer coupler
  • Keep tongue weight within the mount rating
  • Check the shank for play after heavy use

Specifications

Brand Weigh Safe Hitches
Part number WS10-2
UPC 653863201444
Shank size 2 inch x 2 inch

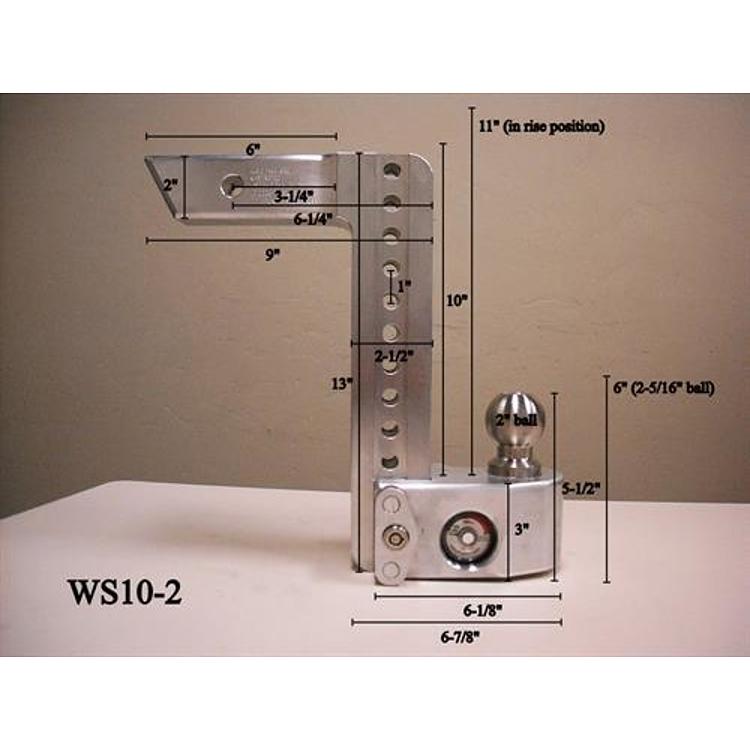

Drop or rise Adjustable, 11 inch rise to 10 inch drop, 2 inch increments
Material Forged aluminum
Ball hole size Fixed
Ball sizes 2 inch and 2-5/16 inch stainless steel
Max GTW 10,000 lbs with 2-5/16 inch ball; 8000 lbs with 2 inch ball
Max tongue weight 1500 lbs
Certifications V5, J684
Finish Polished

Vehicle fitment

It is a universal fit, so it is not built for one vehicle. Match the 2-inch shank to your hitch receiver and check that the trailer and tow vehicle ratings cover the loads above.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The scale only reads when the trailer tongue presses on the ball, so take the measurement with the trailer loaded and coupled the way you will tow. Set the height so the trailer sits level before you pull out.

What’s included

The ball mount with built-in scale, plus 2 inch and 2-5/16 inch stainless steel balls.

SKU: W/SWS10-2 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 16.50 × 10.50 × 3.50 in
brands

Questions & Answers

Is the Weigh Safe WS10-2 universal fit?

Yes, it is a universal fit. Choose it when your receiver takes a 2-inch shank, and confirm your tow vehicle's ratings cover the trailer before towing.

What height range does the WS10-2 adjust through?

It adjusts from an 11 inch rise to a 10 inch drop in 2 inch increments, letting you level the trailer behind different tow vehicles.

Which ball sizes and weight limits come with the WS10-2?

Both 2 inch and 2-5/16 inch stainless steel balls are included. Ratings are 10,000 lbs max GTW with the 2-5/16 inch ball, 8000 lbs GTW with the 2 inch ball, and 1500 lbs max tongue weight.

What is the Weigh Safe WS10-2 part number?

The part number is WS10-2 and the UPC is 653863201444. The mount is V5 and J684 certified, and it includes both 2-inch and 2-5/16-inch stainless steel balls for different hitch setups.

What is the difference between GTW and tongue weight?

Gross trailer weight is the total weight of the loaded trailer, while tongue weight is the downward force the trailer places on the ball. Keep tongue weight within the mount rating, and check that the tow vehicle's rating covers the total load.
