Overview

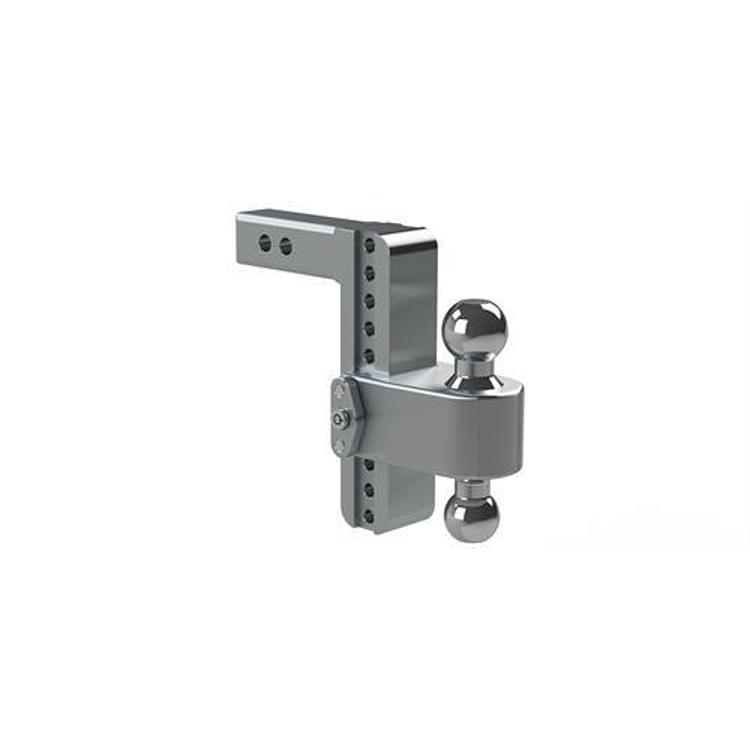

The Weigh Safe LTB8-2 is an 8 inch drop hitch ball mount with a 2 inch shank for the 180 Hitch. Its adjustable ball mount uses 6061 T6 aluminum and stainless steel components and is designed for heavy duty towing.
Drop mounts put the ball lower than the shank so the trailer can sit level behind a higher receiver. Weigh Safe LLC frames its product around towing peace of mind.
Key features
- 8 inch drop height
- 2 inch shank
- Adjustable ball mount
- Built for the 180 Hitch
- 6061 T6 aluminum and stainless steel components
- Heavy duty use
- Made in the USA
Drop height and towing level
A drop hitch moves the ball below the shank so a trailer can sit closer to level behind a higher receiver. A level trailer usually steers and brakes more predictably, so the drop is part of setting up the rig, not just a convenience. Measure the height difference with the trailer hitched and unloaded.
Once the drop is set, look at how the trailer sits at rest and on the road. A trailer that sits nose-high or nose-low may need a different drop or a load adjustment. Check the shank, pins and bolts after the first trip, and keep the adjustable parts clean and free of grit.
- Hitch the trailer before measuring
- Check height on level ground
- Inspect the shank after the first trip
Specifications
| Brand | Weigh Safe Hitches |
|---|---|
| Model | LTB8-2 |
| UPC | 653863202168 |
| Drop | 8 inch |
| Shank size | 2 inch |
| Material | 6061 T6 aluminum and stainless steel |
| Compatibility | 180 Hitch |
| Origin | Made in the USA |
Vehicle fitment
The 2 inch shank must match the receiver, and the 8 inch drop sets the ball height once it is in place.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 2 inch shank has to match the receiver opening, and the 8 inch drop sets the ball height once the mount is in place.
What’s included
No accessories are included with this mount. Not included: a hitch receiver and a trailer ball.
