Overview

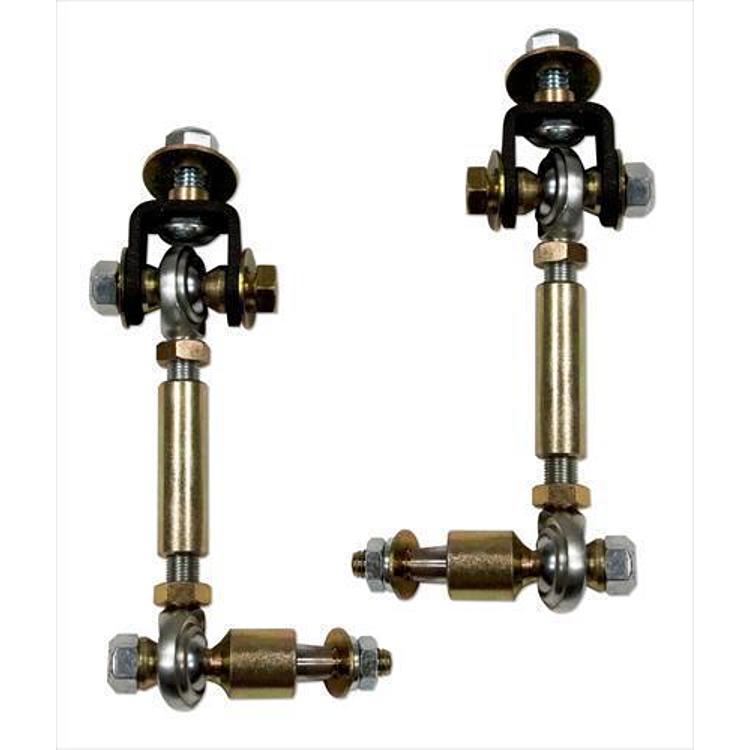

The Tuff Country Sway Bar End Link Kit, part number 30927, is a front sway bar end link kit with heim joints for Dodge Ram trucks. It fits 1998–2001 Dodge Ram 1500 models, 1998–2010 Dodge Ram 2500 and 3500 models, and 2011–2013 Ram 2500 and 2011–2012 Ram 3500 models.
Heim joints reduce suspension binding and improve articulation compared with a standard end link. The threaded body fits stock height vehicles and trucks with up to 3 inch of lift. The links fit Tuff Country lift kits from 2 inch to 6 inch, and the kit comes with hardware.
Key features
- Heim joints reduce suspension binding
- Improves articulation at the front suspension
- Threaded body for fitment on stock height vehicles up to 3 inch of lift
- Compatible with Tuff Country lift kits from 2 inch to 6 inch
- Hardware included
- Direct fit for the front position
Heim joints and articulation
Heim joints use a ball inside a housing, which allows the end link to move in several directions without the binding that rubber or standard joints can cause. That makes them useful on a truck that flexes on uneven ground, where the suspension needs room to articulate.
Heim joints need periodic inspection because the ball and housing can wear over time, and dirt can get into the joint. Check for play, look for cracks in the housing, and confirm the jam nuts remain tight. Re-check the threaded body setting after the first few trail runs, since the length can shift as the joint settles.
If you plan to lift the truck in the future, consider the threaded body setting now, since heim joints adjust over a range. Pair the end links with the sway bar bushings and frame mounts inspected at the same time.
- Check the joint for play at each service
- Keep the joint clean and protected from grit
- Confirm jam nuts after adjustments
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 30927 |
| UPC | 69881530927 |
| Product type | Sway bar end link kit |
| Position | Front |
| Joint type | Heim joints |
| Lift range | Stock height up to 3 inch of lift; Tuff Country lift kits from 2 inch to 6 inch |
| Fitment type | Direct fit |
| Included hardware | Yes |
Vehicle fitment
It covers these Dodge Ram trucks: 1998–2001 Dodge Ram 1500 (Laramie, ST, Sport); 1998–2010 Dodge Ram 2500 and 1998–2010 Dodge Ram 3500 in several trims including Laramie, SLT, ST, SXT and Sport; 2011–2013 Ram 2500; and 2011–2012 Ram 3500 (Laramie, Laramie Longhorn, SLT, ST).
There are no Ram 1500 entries after 2001 and no 2014 or later trucks, so newer Ram 1500 and later heavy duty models are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Hardware is included, so no separate fasteners should be needed for the end links. Because the threaded body sets the fitment range, adjust the link length for your lift height before final tightening. Support the truck on stands before working under the front suspension.
What’s included
Sway bar end link kit with hardware.
Not included: a Tuff Country lift kit. The links are designed to fit alongside Tuff Country lift kits from 2 inch to 6 inch, but the lift kit is a separate part.
