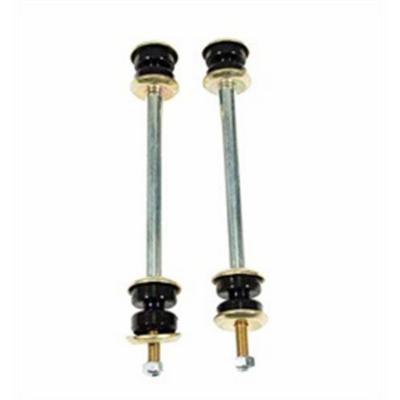

Tuff Country Sway Bar End Link Kit – 20828

Tuff Country

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Sway bar end link kit, sold as a pair with hardware
  • Heim joints reduce binding and improve articulation
  • Threaded body fits stock-height vehicles up to 3 inch of lift
  • Fits Tuff Country lifts from 2 inch to 6 inch

Description

Overview

The Tuff Country sway bar end link kit (part number 20828) is a front pair of end links with heim joints, sold with hardware. The heim joints reduce binding and improve articulation, which helps the front suspension move freely over rough ground.

The threaded body allows the links to fit stock-height vehicles and vehicles with up to 3 inches of lift. The kit is made to work with Tuff Country lift kits from 2 inch to 6 inch. It is intended for Ford trucks from 1986 to 1997.

Key features

  • Heim joints reduce suspension binding
  • Improves articulation
  • Threaded body for adjustable length
  • Hardware included
  • Front position
  • Sold as a pair

Setting up front end links

End links connect the sway bar to the control arm or axle, so they carry the side-to-side load that the bar takes during turns. When the links bind, the bar cannot move freely and the front suspension can feel stiff over uneven ground. Heim joints allow angular movement at each end, which lets the bar work with the axle as the suspension travels.

Length matters more than most buyers expect. The threaded body allows fine adjustment, but a link set too far down can strain the joints at full droop, while one set too long can reduce the bar’s effect. Set the length with the truck at its normal ride height, then tighten the jam nuts. Check the joints for play at every service, since worn heims can cause a knock over small bumps.

  • Keep the joints free of mud and grit to slow wear
  • Replace torn boots or cracked threads promptly
  • Re-torque the jam nuts after the first few drives

Specifications

Brand Tuff Country
Part number T/C20828
Quantity Pair
Location Front
Type Non-adjustable
Joints Heim
Lift range Stock height up to 3 in; Tuff Country lifts 2 in to 6 in
Hardware Included
Fitment Direct fit

Vehicle fitment

This kit fits the 1997 Ford F-250 HD in the XL and XLT trims, and the 1986–1997 Ford F-350 in the Base, Custom, Eddie Bauer, Special, XL, XLT and XLT Lariat trims.

The list does not include the F-150, the F-250 outside 1997 or any Ford model outside those years. Confirm your vehicle’s year, model and trim before ordering.

What’s included

A pair of sway bar end links with hardware included.

Fitment

VehicleYearsTrims
Ford F-250 HD1997XL, XLT
Ford F-3501986–1997Base, Custom, Eddie Bauer, Special, XL, XLT, XLT Lariat

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will these end links fit a stock-height F-350 from 1990?

The 1986 to 1997 F-350 range covers a 1990 model, so that year falls inside it. The threaded body is made for stock-height vehicles up to 3 inches of lift, so confirm your lift height before ordering.

Are the hardware and links sold as a pair?

Yes. The kit comes as a pair with hardware included, and it is a front-position part. Both links and the hardware come in one box, so the set is complete for a front install.

Do these end links work with a 6-inch Tuff Country lift?

Yes. The threaded body fits Tuff Country lift kits from 2 inch to 6 inch, so a 6-inch Tuff Country lift falls within the range the kit is made for.

How often should sway bar end links be inspected?

Inspect them at every oil change or tire rotation, and after any hard off-road run with heavy articulation. Look for bent studs, torn boots and worn bushings. Loose or clunking links often show up as noise over small bumps before they fail.
