Overview
The Trail Master 6-inch Knuckle Suspension Lift Kit with Rear NGS Shocks, model TM505N, is a lift for 2007 to 2018 Toyota Tundra pickups. It lifts the front 6 inches and the rear 3 inches and is designed to clear 35×12.50 tires on 18-inch or larger wheels.
Steel front strut spacers give the 6-inch front lift, and CNC machined cast ductile steel knuckles keep steering geometry and alignment correct. Front and rear high-clearance crossmembers and a differential skid plate hold the front differential in place without adding front track width.
The 6-inch front and 3-inch rear lift give a different ride height at each end than a level lift, so the rear height should be checked against the front once the springs and blocks are in. Trail Master lists 18-inch or larger wheels for the 35×12.50 tire size, so wheel diameter is part of the fitment check.
Key features
- 6-inch front lift from heavy-duty steel strut spacers
- 3-inch rear lift from a block and add-a-leaf
- CNC machined cast ductile steel knuckles
- Front and rear high-clearance crossmembers and a differential skid plate
- Nitrogen gas charged NGS shocks for the rear
Front and rear lift balance
A front lift of 6 inches with a rear lift of 3 inches leaves the truck sitting higher at the front than at the rear. That difference is intended for a lifted truck, but it changes the way the truck carries load and how the rear suspension works. Measure the height at each corner once the kit is in and compare the readings against the lift figures.
Changing the height at both ends affects the driveline, the steering and the brakes. Check the driveshaft angles, the brake hose length and the steering stops after installation. Heavy loads in the bed or on a hitch can lower the rear, so recheck the height under typical load to confirm the balance is where you want it.
- Measure ride height at each wheel arch
- Check driveshaft angles after installation
- Look at brake hose length and steering stops
- Recheck height under your usual load
Specifications
| Brand | Trail Master |
|---|---|
| Part number | TM505N |
| UPC | 70000679471 |
| Front lift | 6 inches |
| Rear lift | 3 inches |
| Suspension type | Knuckle |
| Maximum tire size | 35×12.50 |
| Wheel size | 18 inches and larger |
| Shocks | Nitrogen gas charged NGS, rear |
Vehicle fitment
It is made for 2007 to 2018 Toyota Tundra pickups. Before ordering, verify that the year, model and trim match your truck.
Other Toyota models are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 6-inch front and 3-inch rear lift change the geometry at both ends, so the front alignment and driveline angles should be checked after installation.
What’s included

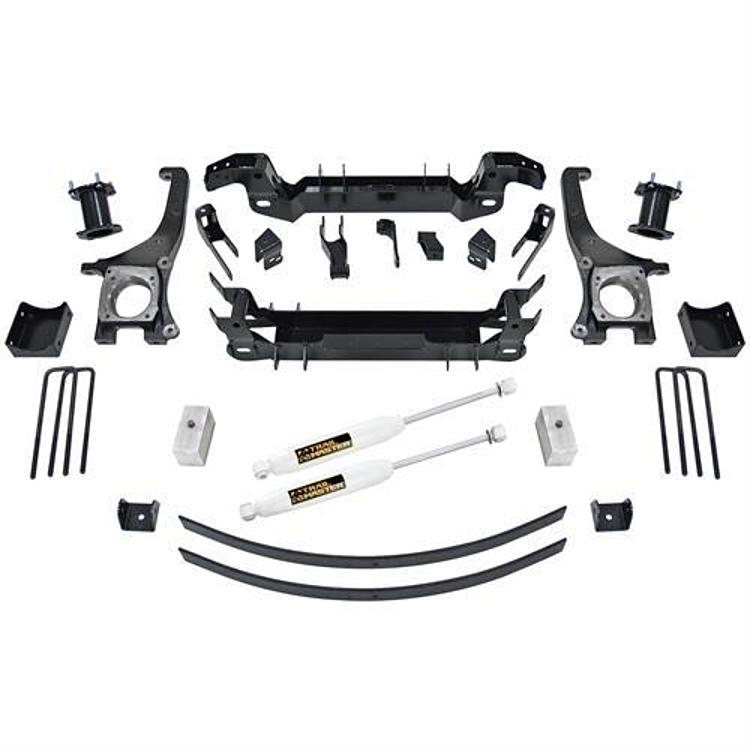

Front strut spacers, knuckles, heavy-duty crossmembers, differential skid plate, rear block and add-a-leaf with U-bolts, and rear NGS shocks.
