Overview
The Tuff Country 54070 is a 4-inch suspension lift for the 2007–2014 Toyota Tundra. It gives clearance for 35×11.5 tires using upper control arms together with upper coil and strut spacers, which keep the front end in its proper geometry once lifted. The factory front struts and rear shocks can be kept, and the kit is a bolt-on installation with no drilling, cutting or welding.
Key features
- 4-inch lift for clearance up to 35×11.5 tires
- Upper control arms that maintain factory geometry
- Upper coil and strut spacers that keep a near factory ride
- Bolt-on installation with no drilling, cutting or welding
Living with the lift
Upper coil and strut spacers raise the front while the factory strut assembly stays in place. Because the spring seat moves, the coil spring sits differently and the suspension compresses through a changed range. Look for uneven height between sides, which can point to a worn or shifted spacer. Keeping the factory struts in the truck also means the shock valving stays as designed for the original ride.
Tundra owners often run larger wheels and tires after a lift, so check clearance at full steering lock and when the suspension is compressed. Rubbing on the inner fender or the sway bar links means the setup needs adjustment. Keep an eye on the front alignment, which tends to move after upper control arm work.
- Re-torque control arm bolts after the first drives
- Recheck alignment after any tire change
- Inspect strut spacers for cracking or wear
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 54070 |
| UPC | 698815540707 |
| Lift height | 4 inches |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Spacer with upper control arms |
| Tire clearance | 35×11.5 |
| Shocks | Not included; factory struts and rear shocks can be kept |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct fit for the 2007–2014 Toyota Tundra.
Other Tundra generations are not covered by this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit is a bolt-on installation with no drilling, cutting or welding. Because the upper control arms and spacers change front geometry, have the alignment checked after the lift.

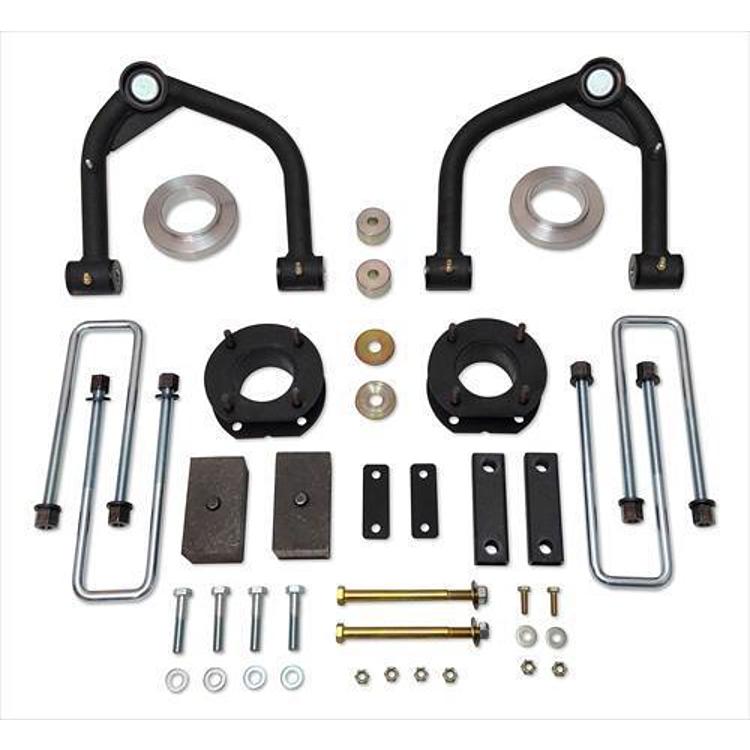

What’s included
It includes upper control arms and upper coil and strut spacers, which form the core of the kit. Check the contents against your installation before starting.
