Trail Master 3.0 Inch Lift Kit with Replacement Rear Leaf Springs – TM3730-40023

Trail Master

Shop Trail Master Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail Master 3.0-inch lift kit with replacement rear leaf springs, part number TM3730-40023
  • Front coil springs and rear leaf springs
  • Lift height range 3 to 4.99 inches, shocks included
  • Lifetime warranty on Trail Master kits

Description

Overview

The Trail Master 3.0 Inch Lift Kit with Replacement Rear Leaf Springs, part number TM3730-40023, is a suspension lift with front coil springs and rear leaf springs. It gives a 3.0-inch lift, with a lift height range of 3 to 4.99 inches.

Trail Master says its suspension systems are designed to take on extreme off-road trails while staying quiet and dependable for everyday driving. The design limits wear on factory ball joints and steering parts and reduces noise and vibration. The kit includes a U-bolt kit for the Chrysler 8.25 axle.

Each kit comes with what is needed to raise the vehicle without ordering extra components, and all Trail Master kits carry a lifetime warranty.

Key features

  • 3.0-inch lift height
  • Front coil springs and rear leaf springs
  • High-grade alloy steel tube control arms
  • Flex-joint bushing technology
  • Precision laser cut bolt holes and CNC machined spindles
  • CNC press-brake formed brackets
  • Shocks included
  • Lifetime warranty on Trail Master kits

Driveline and alignment after a lift

A 3-inch suspension lift changes the angle of the driveshaft, the axle pinion and the control arms, which is why alignment and driveline angles need checking once the work is finished. Changed angles can wear U-joints faster and add vibration at highway speed. Check the driveshaft for play and listen for new vibration on the first few drives.

Leaf springs and coil springs behave differently under load. Rear leaf springs can settle over the first weeks, so recheck the U-bolts and shock mounts after that break-in period. Steering and brake components are often inspected alongside a lift, because the taller suspension changes how the truck handles and stops.

  • Recheck U-bolt nuts after the first few drives
  • Inspect driveshaft U-joints for play
  • Check brake hoses for stretch or rubbing

Specifications

Brand Trail Master
Part number TM3730-40023
UPC 614901083484
Lift height 3.0 inches, range 3 to 4.99 inches
Suspension type Coil spring kit
Front lift method Coil springs
Rear lift method Leaf springs
U-bolt kit For the Chrysler 8.25 axle
Max tire size 31×10.50
Shocks Included
Warranty Lifetime

Vehicle fitment

The kit is matched to the Chrysler 8.25 axle. Confirm your vehicle’s year, model and trim before ordering, since the axle alone does not identify a vehicle.

A Model 35 rear axle needs the Model 35 U-bolt kit, part number EXP50055, which is sold separately. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit is designed for straightforward installation and includes everything needed for the lift. Check the alignment and the driveline angles after installation, since a 3-inch lift changes both. The rear leaf springs need the U-bolt kit for your axle.

What’s included

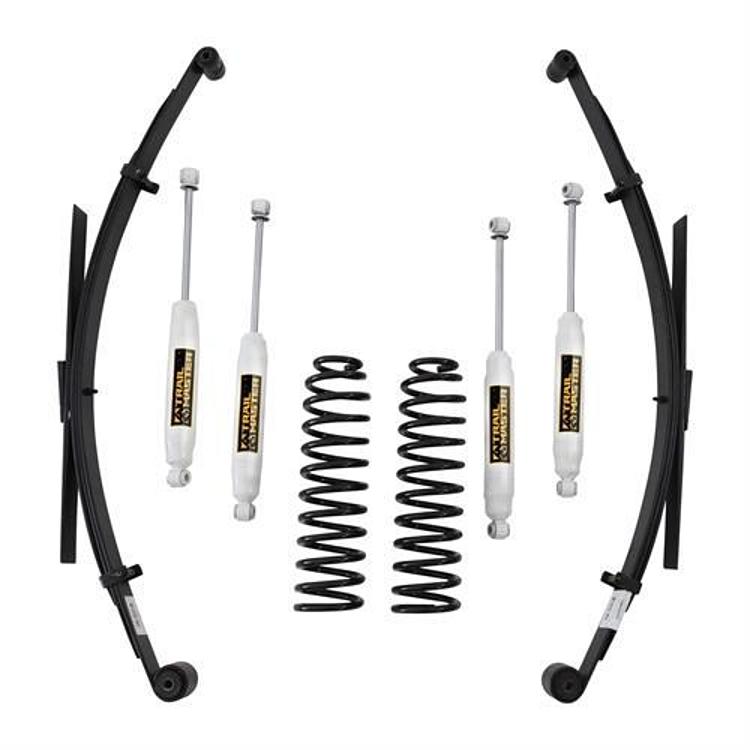

Front coil springs, replacement rear leaf springs, the U-bolt kit for the Chrysler 8.25 axle, shocks and the components needed for the lift.

SKU: T/MTM3730-40023 Category:

Specification

Shipping weight 129.46 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the TM3730-40023 kit work with a Model 35 rear axle?

Not with the included U-bolts. A Model 35 rear axle needs the Model 35 U-bolt kit, part number EXP50055, which is sold separately.

How much lift does the Trail Master TM3730-40023 give?

The kit gives a 3.0-inch lift, with a lift height range of 3 to 4.99 inches. Front coil springs and rear leaf springs reach that height.

Does the TM3730-40023 come with shocks and a warranty?

Yes. Shocks are included, and all Trail Master kits carry a lifetime warranty, so the kit arrives complete for the lift.

How often should the U-bolts be checked?

Check the U-bolt nuts after the first few drives and again at routine service intervals. Look for shifting springs, loose nuts or wear on the axle seat, and retighten or replace parts as needed.

Does a lift like this affect brake lines or the driveshaft?

It can. Raising the suspension changes driveline angles and the length of brake hoses and cables. Inspect the driveshaft U-joints and brake lines after installation, and look for stretched or rubbing lines.
