Overview

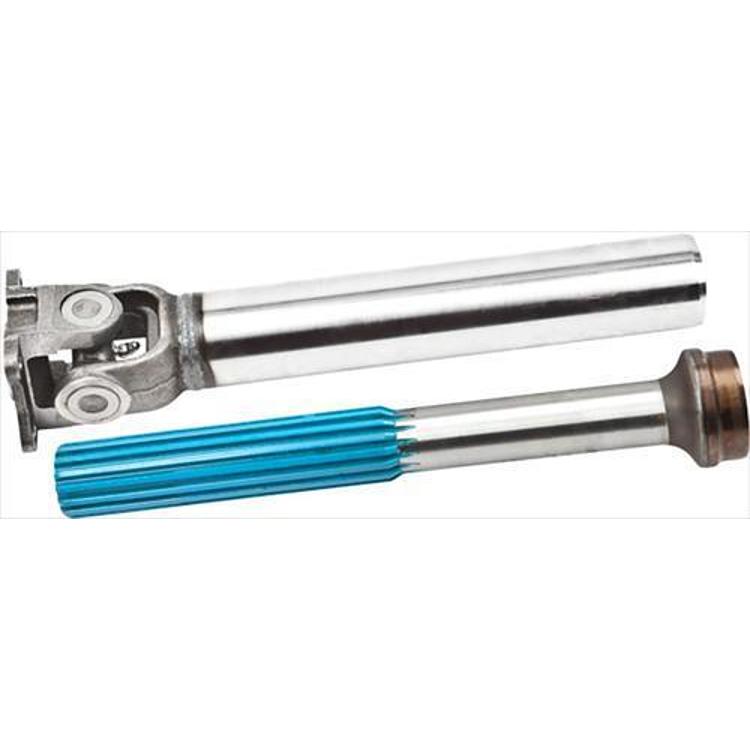

The 100131-1-KIT is a heavy duty driveline kit with a Creeper U-joint that has added material in the center section. It fits the 1984–1995 Toyota 4Runner (DLX and SR5) and the 1979–1995 Toyota Pickup in the Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo trims.
The Creeper joint was tested to 4,700 ft-lbs of torque in an axle testing machine. The kit is a universal fit and includes four install clips and a Zerk grease fitting.
Key features
- Heavy duty driveline kit
- Creeper U-joint with added center material
- Four install clips included
- Zerk grease fitting included
- Universal fit
Choosing a U-joint type
Joints in a driveline are chosen for the loads they will see. A joint with added material in the center section aims to handle higher torque than a standard part, which can matter for larger tires, heavier loads or aggressive low range use. Matching the joint to the way the vehicle is driven is the simplest way to plan a driveline build.
Whatever joint is chosen, the yoke, flange and clips should be inspected together. Mixing a stronger joint with worn yokes can leave the weakest point elsewhere in the driveline. Keep a record of when the joint was installed and greased so service intervals are easy to track.
- Match the joint to the way you drive
- Inspect yokes and flanges with the joint
- Keep service dates for the driveline
- Grease the joint after each installation
Specifications
| Brand | Trail Gear |
|---|---|
| Part number | 100131-1-KIT |
| UPC | 70000621797 |
| Joint | Creeper U-joint |
| Tested torque | 4,700 ft-lbs, per Trail Gear |
| Fitment type | Universal fit |
Vehicle fitment
It fits the 1984–1995 Toyota 4Runner (DLX and SR5) and the 1979–1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo). Confirm your vehicle’s year, model and trim before ordering.
The list does not include the Tacoma, the Land Cruiser or any Toyota model after 1995. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Attach the four install clips and the Zerk grease fitting that come with the kit, then grease the joint after installation.
What’s included
The kit includes the Creeper U-joint, four install clips and a Zerk grease fitting.
