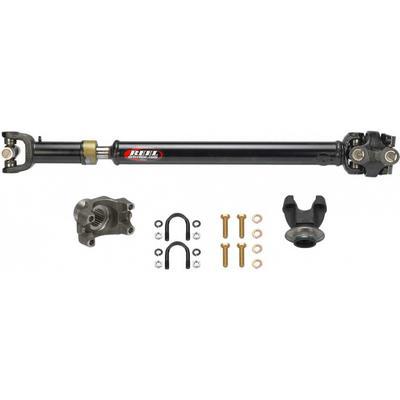

J.E. Reel 1310 Heavy Duty Rear Drive Shaft (Manual Transmission) – 3118JL-2RM

J.E. Reel

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Heavy-duty 1310 rear driveshaft for manual transmission
  • Built for mild use with tires up to 35 inches
  • Joint angle limits: 1310 CV under 26 degrees, 1350 CV under 32 degrees
  • Extended length, rear position
  • Part number JER3118JL-2RM

Description

Overview

The J.E. Reel 1310 Heavy Duty Rear Drive Shaft, part JER3118JL-2RM, is a manual-transmission rear driveshaft for the 2019 Jeep Wrangler JL. It is built for stock height and mild use, and it is stronger than original equipment shafts under those conditions.

Two-door JL builds with a lift should use the 1350 rear driveline instead of this 1310 shaft. Lifts taller than the moderate range or long-arm kits need a measured driveline length. Measuring every driveline is recommended where possible.

Key features

  • Heavy-duty 1310 series rear shaft for manual transmission
  • Stronger than original equipment shafts for stock height and mild use
  • Designed for tires up to 35 inches for mild use
  • Maximum joint angle limits given for both 1310 and 1350 CV joints
  • Extended length, direct fit

Driveline angles and lift height

A driveshaft works within joint angle limits, and lift height changes those angles. A taller lift or a long-arm kit increases the angle at the rear joints, which adds vibration and wears the U-joints faster. Measure the driveline before installing a shaft on a lifted JL, and watch for transfer case output slope, which varies with the year and build of the Wrangler.

Driveline wear shows up in several ways. Clunks when shifting from drive to reverse, vibration at highway speed, and grease leaking from a U-joint cap are common signs. Inspect the joints at each oil change, and keep the pinion and transfer case yokes free of damage that could push the joint out of spec.

  • Measure driveline length before a lift
  • Check joint angles after any lift change
  • Listen for clunks on gear changes
  • Inspect U-joints for grease leaks

Specifications

Brand J.E. Reel
Part number JER3118JL-2RM
Position Rear
Transmission type Manual
Length Extended
Maximum angle, 1310 CV Less than 26 degrees
Maximum angle, 1350 CV Less than 32 degrees
JL 2018 transfer case angle 9.25 degrees, rear output slopes down
Fitment type Direct fit

Vehicle fitment

This rear shaft fits the 2019 Jeep Wrangler (JL) two-door models.

Four-door JL models and the 2018 JL with its different powertrain angle need separate fit checks. Confirm your vehicle’s year, model and trim before choosing this part.

Installation notes

Measure the driveline length before choosing this part if the vehicle has a lift taller than the moderate range or uses a long-arm kit. On a 2018 JL the transfer case is installed at 9.25 degrees, which makes the rear output slope down toward the axle, so the angle matters more on that year.

What’s included

One rear driveshaft assembly. No other hardware is described.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2019Rubicon (2-Door), Sport (2-Door), Sport S (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the JER3118JL-2RM fit a 2019 Jeep Wrangler JL with a manual transmission?

Yes, it fits 2019 Jeep Wrangler (JL) two-door models with a manual transmission. Confirm fit for four-door models separately before ordering.

Can I use this shaft with a lift?

For stock height and mild use, yes. For two-door builds with a lift, the 1350 rear driveline is the better choice, and lifts taller than the moderate range need a measured driveline length.

What is the maximum joint angle for this driveshaft?

The maximum angle is less than 26 degrees for the 1310 CV joint and less than 32 degrees for the 1350 CV joint.

Why does a 2018 JL need extra driveline attention?

The 2018 JL is installed with the transfer case at 9.25 degrees, so the rear output slopes down toward the axle. That angle matters more on the 2018 model, so check driveline angles before installing.

What signs show a rear driveshaft needs replacing?

Persistent vibration, a clunk on acceleration or deceleration, a loose or squeaky U-joint, and grease leaking from a joint cap are common signs. Check the shaft for bent tubing or dents, since those can unbalance it. Replace the shaft or its joints when these symptoms persist.
