Overview

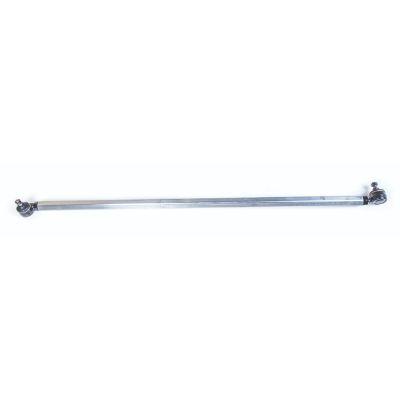

The TeraFlex 4920255 is a heavy-duty high steer tie rod kit with stock taper tie rod ends for the 1997-2006 Jeep Wrangler TJ and 2004-2006 Wrangler Unlimited LJ. It is made for steering systems that use the TeraFlex High Steer Knuckle, and it is intended for the TeraFlex Dana 30 High Steer Knuckle.
The tube is 1-1/2″ hexagon 6061 T6 aluminum. This alloy has a higher specific strength than 1018 steel, a yield strength of 45,000 lbs, and is three times lighter than steel while deflecting three times further before returning to shape. The hex profile lets a 1-1/2″ wrench hold the tube while the jam nuts are tightened.
Key features
- 1-1/2″ hexagon 6061 T6 aluminum tube
- Yield strength of 45,000 lbs, at one-third the weight of steel
- Hex shape allows a 1-1/2″ wrench to hold the tube when tightening jam nuts
- Heavy-duty tie rod ends with a one-ton joint end
- Stock Jeep taper ends fit Dana 30 knuckle holes
Steering geometry after the swap
A high steer tie rod moves part of the steering linkage ahead of the axle centerline, which changes how the tie rod ends work through suspension travel. When the axle articulates, the rod pushes and pulls the knuckle arms, so its length and alignment decide how evenly the wheels turn. Changing tie rod length moves the toe setting, so have the front end checked on an alignment rack once the kit is in place. Tighten the jam nuts only after the ends are centered on their threads.
Tie rod ends are wear items. Lift the front tire and feel for movement at each joint, then look for torn boots and grease leaks. Aluminum resists corrosion, but the threaded ends and clamp hardware still need inspection at regular service intervals. Looseness, wander or uneven tire wear are signs that steering parts need attention.
- Measure toe before and after the swap
- Re-check jam nut tightness after the first drive
- Inspect boots and joint seals each season
- Replace worn tie rod ends as a pair when one shows play
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 4920255 |
| Tube material | 6061 T6 aluminum |
| Tube profile | 1-1/2″ hexagon |
| Yield strength | 45,000 lbs |
| Tie rod ends | One-ton joint ends, stock Jeep taper |
| Designed for | TeraFlex Dana 30 High Steer Knuckle |
| Fit type | Direct fit |
Vehicle fitment
It fits the 1997-2006 Jeep Wrangler (TJ) and the 2004-2006 Jeep Wrangler (LJ). It can also be used on TJ, YJ, XJ and ZJ steering systems fitted with the TeraFlex High Steer Knuckle.
The stock taper ends suit Dana 30 knuckle holes; the larger one-ton taper ends are a separate version for 60-type knuckles. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the knuckle setup before installing, since this tie rod is made for the TeraFlex Dana 30 High Steer Knuckle.
