PSC Steering Rod End 3/4-16 X 3/4 Left Hand Male – REXML12

PSC Steering

Shop PSC Steering Tie Rod Ends on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • PSC Steering REXML12 left hand male rod end, 3/4-16 X 3/4 thread
  • 4130 Chromoly steel body with a 52100 spherical bearing
  • Self-lubricated with a Nylafiber matrix; do not add grease

Description

Overview

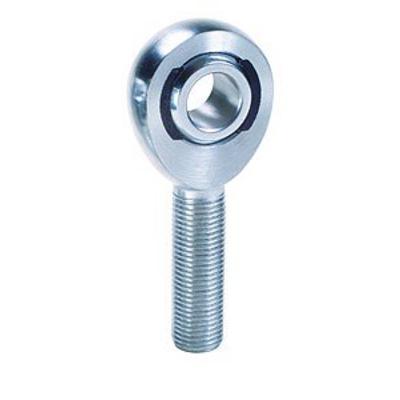

The PSC Steering REXML12 is a left hand male rod end with 3/4-16 X 3/4 threads. PSC builds the bodies from 4130 Chromoly steel and fits 52100 spherical bearings that are self-lubricated.

Universal fit, so no vehicle is named. Thread size and hand decide whether a rod end matches a given joint, so measure the existing end before ordering.

Key features

  • Precision ground, heat treated and hard chrome plated
  • Injection molded Nylafiber matrix self-lubricates the joint
  • The self-lubricated design is intended to extend service life and reduce maintenance.
  • 52100 spherical bearing in a 4130 Chromoly steel body

Inspecting and servicing rod ends

A rod end is a ball joint in a threaded body, and the ball takes steering load while moving through the joint’s travel. Check for play by feeling for movement at the ball with the joint unloaded, and look for cracks around the threaded section or a loose jam nut.

Self-lubricated joints are sealed from grease, so their service life depends on keeping dirt and water out. Wipe the exterior regularly and replace the joint when play develops. Replacing a rod end as a pair on the same linkage keeps the steering geometry consistent across both sides.

  • Check play with the joint unloaded
  • Look for cracks near the threads
  • Keep the exterior clean and free of road grime
  • Replace worn ends in pairs on the same linkage

Specifications

Brand PSC Steering
Part number REXML12
Hand Left hand male
Thread 3/4-16 X 3/4
Body material 4130 Chromoly steel
Bearing 52100 spherical
Finish Hard chrome plated
Lubrication Self-lubricated, Nylafiber matrix
Fitment Universal fit

Vehicle fitment

PSC lists universal fit, so this rod end is not matched to a make, model or year. Check the thread size and hand against the joint it replaces.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

PSC warns against adding grease or other lubricants, which may attract dirt and interfere with the self-lubricating bearing. Do not operate a vehicle with worn or contaminated rod ends.

What’s included

Check for a jam nut and hardware against your installation before starting.

Questions & Answers

Is the REXML12 a left hand or right hand rod end?

It is a left hand male rod end with 3/4-16 X 3/4 threads. Check the hand and thread size against the joint you are replacing before ordering, since it is universal fit and not matched to a specific vehicle.

Does the REXML12 need grease?

No. The rod end is self-lubricated by an injection molded Nylafiber matrix. Added grease or other lubricants may attract dirt and interfere with the bearing, so leave the joint as supplied.

What is the REXML12 made from?

It has a 4130 Chromoly steel body with a 52100 spherical bearing, precision ground, heat treated and hard chrome plated. Confirm the 3/4-16 X 3/4 thread size before ordering.

What part number is this rod end?

The part number is REXML12 from PSC Steering. Use it when comparing PSC rod ends, and confirm the 3/4-16 X 3/4 thread and left hand orientation match your application.

How do I tell if a rod end is worn?

Movement or clicking at the ball when loaded, visible cracks, or a rough feel as the joint moves all point to wear. Replace the end if you find play. Do not reuse an end that has play, since it can separate under load.

Should the jam nut be replaced with the rod end?

Check the jam nut for thread wear and cracks, and replace it if it looks damaged. Reuse only nuts that tighten cleanly onto the threads. A new jam nut helps keep the adjustment locked after the rod end is set.
