Overview

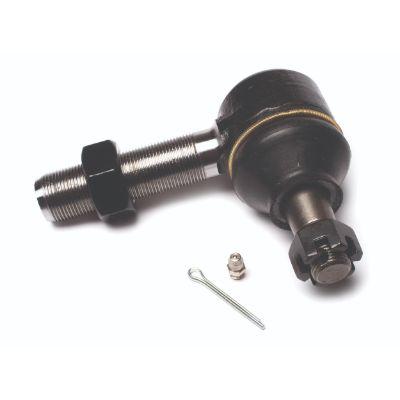

The TeraFlex heavy-duty tie rod end 4920202 (TER4920202) is a right-hand thread, large-taper tie rod end with a 7/8 inch x 18 TPI thread for the Jeep Wrangler TJ and LJ. It is supplied individually.
TeraFlex built its heavy-duty ends around a one-ton joint end, in a stock Jeep taper or a large one-ton taper (standard Dana 60). The large taper fits the bigger 60-type knuckles used in TeraFlex’s HD axle line.
Because TeraFlex also makes a stock-taper version and a left-hand thread version, the taper and the thread direction are the points to check before choosing this part.
Key features
- One-ton joint end
- Right-hand thread
- Large taper
- 7/8 inch x 18 TPI
- Supplied individually
Signs of tie rod wear
A tie rod end that is worn often shows up as play in the steering, where the wheel moves before the front tires respond. Uneven or feathered tire wear and a steering wheel that wanders can also point to a worn end. These signs develop slowly, so routine inspection catches them before the joint fails.
Tie rod ends are usually replaced with the alignment checked afterward, and they are often serviced alongside ball joints and drag link ends. Inspect the boot for tears and grease leakage during each service, since dirt in the joint speeds wear. Replacing an end before it fails completely keeps the steering safe on the road.
- Feel for play with the wheel turned
- Watch for feathered tire wear
- Inspect boots for tears at each service
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | TER4920202 |
| Thread direction | Right hand |
| Thread size | 7/8 inch x 18 TPI |
| Taper | Large |
| Quantity | One |
Vehicle fitment
Fitment covers the 1997-2006 Jeep Wrangler TJ and 2004-2006 Wrangler LJ.
Large taper ends fit Dana 60 type knuckles, not stock Dana 30 knuckle holes. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One tie rod end.
