PSC Steering Extreme Duty Tie Rod Link Kit for Double Ended Steering Cylinders – TR120XD

PSC Steering

Shop PSC Steering Tie Rod Ends on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • PSC Steering TR120XD extreme duty tie rod link kit for double ended steering cylinders
  • Uses 7/8-inch rod ends and is built stronger than the TR120HD link kit
  • Makes building links to PSC double ended steering assist cylinders easier on most full hydraulic systems
  • Universal fit; no vehicle named

Description

Overview

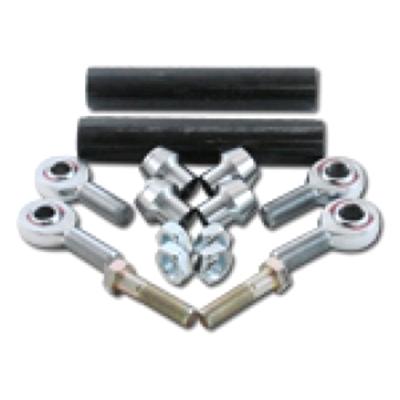

The PSC Steering TR120XD is an extreme duty tie rod link kit for building links to a PSC Double Ended Steering Assist Cylinder. It is intended for most Full Hydraulic Steering System installations.

The TR120XD is an extreme duty link kit with 7/8-inch rod ends, built to be stronger than the TR120HD link kit. It is universal fit, so confirm the cylinder and steering system match before building links.

Key features

  • Extreme duty construction, built to be stronger than the TR120HD
  • 7/8″ rod ends
  • Designed for building links to PSC double ended steering assist cylinders
  • Intended for most full hydraulic steering system installations

Link building and alignment

Tie rod links on a hydraulic steering setup connect the steering cylinder to the steering knuckle or linkage. The length of each link affects toe, steering centering and the range the cylinder can travel, so building them is a matter of setting geometry rather than just bolting parts together. Measure carefully and work in small adjustments.

Rod ends wear over time, showing play, clicking or uneven wear on the boot. Inspect them during each alignment check and after rough trail use, since a worn rod end can change the setup and make the steering feel loose. Replace worn rod ends in pairs so both sides stay matched.

After assembly, confirm the cylinder has full travel without binding at the stops, and check the jam nuts and rod end threads. Recheck alignment after the first drive, because links can settle as the parts seat. Clearance around tires and brake lines should also be checked before the vehicle is used off road.

Specifications

Brand PSC Steering
Part number TR120XD
Rod end size 7/8″
Compatible cylinder PSC Double Ended Steering Assist Cylinder
System Full Hydraulic Steering System
Fitment Universal fit

Vehicle fitment

No vehicle is named for this kit. Its use depends on whether your steering uses a full hydraulic system with a PSC double ended cylinder, so the cylinder type is the key check.

It is for use with double ended steering cylinders, so confirm your cylinder type before building links.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Link length is set during assembly to suit your steering geometry, so check steering alignment and clearance after the links are built and installed.

What’s included

The PSC double ended steering assist cylinder is needed to complete the links and is not in the kit.

Not included: the PSC double ended steering assist cylinder that the links connect to.

Questions & Answers

What does the PSC Steering TR120XD do?

It is an extreme duty tie rod link kit for building links to a PSC Double Ended Steering Assist Cylinder. It makes that link building easier on most Full Hydraulic Steering System installations.

Is the TR120XD stronger than the TR120HD?

Yes. The TR120XD is built stronger than the TR120HD link kit and uses 7/8-inch rod ends. Compare the load ratings of both kits before choosing between them.

Will the TR120XD work with my vehicle?

It is universal fit. Confirm your steering uses a full hydraulic system with a PSC double ended cylinder, and confirm your vehicle's year, model and trim before ordering.

What is the part number of this kit?

The part number is TR120XD from PSC Steering. Use it when comparing PSC tie rod link kits, and confirm the 7/8 inch rod end size against your existing setup.

Should the tie rod links be re-checked after building them?

Yes. Recheck the jam nuts, rod end threads and cylinder travel after the first drive. Look for binding at the stops, and confirm the links have clearance from tires and lines. Alignment should be checked again once the links have settled.

Find it on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Shop PSC Steering Tie Rod Ends on Amazon
