  • Falcon Series 3.3 Fast Adjust piggyback shock for 3 to 4.5 inch lift on Wrangler JK
  • Fits 2007–2018 Jeep Wrangler JK two-door models
  • Corner-specific piggyback reservoir for front and rear
  • Horizontal front reservoir for tire clearance during articulation
  • Outboard mounting for lifted vehicles with raised track bar brackets
  • Part number TER02-01-33-400-253

Description

Overview

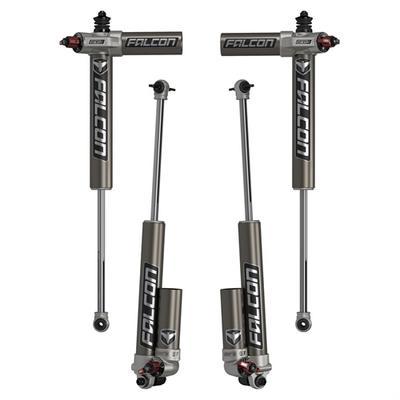

The TeraFlex Falcon Series 3.3 Fast Adjust piggyback shock, part number TER02-01-33-400-253, is a hydraulic reservoir shock for 2007–2018 Jeep Wrangler (JK) two-door models. It is built for a 3 to 4.5 inch lift and is a direct fit for those trucks.

The Falcon Series 3 piggyback shocks are corner-specific, so the front and rear units are built for their own positions rather than adapted from a universal design. The front shock uses a horizontal piggyback reservoir that increases clearance for large tires during articulation and turning. An offset upper stud moves the shock body away from the frame. The 3 to 4.5 inch lift range is the figure to match before ordering.

Key features

  • Piggyback reservoir design with separate oil and gas capacity
  • Front reservoir positioned horizontally for tire clearance
  • Offset upper stud on the front unit for body-to-frame clearance
  • Rear body and reservoir sit low to help protect the shaft from rock strikes
  • Outboard mounting for lifted vehicles with raised track bar brackets
  • Hydraulic shock design

Piggyback shock care

A piggyback shock keeps its reservoir separate from the main body, which gives the damping oil and gas more room to stay cool and steady during long off-road runs. Over time, the seals on both the body and the reservoir hose can wear, so look for oil on the outside of either part. Hose fittings and the reservoir mount should be checked at each service, since a loose mount can rub on the frame or tire.

Because the front reservoir sits horizontally, check its clearance to the tire and the inner fender at full steering lock and at full suspension travel. Keep the front and rear shocks matched in type and position, and when one shock is replaced, consider whether the other has similar wear. Shocks that bounce repeatedly over a single bump, or that feel soft on the highway, usually need inspection.

Specifications

Brand TeraFlex
Part number TER02-01-33-400-253
Product line Falcon Series 3.3 Fast Adjust
Shock type Piggyback reservoir
Lift height 3-4.5 in.
Operation Hydraulic
Fitment Direct fit

Vehicle fitment

The shock fits 2007–2018 Jeep Wrangler (JK) two-door models in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions. It is sized for a 3 to 4.5 inch lift.

The list covers the two-door JK only, so four-door Unlimited models and the 2018 and newer JL Wranglers are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The front unit’s offset upper stud and horizontal reservoir are part of the fit, so match the front and rear positions when installing. Check the track bar bracket on a lifted truck, because the outboard mounting is designed for raised brackets.

What’s included

One Falcon Series 3.3 Fast Adjust piggyback shock, part number TER02-01-33-400-253.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the TeraFlex TER02-01-33-400-253 fit a four-door Jeep Wrangler JK?

No. This shock fits two-door JK models only, so four-door Unlimited models are not included. Confirm your vehicle's year, model and trim before ordering.

What lift height is it built for?

It is built for a 3 to 4.5 inch lift on the Wrangler JK. The front reservoir is horizontal, which gives tire clearance during articulation and turning.

Is this a piggyback shock?

Yes. It has a piggyback reservoir that TeraFlex says increases oil and gas capacity. The rear body and reservoir sit at the bottom to protect the shaft from rocks.

Does it use a hydraulic design?

Yes. It is a hydraulic shock with a piggyback reservoir, and it is a direct fit for two-door Wrangler JK models. The front and rear units are built for their own positions, so keep each one in its matching corner.

How should a piggyback shock be cleaned and inspected?

Rinse mud from the body and reservoir with water after off-road use, then look for oil seepage at the seals and hose fittings. Replace any shock that leaks, makes noise at full travel, or no longer controls the body.
