SPOD 2009-2015 JK Wrangler 8 Circuit SE- Special Edition System with Red LEDs – 8-600-0915-LEDR

SPOD

Shop Jeep Wrangler JK Switch Pods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Eight-switch SourceSE system with red LED indicator lights
  • Fits 2009–2016 Jeep Wrangler JK, 2-door and 4-door
  • Programmable circuits rated 30 amps at 12.5 VDC
  • Low-voltage cutoff at 11.2 VDC with a two-minute delay
  • SPOD part 8-600-0915-LEDR, UPC 700007270481

Description

Overview

The SPOD 8-600-0915-LEDR is a programmable switch system with eight circuits and red indicator lights, for the 2009 to 2016 Jeep Wrangler JK. It covers the Rubicon, Sahara, Sport and Unlimited versions in 2-door and 4-door bodies.

The SourceSE is a digital, CAN-Bus controlled power module with a maximum capacity of 100 amps. Each switch runs one circuit rated at 30 amps at 12.5 VDC. The module is engineered and manufactured in the United States, and it can be expanded to 32 circuits by daisy chaining modules through its selectable set-up.

Key features

  • Eight switches with red LED indicator lights
  • Expandable to up to 32 circuits
  • Low-voltage cutoff with a specified cutoff of 11.2 VDC
  • Two-minute delay before the SourceSE shuts down on low voltage
  • Current-sensing MOSFETs replace accessory fuses and protect from 1.5 to 30 amps automatically
  • Self-healing fault protection under microprocessor control
  • Ignition-switched or high-beam operation on switches 1 and 2
  • Programmable for strobe or flash on each switch
  • Automatic shutdown when the switch panel is unplugged

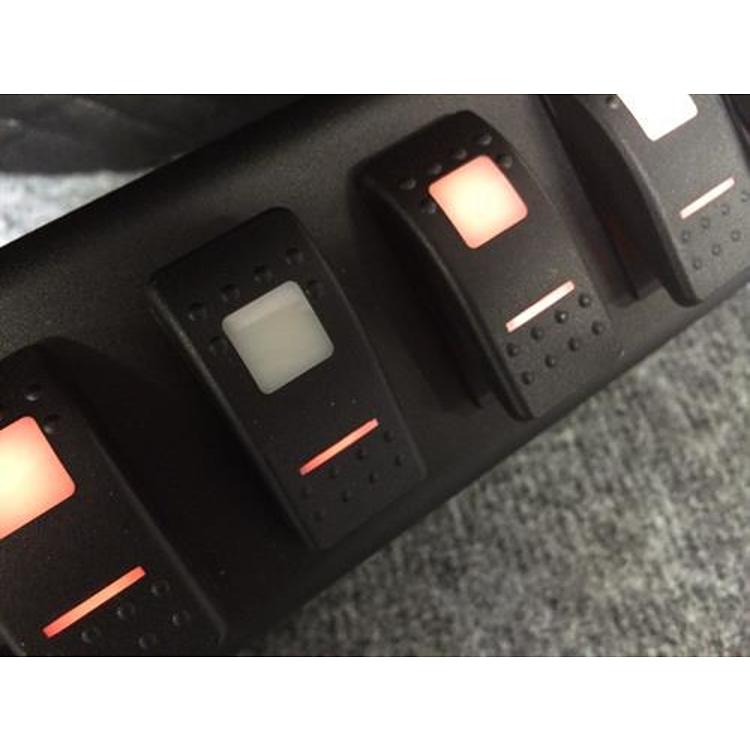

Daily use of a red-lit panel

Indicator lights do most of their work at night, when a clear red glow shows which circuit is active without glaring at the driver. Red is often easier on night vision than white, which can matter on dark trails. Check that each light responds when its switch is pressed, since a dead indicator usually points to a wiring or connection issue.

The panel is one part of a larger system, so daily use also depends on the relays, the module and the battery state. Shut off accessories you do not need before parking, and keep the Ethernet connection firm. A simple routine of checking lights and connections keeps the system dependable over time.

  • Test each indicator after installation
  • Check the Ethernet plug after rough trails
  • Turn off unused circuits before parking

Specifications

Brand SPOD
Part number 8-600-0915-LEDR
UPC 700007270481
Switches 8, red LED indicators
Circuit rating 30 amps at 12.5 VDC each
Maximum capacity 100 amps
Protection range 1.5 to 30 amps
Low-voltage cutoff 11.2 VDC, two-minute delay
Panel cable RJ-45 Ethernet, 10 feet standard

Vehicle fitment

It fits the 2009 to 2016 Jeep Wrangler (JK), with 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions, and the Unlimited versions of each, in 2-door and 4-door models.

Its coverage is limited to 2009 to 2016 JK models, so TJ and LJ Wrangler models are not part of this fitment. Compare your vehicle’s year, model and trim with this range before ordering.

Installation notes

The panel plugs into the SourceSE with an RJ-45 cable on each end, and the standard length is 10 feet. For switches 1 and 2 on ignition power, change the DIP switch setting and run a jumper wire to a fuse that is only live with the ignition on. The low-voltage protection can be turned off with the DIP switches.

What’s included

The kit includes the eight-switch red panel, the SourceSE module, the 10-foot Ethernet cable and OEM vehicle-specific installation hardware. The optional Bluetooth module is not included.

SKU: POD8-600-0915-LEDR Category:

Specification

Shipping weight 7.50 lbs
Package dimensions 12.00 × 12.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2009–201670th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the 8-600-0915-LEDR fit a 2010 Wrangler JK?

Yes. The JK is covered for 2009 to 2016, so a 2010 model falls within that range. The covered versions include Rubicon, Sahara, Sport and Unlimited, in 2-door and 4-door bodies.

What is the indicator color on this panel?

Red. This is the red LED version of the eight-switch SourceSE system, and it uses the same circuit ratings of 30 amps at 12.5 VDC per circuit.

Does the panel need a separate Bluetooth module?

No. The Bluetooth module is optional, and the system works without it. The shield receptacle on the SourceSE accepts that module if you add it later.

What should I check if the cutoff keeps shutting accessories off?

Check the battery charge and the connections to the battery first. A weak battery or a loose lead can trigger the low-voltage shutdown sooner than expected. Reduce the load on the system and recharge the battery before testing again.
