SPOD 2009-2015 JK Wrangler 8 Circuit SE- Special Edition System with Green LEDs – 8-600-0915-LEDG

SPOD

Shop Jeep Wrangler JK Switch Pods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2009-2016 Jeep Wrangler JK, 2-door and 4-door
  • 8 circuits, 30amps at 12.5 vdc each; 100 amp maximum
  • Expandable to up to 32 circuits

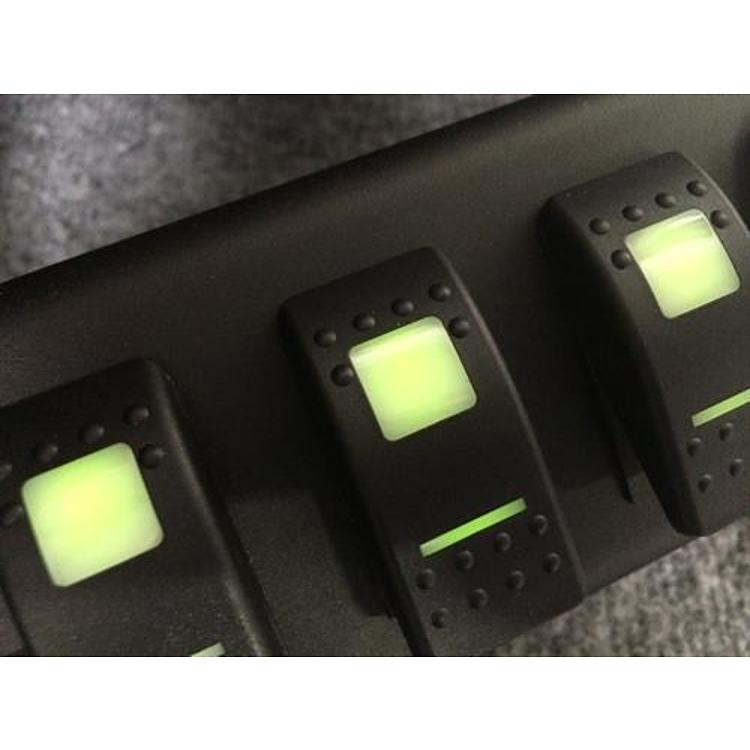

  • Green LED indicators; programmable strobe or flash

Description

Overview

The SPOD 8-600-0915-LEDG is an 8 circuit sPOD SourceSE Special Edition switching system with green LED indicator lights, for the 2009-2016 Jeep Wrangler JK, 2-door and 4-door. It replaces fuses and relays for added accessories with a digital CAN-Bus controlled system.

Each of the eight circuits is rated at 30amps at 12.5 vdc, with a maximum 100 amp capacity. The system can expand to up to 32 circuits, and the low voltage cutoff cuts out at 11.2 VDC after a two-minute delay. The cutoff can be turned off with DIP switches.

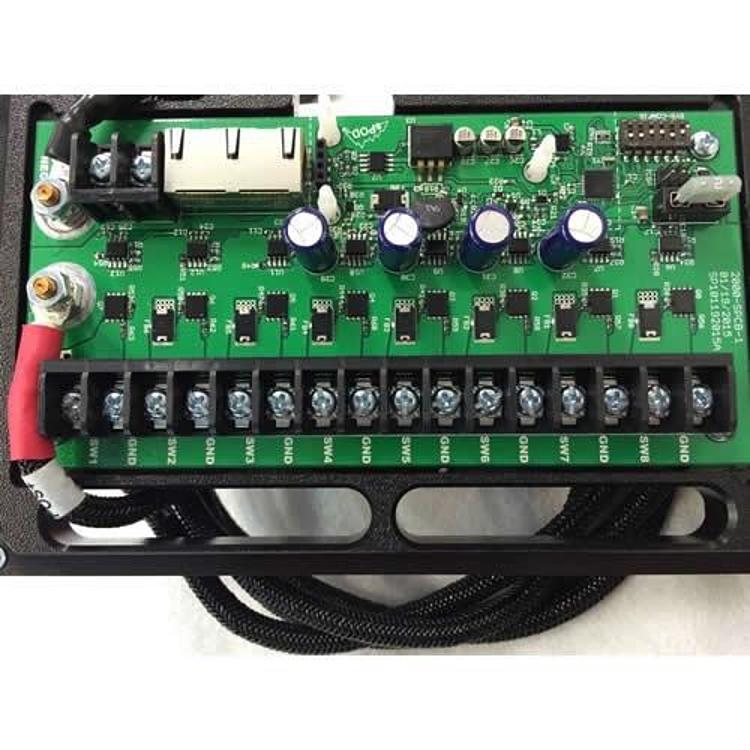

Fuses are replaced by current-sensing MOSFETs controlled by a microprocessor, with automatic protection from 1.5 amps to 30 amps. Switches 1 and 2 can be set as ignition switched circuits or high-beam activated circuits. The switch panel has 8 switches and connects with an Ethernet cable and RJ-45 plugs; the standard cable length is 10 feet.

Key features

  • Eight circuits rated at 30amps at 12.5 vdc each
  • Programmable digital CAN-Bus controlled system
  • Expandable to up to 32 circuits
  • Low voltage cutoff battery protection at 11.2 VDC
  • Each switch programmable for strobe or flash
  • Green LED indicator lights
  • Automatic shutdown when the panel is unplugged
  • Ignition switched or high-beam activated options on switches 1 and 2

Wiring and circuit protection

Electronic circuit protection changes how you plan an accessory installation. Without fuse choices for each output, the work shifts to matching the wire gauge and the accessory’s draw to the circuit. Use wiring rated for the load, keep connections clean and secure, and make sure each accessory has a solid ground path.

The low-voltage cutoff is the other safeguard to understand. It helps keep enough charge in the battery to start the vehicle, but it is not a substitute for planning how long accessories will run. Heavier loads deserve a switch you turn off when parked, and the panel is easiest to manage when its circuits are labeled clearly.

  • Use wire rated for each accessory’s load
  • Keep ground connections clean and tight
  • Label each circuit on the panel

Specifications

Brand SPOD
Part number 8-600-0915-LEDG
UPC 700007270451
Part type 8 circuit switching system (sPOD SourceSE Special Edition)
Circuits 8, each rated at 30amps at 12.5 vdc
Maximum capacity 100 amp
Expansion Up to 32 circuits
Low voltage cutoff 11.2 VDC with a two-minute delay
Automatic protection range 1.5 amps to 30 amps
Indicator color Green LED
Switch panel 8 switches; Ethernet cable with RJ-45 plugs
Standard cable length 10 feet
Fuse One ATM mini-style fuse for the low voltage cutoff
Manufacture United States

Vehicle fitment

The manufacturer fitment list for the SPOD 8-600-0915-LEDG includes:

  • 2009–2016 Jeep Wrangler (JK) (70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X)

It is made for the Jeep Wrangler JK from 2009 to 2016. Match your model year, model and trim to this range before ordering.

Installation notes

Disconnect the battery before working on any wiring, and fuse every circuit to suit the load it feeds.

Route wiring away from heat, sharp edges and moving parts, and protect every connection from moisture.

Check local regulations before using auxiliary lighting on public roads.

What’s included

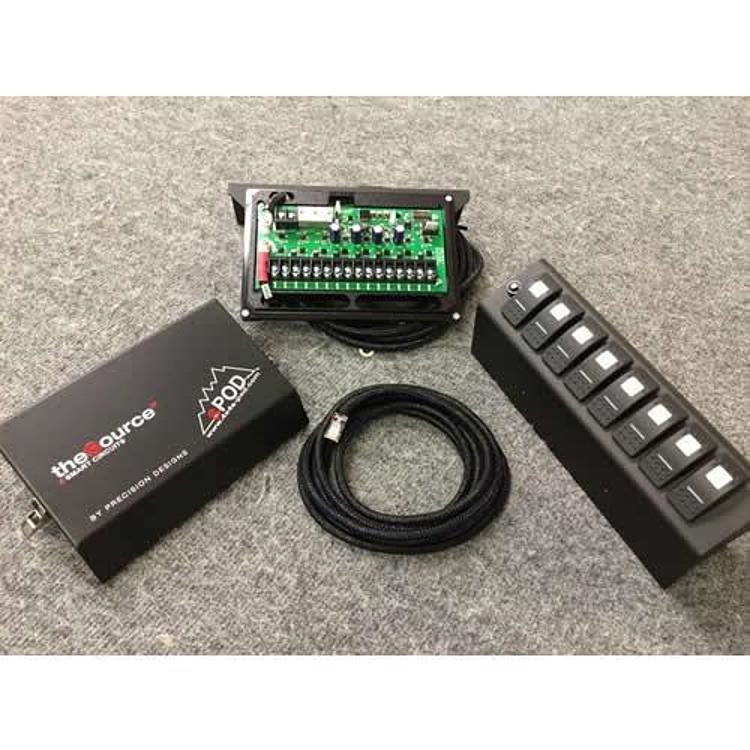

The kit includes the SourceSE control system, an 8 switch panel and an Ethernet cable with a standard length of 10 feet. Check the package contents against your installation before starting.

Not included: Accessories to be powered, the optional Bluetooth module and the touchscreen.

SKU: POD8-600-0915-LEDG Category:

Specification

Shipping weight 7.50 lbs
Package dimensions 12.00 × 12.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2009–201670th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeep does the SPOD 8-600-0915-LEDG fit?

It fits the 2009-2016 Jeep Wrangler JK, 2-door and 4-door. Confirm fit for your vehicle's year, model and trim before ordering.

How many circuits does this SPOD system have?

It has eight circuits, each rated at 30amps at 12.5 vdc, with a maximum 100 amp capacity. It is expandable to up to 32 circuits.

Does the SPOD SourceSE protect the battery?

Yes. A low voltage cutoff circuit shuts the SourceSE down at 11.2 VDC after a two-minute delay, and it can be turned off with the DIP switches.

Does the SPOD system use fuses for each circuit?

No. Fuses are replaced for all accessory outputs by current-sensing MOSFETs controlled by a microprocessor. Each circuit is protected automatically from 1.5 amps to 30 amps, so no fuse rating needs to be chosen.

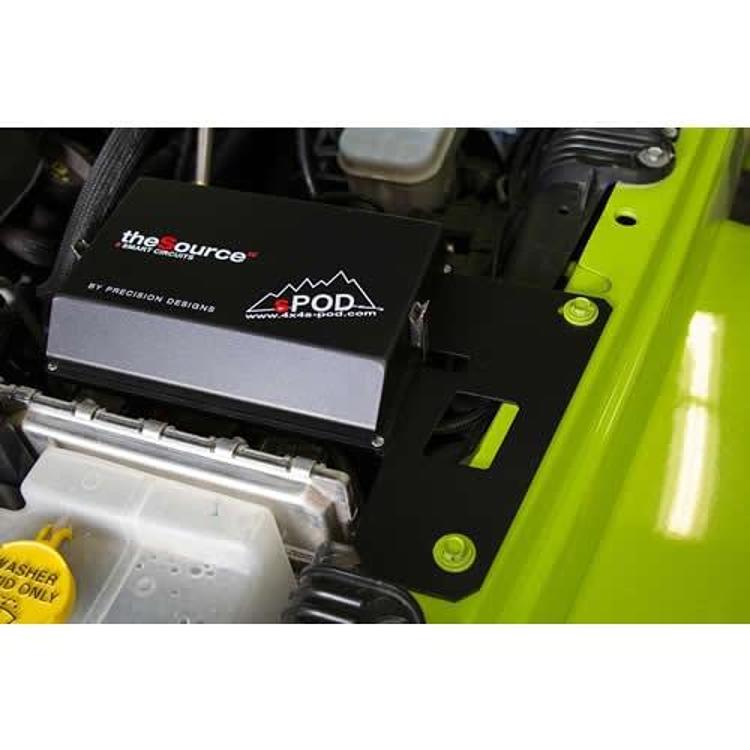

How should the SourceSE be mounted?

Mount the module where air can circulate and it is protected from water, heat and direct impact. Keep it clear of moving parts and away from hot exhaust components. Secure it firmly so the connections do not put strain on the wiring.
