SPOD 2003-2006 TJ/LJ Wrangler 6 Switch System – 500-03

SPOD

Shop Jeep Wrangler TJ Switch Pods on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Six-switch power distribution kit for 2003–2006 Jeep Wrangler TJ and LJ
  • Six 40 amp plug-in relays and six fuses, with 15 and 30 amp ratings
  • Integrated low-voltage cutoff at 10.6 VDC, cut-back at 12.4 VDC
  • Two red, two amber and two green switches included
  • SPOD part 500-03, UPC 700006892219

Description

Overview

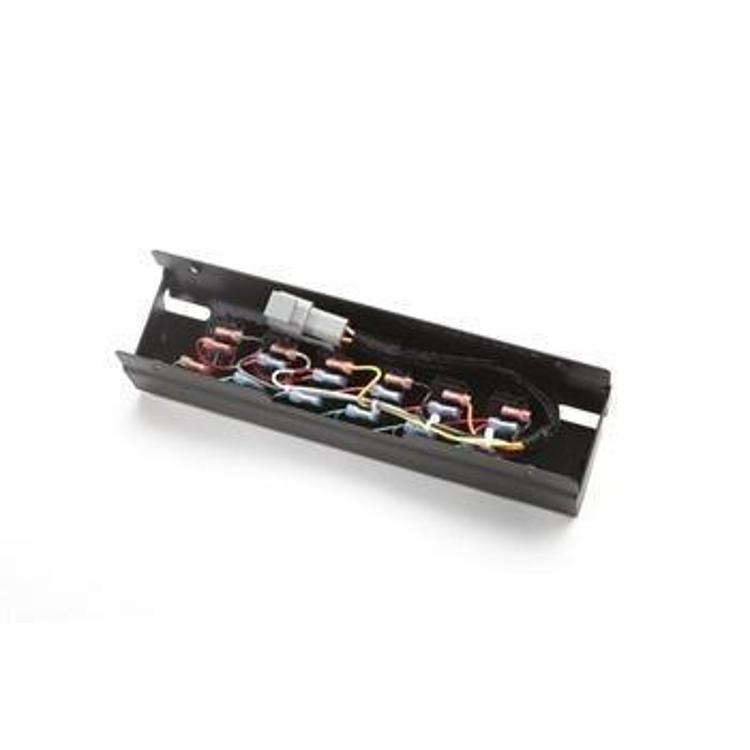

The SPOD 2003–2006 TJ/LJ Wrangler 6 Switch System, part 500-03, is a complete plug-and-play power distribution kit with six switches for the 2003 to 2006 Jeep Wrangler TJ and LJ. It combines a fused and relayed power block with a six-switch panel, so each accessory you add runs on its own protected circuit without a separate relay build for each one.

The block carries a 12-position terminal block for attaching accessories, six plug-in Bosch-style cube relays rated SPST 40 amp, and six ATO fuses, three of them 15 amp and three 30 amp. An integrated low-voltage cutoff watches battery voltage and protects the starting charge, which matters when an accessory has been left switched on.

Key features

  • Six switches: two red, two amber and two green
  • Six plug-in Bosch-style cube relays, SPST 40 amp
  • Six ATO fuses: three 15 amp and three 30 amp supplied
  • Six diodes that guard sensitive accessories, such as LED lights, from field collapse
  • 12-position terminal block for accessory attachment
  • Inline 50 amp manual-reset circuit breaker
  • Low-voltage cutoff at 10.6 VDC that cuts back in at 12.4 VDC
  • Pre-wired and ready to install

Wiring the accessories

A power distribution system centralizes accessory wiring, so each accessory runs through its own fused relay rather than tapping the vehicle’s wiring. Plan the layout before mounting the block: group accessories by switch color, keep high-draw items on the heavier fuses, and leave room for the terminal block and breaker to be reached.

Because the system includes a low-voltage cutoff, it can protect the starting battery when accessories are left on. Keep the battery terminals clean and tight, and check the power leads for chafing where they pass through the firewall or frame. Diodes help with LED stability, but flicker can also come from poor grounds, so check those first.

  • Route leads away from moving parts and heat
  • Use a solid ground connection for every accessory

Specifications

Brand SPOD
Part number 500-03
UPC 700006892219
Switches Two red, two amber, two green
Relays Six plug-in Bosch-style cube, SPST 40 amp
Fuses Six ATO: three 15 amp, three 30 amp
Circuit breaker Inline 50 amp, manual reset
Low-voltage cutoff Off at 10.6 VDC, back on at 12.4 VDC
Terminal block 12 position
Power leads 8 gauge, crimped and soldered terminals

Vehicle fitment

This system fits the 2003 to 2006 Jeep Wrangler TJ. It also fits the LJ for its 2004 to 2006 production years.

Earlier TJ years and all Wrangler JK models are outside this system’s stated years. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The system is pre-wired, and its 8 gauge power leads connect to the battery through crimped and soldered terminals. The fuse that runs the low-voltage cutoff can be removed if you need to bypass the LVCO function.

What’s included

The kit contains the 12-position power block, six relays, six fuses, the 50 amp breaker, six diodes, the 8 gauge battery leads and the six switches: two red, two amber and two green.

SKU: POD500-03 Category:

Specification

Shipping weight 8.00 lbs
Package dimensions 32.00 × 11.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits2003–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the SPOD 500-03 fit a 2004 Wrangler LJ?

Yes. The LJ fits the 2004 to 2006 production years, so a 2004 model is covered. The TJ is covered for 2003 to 2006 as well.

What does the low-voltage cutoff do?

It cuts off at 10.6 VDC and cuts back in at 12.4 VDC. That leaves enough charge in the battery to start the vehicle, even if an accessory was left on, and the fuse for it can be removed to bypass it.

How many switches are included?

Six: two red, two amber and two green switches. They control the six relay circuits in the power block, one switch for each circuit.

Do I need a separate relay for each accessory?

No. The six relays in the power block each control one circuit, so each switch can run its own accessory. Add a separate relay only if an accessory needs a circuit beyond those six.

How do I keep the battery protected when accessories are on?

The cutoff turns the power off when battery voltage drops and restores it at a higher level. Switch accessories off when the engine is stopped, and avoid long idle periods with many accessories running.
